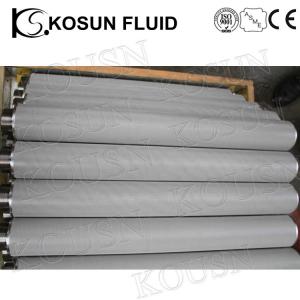

Introduction of the candle filter

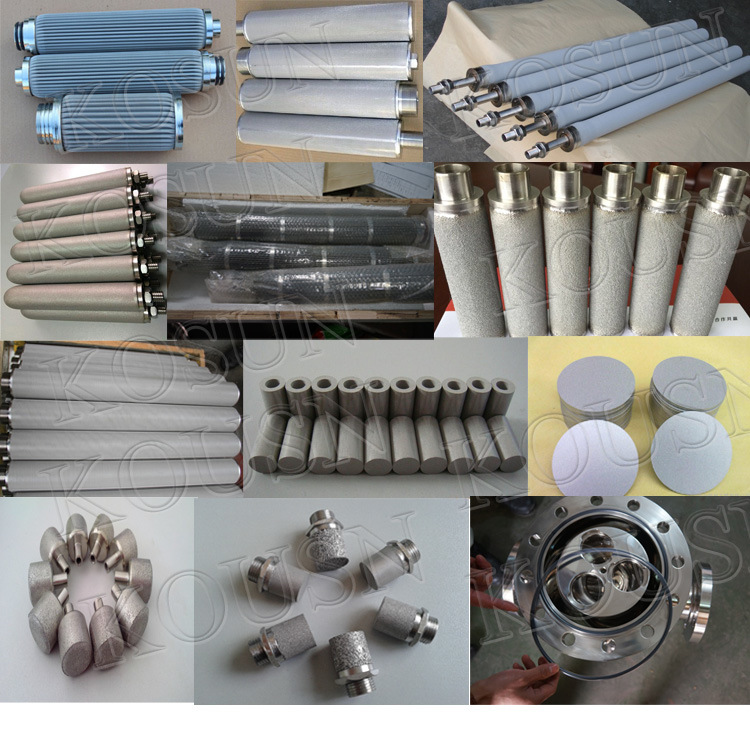

Stainless steel candle filter is made by quality metal powder and metal mesh ,it have excellent performance of gas filtration and liquid filtration , All shapes are available
The main technical parameters of the candle filter

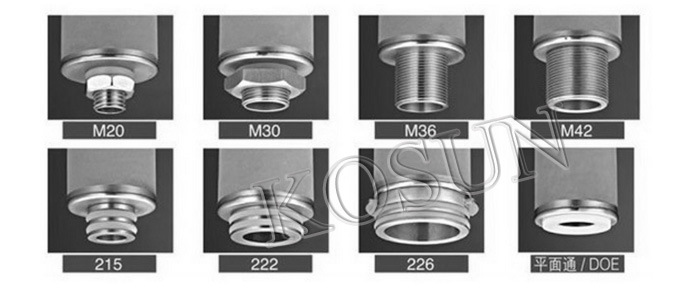

the interface in the form: 222,226,215, M36, M28, M24, M22, M20 threaded interface
| stainless steel powder sintered filter cartridge | stainless steel powder sintered filter plate | ||
| Diameter: | Ф20mm -Ф200mm | Diameter: | Ф5mm-Ф300mm |
| Length: | L50-L1200 (can be customized on request) | Thickness: | 0.5mm-10mm |
| Thickness: | 2mm or more | Pore size: | 0.5um-70um |
| Pore size | 0.5um-70um | Material: | Stainless steel |
| Porosity | 20-50% | Porosity | 20-50% |
| Permeability | 3-1300m3 / m3hkPa | Permeability | 3-1300m3 / m3hkPa |
| Temperature resistance | 500 Deg C | Temperature resistance | 500 Deg C |
| Maximum working pressure | 0.6Mpa | Maximum working pressure | 0.6Mpa |
Applicable Typical Industries and Liquids
1.Applicable industries: Water treatment, steel, pulp and paper, mining, petro-chemical, machining, municipal, irrigation etc.
2.Typical applicable liquids: Groundwater, seawater, lake, reservoir water, pond water, cooling water circulation, frozen water, high and low voltage gush to drench water, squirt water, heat water, seal water, bearing cooling water, oil wells note water, process of circulating water, machining coolant, cleaning agents, cleaning water, etc.
3.Filtration function: Remove large particles, purify liquids, protect critical equipment
4.Filtration type: Back-flushing filter, automatic continuously online filtration
5.Steam filtration,Strong polar solvent filtration High viscosity liquid decarburization filtration
Strong corrosive liquid, gas purification filter ;Petrochemical industry in addition to impurities purification filter ;High temperature and pressure conditions, liquid, gas purification filter;
