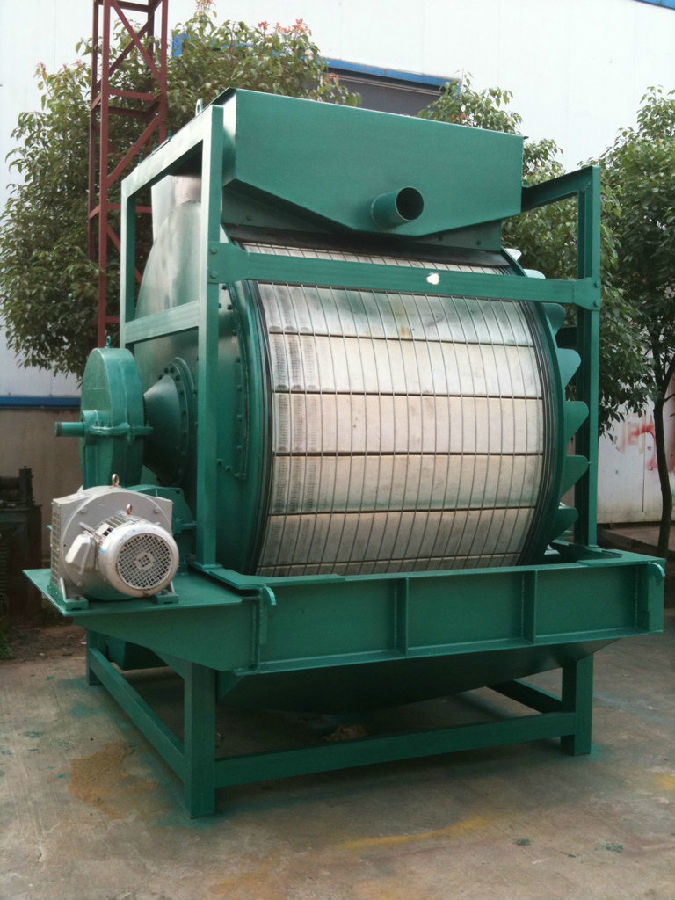

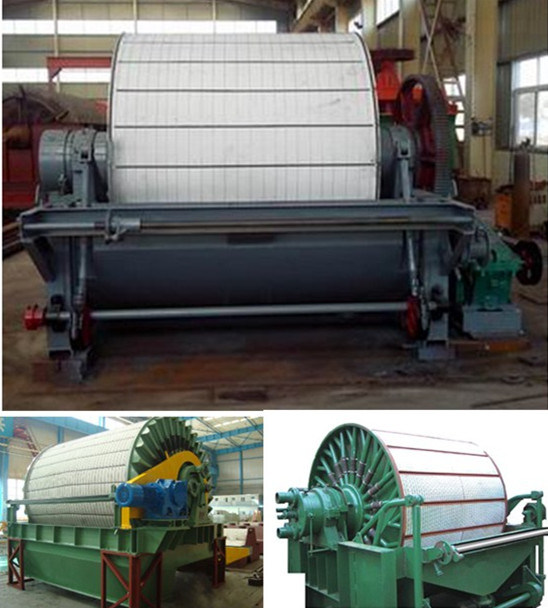

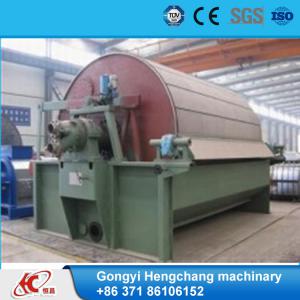

Product Application Of Metallurgy Rotary Vacuum Drum Filter Equipment From Hengchang machinery
Vacuum filter is the solid-liquid separation equipment driven by vacuum negative pressure with the advantages of high filtration efficiency, production capacity, washing effect, low cake moisture, flexible operation, low maintenance cost and so on. Especially for the magnetic minerals dehydration, this machine is 3 times bigger than other filter capacity. Widely used in metallurgy, mining, chemical, paper, food, pharmaceutical, environmental protection and other areas.
Parameters Of Metallurgy Rotary Vacuum Drum Filter Equipment From Hengchang machinery
| model | GW-3 | GW-5 | GW-8 | GW-10 | GW-12 | GW-20 | GW-30 | GW-40 | GW-50 |
| Filter area (m2) | 3 | 5 | 8 | 10 | 12 | 20 | 30 | 40 | |
| Cylinder size (mm) | φ1068× 1060 | φ1600× 1060 | φ2000× 1500 | φ2000× 1750 | φ2000× 2000 | φ2500× 2650 | φ3350× 3000 | φ3350× 4000 | φ3350× 5000 |
| cylinder speed (r/min) | 0.156- 1.56 | 0.156- 1.56 | 0.1-0.6 | 0.1- 0.6 | 0.1- 0.6 | 0.14- 0.54 | 0.12- 0.56 | 0.12- 0.56 | 0.12- 0.56 |
| Vacuum pressure(KPa) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Swept volume (m3/min.m2) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Blast pressure (Kpa) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 |
| blast volume (m3/min.m2) | 0.2- 0.4 | 0.2- 0.4 | 0.2- 0.4 | 0.2- 0.4 | 0.2- 0.4 | 0.2- 0.4 | 0.2 -0.4 | 0.2- 0.4 | 0.2- 0.4 |
| capacity (t/h) | 0.8-1.5 | 1.6-2.4 | 2.8-3.6 | 3-4 | 3-5 | 3-8 | 4.5-12 | 6-16 | 7.5-20 |
| cylinder motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3 | 4 | 4 | 5.5 |
| Stirring motor (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 |
| weight (kg) | 2635 | 2850 | 5455 | 6317 | 6365 | 10600 | 17200 | 19500 | 21500 |
Main Features Of Metallurgy Rotary Vacuum Drum Filter Equipment From Hengchang machinery
High vacuum degree, low concentration of filtrate and high filter efficiency Small occupied area, low power consumption. Can be recycled to use., reduce the emission Highly automatic, reduce labor cost Easy installation and maintenance Reliable structure and long lifespan.
Working principle of Metallurgy Rotary Vacuum Drum Filter Equipment From Hengchang machinery
When working, the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.

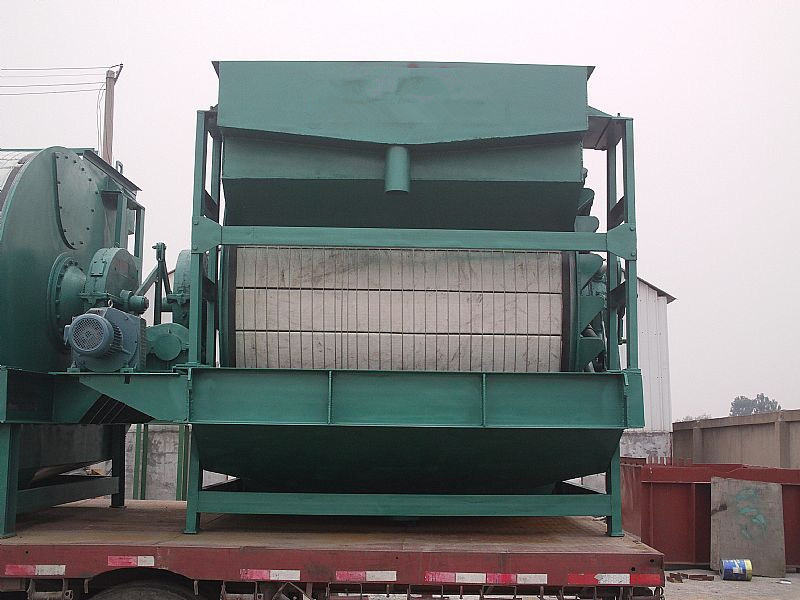

Delivery Of Metallurgy Rotary Vacuum Drum Filter Equipment From Hengchang machinery

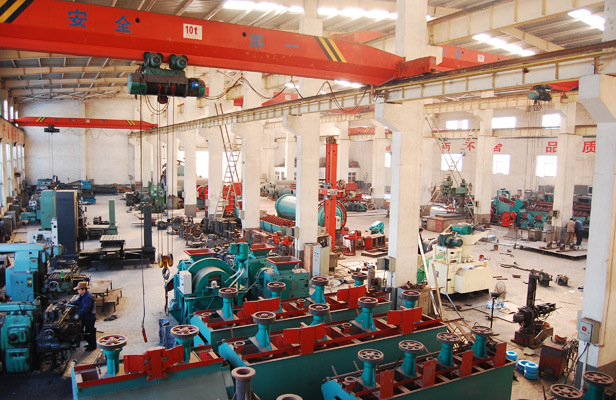

Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry
