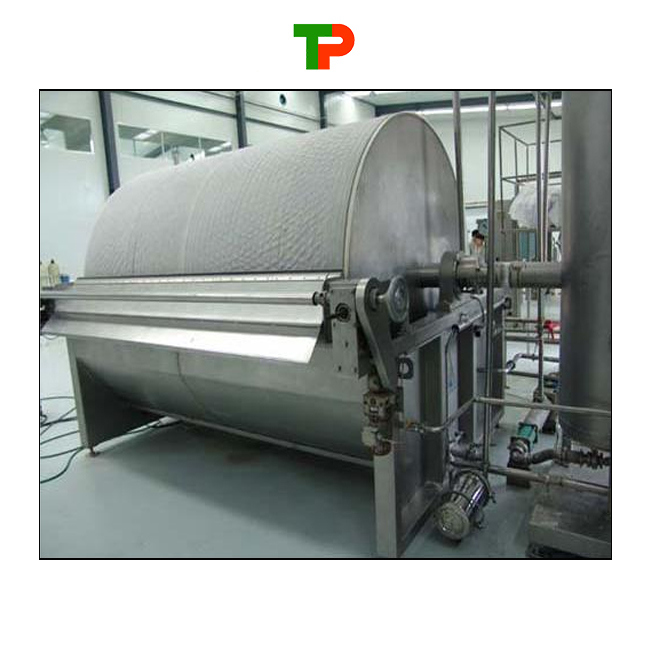

Rotary-Drum Vacuum Filter for Fish Farm

The Rotary Drum Filter for waste water  is a mechanical, self-cleaning filter that works with gravity to prevent particle fragmentation. The filtering process of Drum Screen Filter is very simple, yet very efficient and reliable due to its overal

Technical Feature

  • Chengdu, China
  • 5000 Piece/Year
  • L/C, T/T
  • Waste Water Filter
  • Environmental Protection, Chemical Industry
  • Electric power
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~600

PRIMARY PARAMETERS

Trademark
TOP
Transport Package
Customized
Specification
Customized
Origin
Made in China

DETAIL DESCRIPTION

Rotary-Drum Vacuum Filter for Fish Farm

The Rotary Drum Filter for waste water  is a mechanical, self-cleaning filter that works with gravity to prevent particle fragmentation. The filtering process of Drum Screen Filter is very simple, yet very efficient and reliable due to its overall design and operation. Drum Filters are designed with few moving parts to ensure a long life with low operating/maintenance cost.

The polluted water inputs the drum filter through the water inlet pipes, flows into the boxes, and then into the interior of the filtering drum. The filtering drum is covered with a V-slot micro mesh, all particles bigger than the filter mesh will stay inside the drum filter.

Working principle
The waste particles will slowly block the filter mesh, makes it hard for the water through the mesh, which leads to a lower water level in the clear water chamber of the filter. Once the water level dropped to a minimum level-indicated by sensor-the controller starts the washing process. The process contains the rotation of the filter drum by a geared motor and multiple nozzles spraying water with high pressure to the outside of the filter mesh. The waste clogged the filter mesh is flushed into the waste tray, and then leaves the filter by wastewater discharge through waste outlet.

Specifications

Model

TP-600

TP-800

TP-1000

TP-1200

TP-1400

TP-1600

TP-1800

TP-2000

Drum Diameter

600

800

1000

1200

1400

1600

1800

2000

Mesh length

650

850

1000

1200

1400

1500

1650

1850

Input tube OD

159

219

219

273

273

325

325

325

High water lvl H3

400

520

670

820

950

1100

1250

1350

Install angle

35°

Channel depth H2

600-800

700-1000

900-1200

1100-1400

1200-1600

1400-1800

1600-2000

1800-2100

Waste outlet H1

1000mm

Min install lengthA

3000

3300

3600

4000

4300

4700

5000

5300

Max water treat m³/h

Slot mm

0.5

80

135

235

315

450

585

745

920

1

125

215

370

505

720

950

1205

1495

2

190

330

555

765

1095

1440

1830

2260

3

230

400

680

935

1340

1760

2235

2755

4

235

430

720

1010

1440

2050

2700

3340

5

250

465

795

1105

1575

2200

2935

3600
