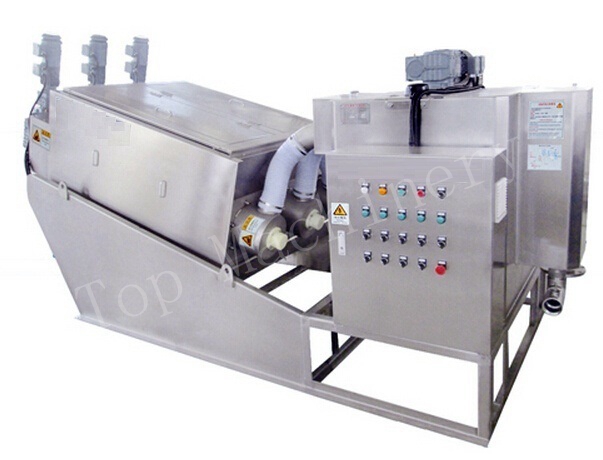

TPMY Volute screw sludge dewatering machine

Product introductions:

Volute Sludge Dewatering Machine( Hereinafter referred as TPML ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. TPMY using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

 Features:

1,Widely Use
1)Can be widely used in municipal sewage, food, slaughtering breeding, printing and dyeing, oil chemical industry, paper making, leather, pharmaceutical and other industries of sludge dewatering;

2)Exclusive pre-concentration design, applicable sludge concentration of 2000mg/L-50000mg/L;

3)Due to the innovation of the structure design, it is highly suitable to various high and low concentration sludge, most especially for the oily ones.

2,Clog-free
Due to rotation of helical axis, the moving rings begin detaching from the fixed rings while continuously starting the self-cleaning process. As a result, the ubiquitous clogging is avoided. Therefore, it can handle oily sludge without any trouble while separating the water from the sludge easily. In addition, there is no need to add large quantity of flushing water and there is no odor and no secondary pollution during the dewatering process.

3,Fully Automatic Control
There are no easily blocked pieces such as belt and filtration pore in Multi-Disk Screw Press. Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.

4, No secondary pollution

5,Promote the phosphorus removal capability

6,Suit for Oily Sludge
The self-cleaning mechanism and stainless steel structure enables DL to be ideal to dewater oily sludge.

7,Save Running Cost

8, Lightweight and durable


9,Decrease Project Investment

1.Suitable for sludge dewatering of high/low consistency. When deal with low consistency sludge (2000mg/L), there is no need to build a thickening tank, storage pool. Reduce the cost and the release of phosphorus and Anaerobic stink.

2.There is no need to worry about jam up. Reduce the cleaning water consumption.

3.The dewatering screw press electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.

4.The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.

5.Automatically working for 24 hours, reducing the labor strength of workers.

6.The slow running speed of screw shaft reduces the power consumption and noise.

7.Dewatering screw press made with stainless steel, extending the service life.

8.Dewatering screw press convenient for daily maintenance.

Application:

n  Municipal water and wastewater treatment plants

n  Agricultural/fishery community wastewater treatment plants

n  Industrial waste treatment plants

n  Food/beverage production plants

n  Dairy farming/Meat processing plants

n  Chemicals manufacturing plants

n  Machinery manufacturing/Metal processing plants

n  Laundry wastewater

n  Other plants requiring dewatering machine (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.)

Working principle:

The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.

Technical parameters:
