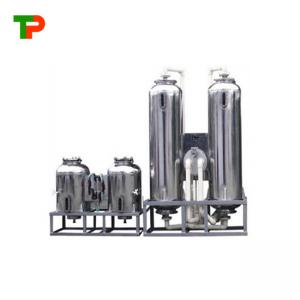

Product introductions:
TPI sodium ion exchanger is using strong acidic resin can absorb the calcium in the water,the characteristics of magnesium ions to soften water quality, Using salt aqueous solution can make its regenerative recovery principle designed
Features:
1. system center used planar two patents of multi-way valve sealing technology, the body use PVC engineering plastics, corrosion resistance,long life, stable and reliable operation;
2. full automatic control: Automatic control adopts intelligent microcomputer and PLC program control, it can realize single or dual mode control time and flow regeneration. In addition to salt, full automatic working cycle process.
3. Equipment in a variety of forms: A single tank valve intermittent water production; Double tank single valve, use a case and a prepare, continuous water making; And tank valve combination, realize the intermittent or continuous water production, meet different occasions where process water;
4. Adopted floating bed countercurrent regeneration process, the output is big, processing ability, good water quality;
5. Equipment structure is compact, covers an area of less, simple installation, through in and out of the water pipes, turn on the power supply can be switched on water ;
6. Exchange of tank structure, technology and unique design; can adapt to the wide scope of water quality, high level of softening hardness of water quality(15 or less tendency for L water hardness) reached the national standard; Resin does not need to scrub in vitro, reduced the operation trouble and loss of resin;
7. Regeneration into salt, USES the sealing pressure type, pump pressure, salt pond, salt box adopted for salt, a variety of forms, convenient supplement.
Technical parameters:
Model No. | Capacity | Nominal Recovery | Nominal Salt Rejection | Working Pressure | Operating Temperature | Voltage | Weight(kg) | Size(mm*mm) |
TPI-2 | 2T/H | 65-75% | 99.60% | 0.4mpa | 5-50℃ (Design Temperature 25℃) | 220V/380V/460V, 50-60Hz | 300 | Φ400×1850 |
TPI-4 | 4T/H | 450 | Φ500×1850 | |||||
TPI-6 | 6T/H | 480 | Φ600×1850 | |||||
TPI-8 | 8T/H | 580 | Φ600×2300 | |||||
TPI-10 | 10T/H | 600 | Φ800×1850 | |||||
TPI-12 | 12T/H | 620 | Φ800×2300 | |||||
TPI-14 | 14T/H | 750 | Φ1000×2100 | |||||
TPI-16 | 16T/H | 800 | Φ1200×2300 |
*Above parameters only for reference, customized available for detailed requirements
Packaging & Shipping
Company Information
Top Machinery is located in Chengdu, being with convenient traffic, developed communication, vast territory and a good space for development. Top’s a professional manufacturer and exporter of all kind of filters and its elements. Our products have exported to over 30 countries with very good feedback. The products mainly including automatic washing filter, backwashing filter, drum filter, ion exchanger, and elements like Johnson screen mesh , V shaped wire welded screen pipe, sieve plate, screen basket, sieve bend, vibrating screen, water nozzle, hub and header laterals, resin trap, etc.
Our idea is "customer is the first". It means "saving money for you, providing high-quality products for you, five star service for you". We sincerely hope to establish cooperation with you. We sincerely welcome all clients to contact us for details.
