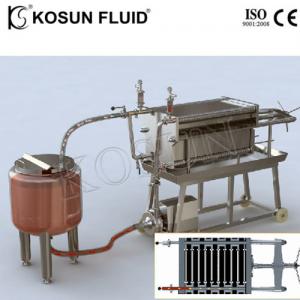

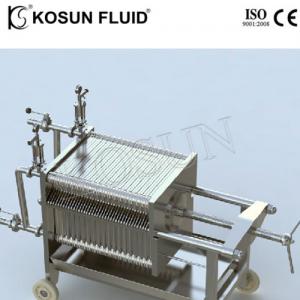

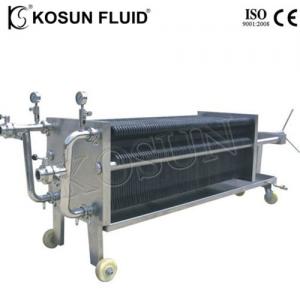

Introduction of the Stainless steel laboratory beer wine oil plate and frame membrane filter press:
Stainless steel plate frame filter press, the filter board, filter frame are all stainless steel SUS304 material, seal material is food grade white silicone rubber,Operate temperature is ≤ 140 ºC.
The surface of the plate and frame is smooth, the cleaning thoroughly does not leave the dead corner. The filter press can includes frame type stainless steel frame with feed sanitary pump type and thrust board.
Operate pressure :0-4.0 barg
Operate temperature :0-140 DegC
Advantages of the filter press :
- Plate filter press: flat between the plate and frame, suitable for clamped thick filter paperboard, such as supporting plate, pre filter plate, fine filter plate, bactericidal plate with thickness between 3-5mm, etc.
3)Stainless steel plate frame filter Press machine is suitable for many kinds of special filter plates (oil beer, wine fine filter, clarification plate, bacteriostasis board, support board, coarse filter board etc.) and filter with filter aids
Application of Introduction of the Stainless steel laboratory beer wine oil plate and frame membrane filter press:
1.alcohol (fruit wine, health care wine, yellow rice wine, beer, white wine, etc.) 2.Pharmaceutical solution (traditional Chinese medicine extract and other 3.pharmaceutical filters, Drinks, soy sauce, vinegar, honey, syrup,
4.All kinds of oils (edible oils, industrial oils, Chemical products, etc.
Different effects of coarse filtration, fine filtration, microfiltration and bacteriostasis can be achieved by selecting filter materials with different regular precision.
Models of filter press :
| Model | Number of filter plates | Filter Area m2 | Recommend Filter capacity m3/h water | Outer plate size mm |
| KS400NN-31 | 31 | 4 | 3-4 | 400x400 |
| KS400NN-41 | 41 | 5.5 | 4-6 | 400x400 |
| KS400NN-61 | 61 | 8 | 6-8 | 400x400 |
| KS400NN-71 | 71 | 9.5 | 8-10 | 400x400 |
| KS400NN-101 | 101 | 13.5 | 10-13 | 400x400 |
