Automatic screw filter press sludge dehydrator machine

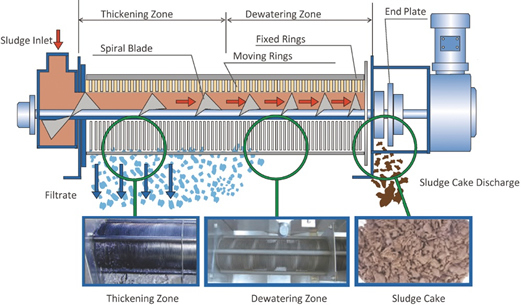

Volute Sludge Dewatering Machine( Hereinafter referred as TPDL ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. TPMY using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
Main Feature:
1. Not clog: Processing the fats & oil and fiber sludge perfectly.
2. Full automatic: Combining with the auto control system, the machine can operate 24 hours unmanned.
3. Saving Running cost: Water-saving, Power-saving, Drugs-saving etc..
4. No secondary pollution: The screw shaft rotational speed is 2-4 r/min, so there is no noise, vibration and smell.
5. Lightweight and durable: Mechanical dewatering extrusion without rollers and other large body. Stainless steel ensure long service time.
6. Decrease project investment: Integrating with auto-control cabinet, sludge thickening & dewatering body liquid collection tank.
Specification:
This is a series machine with several models according the flow rate.
*Above parameters only for reference, customized available for detailed requirements
Application:Specification:
This is a series machine with several models according the flow rate.
| Model | DS (KG/H) | Power (kw) |
| TPDL 131 | 5-10 | 0.36 |
| TPDL132 | 10-20 | 0.54 |
| TPDL 251 | 15-30 | 0.92 |
| TPDL 252 | 30-60 | 1.47 |
| TPDL 301 | 30-60 | 1.3 |
| TPDL 302 | 60-120 | 2.05 |
| TPDL 303 | 90-180 | 3 |
| TPDL 351 | 50-100 | 1.85 |
| TPDL 352 | 100-200 | 2.95 |
| TPDL 353 | 150-300 | 4.4 |
| TPDL 401 | 80-160 | 3 |
| TPDL 402 | 160-320 | 4.5 |
| TPDL 403 | 240-480 | 7.5 |
| TPDL 404 | 320-640 | 9 |
1. Municipal sewage petro-refining
2. Leather making
2. Leather making
3. Printing and dyeing paper
4. Coating and mining
5. Bio-pharmaceutical
6. Steel
7. Food/beverage production
8. Agricultural/fishery industry
9. Other....
Cases:
With our consistent effort, our machines are supplied to more than 30 countries during the past 20 years. With high quality, competitive price and good after-service, our products won high praise from customers.Cases:

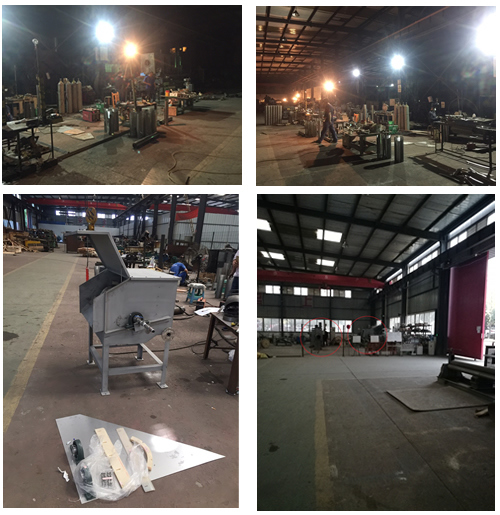

Production Facility:
With R&D team, we can design and manufacture the machine according to customer requirements.
Client Visit:
Welcome to visit our factory anytime.
Packaging & Shipping:
Wooden Package with high quality to protect your machine.
Contact:
If you have any question, pls feel free to contact me directly.
