Evaporation is a process in which the volatile solvent is vaporized and removed to increase the concentration of the solution. It is a essential process In many chemical, pharmacy, food beverage industries.

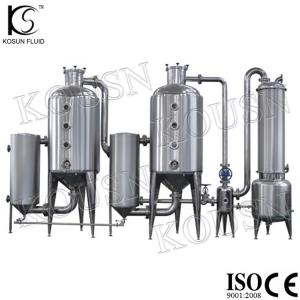

According to if the secondary steam is reused, Stainless steel single multi effect vacuum evaporator is divided into single-effect evaporator and multi-effect evaporator. The energy consumption for single-effect evaporators is very high, So two-effect evaporator and three-effect is mostly used. We could also design Stainless steel single multi effect vacuum evaporator according to customer's solution condition up to seven-effect

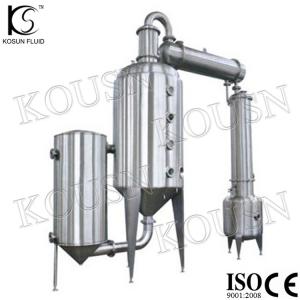

Below is the model and data sheet of our single effective vacuum evaporator
double effective & triple effectivee vaporators data please see our website
Company Information
Certification
According to if the secondary steam is reused, Stainless steel single multi effect vacuum evaporator is divided into single-effect evaporator and multi-effect evaporator. The energy consumption for single-effect evaporators is very high, So two-effect evaporator and three-effect is mostly used. We could also design Stainless steel single multi effect vacuum evaporator according to customer's solution condition up to seven-effect
Below is the model and data sheet of our single effective vacuum evaporator
double effective & triple effectivee vaporators data please see our website
| Single effect evaporator | ||||
| Model and Specification | EVAP-500 | EVAP-1000 | EVAP-1500 | EVAP-2000 |
| Recycled alcohol density | 80-85 | |||
| Steam pressure(Mpa) | 0.03-0.09 | |||
| Vacuum Degree(Mpa) | -0.05-0.08 | |||
| Evaporating room area (m³) | 1 | 1.5 | 2 | 2.5 |
| Liquid receiving volume (m³) | 0.3 | 0.5 | 0.8 | 1 |
| Steam cost(kg/h) | 520 | 1050 | 1550 | 2100 |
| Water cost(T/h) | 7 | 10 | 15 | 20 |
| Steam inlet(mm) | 40 | 50 | 80 | 100 |
| cooling water inlet(mm) | 40 | 50 | 65 | 80 |
| We could also design according to customers working condition |
