Introduction:

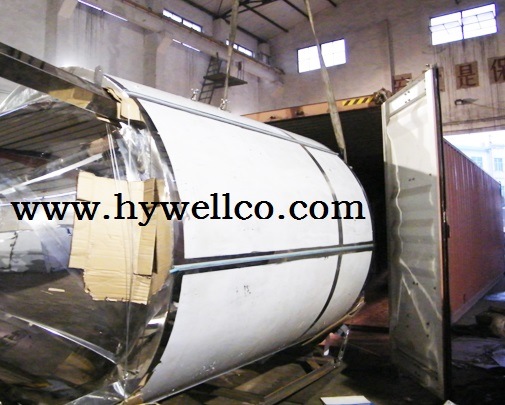

LPG Spray Drying Machine can dry the Maltodextrin ,it also name as Maltodextrin Atomizer Spray Drier.
LPG Spray Drying Machine is a wide applied process in liquid process shaping and drying industry. This kind of Spray Dryer has quick drying speed. Particularly the Spray Dryer is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard.
The surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Especially suit for drying thermal sensitive material. The product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.
The productive process is simple and the operation, control is very convenient. For liquid containing 40 - 60% of damp(for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush, sieve. So it reduces productive procedure and raises the purity of product. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging operation condition.
Applications
Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on
Food Industry: Fatty milk powder ,protein, cocoa milk powder, substitute milk powder, egg white(yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, and etc.
Attention to order
1. When order the LPG Series Spray Drying Machine, Client need to supply the materials name.
2.When order the LPG Series Spray Drying Machine, Client need to supply the materials characteristic that include materials HP, Maximum withstand temperature and so on.
3.When order the LPG Series Spray Drying Machine, Client need to supply the materials primary moisture and final moisture (%).
4.When order the LPG Series Spray Drying Machine, Client need to supply the treating capacity per hour.
5.When order the LPG Series Spray Drying Machine, Client need to supply heating way, if it use steam heating, client need to supply the steam pressure and steam capacity.
6.When order the LPG Series Spray Drying Machine, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel (Hywell also give suggestion for the stainless steel model base the materials HP).
Spray Drying Machine
hywell Machinery is proffessional to design and manufacture the lab spray dryer, so it also name as LPG Series Spray Drying Machine that main use to dry the food liquid, medicine liquid and chemical liquid.welcome to inquiry Hywell company.
Parameter:
The Main technical parameters is for reference. We also produce and design product as per customers' requirment:
| Spray Drying Equipment | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 | LPG(200-11000) |
| Max evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-11000 |
| Inlet temp(ºC) | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
| Outlet temp(ºC) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
| Driving type of centrifugal sparyer | drived by compressedair | machanincal drive | ||||
| Rotation speed(r.p.m) | 25000 | 22000 | 21500 | 18000 | 18000 | 8820-15000 |
| Dia.of spray pallet | 50 | 102 | 108 | 108 | 150 | 180-340 |
| Dimension(m) | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | design acording to actual conditions |
| Powder recollection(%) | 95-99 | 95-99 |
