Features
1. Bread Crumb Granules Dryer-ZLG Vibration Fluid Bed Dryer:Upper bed and bottom bed adopt the new quit-open type structure, upper bed can be moved quickly. It is easy to clean completely.
2. Bed plate adopts laser punching way to make, it can avoid the plate be out of shape during the common punching process
3. Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long
4. Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer.
5. Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long.
6. Fluidized state is stable, no dead corner or broken out phenomenon
7. Adjustability is good, and application scope is wide
8. Small damage to the surface of material, it can be used for drying breakable materials. It doesn' effect the work efficiency when the shape of material is irregular.
9. Adopts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.
Description:

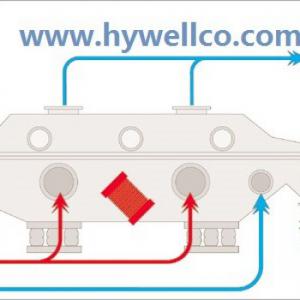

fluid bed dryer is a new technology developed on the basis of static fluidized bed. Mechanical vibration is added on the fluidized bed. Wet material particles enter the air stream and form a fluidized bed. The material is ejected due to exciting force. Vibrations of an air distributing plate incite the fluidization of material particles and the movement of material in the fluidized bed. The fluidized material contacts the hot air and at the same time carries on heat and mass transfer. The dried product is discharged through the discharge port.
Application
Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid, oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium borate, activated clay, compound fertilizer, eat. The Main technical datum is for reference. We also produce and design product as per customers' requirement.
1. Bread Crumb Granules Dryer-ZLG Vibration Fluid Bed Dryer:Upper bed and bottom bed adopt the new quit-open type structure, upper bed can be moved quickly. It is easy to clean completely.
2. Bed plate adopts laser punching way to make, it can avoid the plate be out of shape during the common punching process
3. Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long
4. Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer.
5. Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long.
6. Fluidized state is stable, no dead corner or broken out phenomenon
7. Adjustability is good, and application scope is wide
8. Small damage to the surface of material, it can be used for drying breakable materials. It doesn' effect the work efficiency when the shape of material is irregular.
9. Adopts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.
Description:
fluid bed dryer is a new technology developed on the basis of static fluidized bed. Mechanical vibration is added on the fluidized bed. Wet material particles enter the air stream and form a fluidized bed. The material is ejected due to exciting force. Vibrations of an air distributing plate incite the fluidization of material particles and the movement of material in the fluidized bed. The fluidized material contacts the hot air and at the same time carries on heat and mass transfer. The dried product is discharged through the discharge port.
Application
Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid, oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium borate, activated clay, compound fertilizer, eat.
| model of drying machinery | area of fluidized(M²) | temperature of inlet air(ºC) | temperature of outlet air(ºC) | capacity to vap[or moisture(kg/h) | vibration power |
| ZLG3*0.30 | 0.9 | 70-180 | 40-80 | 10-40 | 0.8x2 |
| ZLG4.5*0.30 | 1.35 | 70-180 | 40-80 | 20-50 | 0.8x2 |
| ZLG4.5*0.45 | 2.025 | 70-180 | 40-80 | 30-70 | 1.1x2 |
| ZLG4.5*0.60 | 2.7 | 70-180 | 40-80 | 50-100 | 1.1x2 |
| ZLG6*0.45 | 2.7 | 70-180 | 40-80 | 50-100 | 1.5x2 |
| ZLG6*0.60 | 3.6 | 70-180 | 40-80 | 80-130 | 1.5x2 |
| ZLG6*0.75 | 4.5 | 70-180 | 40-80 | 110-160 | 2.2x2 |
| ZLG6*0.9 | 5.4 | 70-180 | 40-80 | 130-180 | 2.2x2 |
| ZLG7.5*0.60 | 4.5 | 70-180 | 40-80 | 110-190 | 2.2x2 |
| ZLG9X1.2 | 10.8 | 70-180 | 40-80 | 230-400 | 4X2 |
