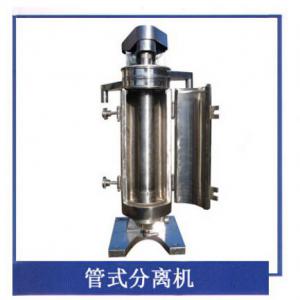

High Performance Tubular Centrifuges
The GQ and GF Series of Tubular Centrifuges are designed to operate at high speeds to generate up to 13,600 gravities of centrifugal force.Tubular centrifuges are used for the recovery or the elimination of liquid suspended impurities, and for the separation of two (2) non-miscible liquids of different densities.The GQ and GF are available either as a clarifying type or separating type of tubular centrifuge.
Clarifying Type (Solid-Liquid Separation)
The GQ and GF configured as a clarifying type of tubular centrifuge is designed to separate low percentages of solids between 1 and 0.001 microns in size which are suspended in a liquid.The high centrifugal force generated causes the solids to migrate to the wall of the centrifuge tube where they are retained.The clarified liquid is the discharged at the top of the tube.
Separating Type (Liquid-Liquid Separation)
The GQ configured as a separating type of tubular centrifuge is designed to separate two (2) immiscible liquids of differing densities.The high centrifugal force generated causes the high density liquid to migrate toward the tube wall while the lower density liquid is displaced to the center of the tube.The separated liquids are then discharged at the top of the tube with dedicated outlets.
Separating Type (Liquid-Liquid-Solid Separation)
The GF can also be configured as a separating type of tubular centrifuge to separate three (3) phase solutions.If any solids are present they will collect on the wall of the centrifuge tube while the two (2) separated liquids are discharged at the top of the tube by the dedicated outlets.
Typical Applications
Separation of viruses and bacteria
Classification of biotechnological solutions
Production of gamma-globulin
Separation and clarification of lubricating oils, greases and solvents
Concentration of essential oils
Purification of fish oils
Dehydration of varnishes and lacquers
Clarification of fruit juices
Design Features and Benefits
Simple and robust design
Small footprint
Installations without foundations since the forces are not transmitted to the floor
Portable
Tube removal without dis-assembly
Full opening design available to facilitate easy cleaning, inspection and removal of the tube
Heating and cooling capabilities
CIP (Clean in Place) cleaning system
SIP (Sterilization in Place) cleaning system
Electric drive motor with hydraulic clutch
VFD speed control
Materials of Construction
The product contact surfaces can be constructed of 316 Stainless Steel, Hastelloy, Inconel, Monel, Titanium or other exotic alloys with highly polished surfaces.
Manufactured by
The GQ and GF Series of Tubular Centrifuges are designed to operate at high speeds to generate up to 13,600 gravities of centrifugal force.Tubular centrifuges are used for the recovery or the elimination of liquid suspended impurities, and for the separation of two (2) non-miscible liquids of different densities.The GQ and GF are available either as a clarifying type or separating type of tubular centrifuge.
Clarifying Type (Solid-Liquid Separation)
The GQ and GF configured as a clarifying type of tubular centrifuge is designed to separate low percentages of solids between 1 and 0.001 microns in size which are suspended in a liquid.The high centrifugal force generated causes the solids to migrate to the wall of the centrifuge tube where they are retained.The clarified liquid is the discharged at the top of the tube.
Separating Type (Liquid-Liquid Separation)
The GQ configured as a separating type of tubular centrifuge is designed to separate two (2) immiscible liquids of differing densities.The high centrifugal force generated causes the high density liquid to migrate toward the tube wall while the lower density liquid is displaced to the center of the tube.The separated liquids are then discharged at the top of the tube with dedicated outlets.
Separating Type (Liquid-Liquid-Solid Separation)
The GF can also be configured as a separating type of tubular centrifuge to separate three (3) phase solutions.If any solids are present they will collect on the wall of the centrifuge tube while the two (2) separated liquids are discharged at the top of the tube by the dedicated outlets.
Typical Applications
Separation of viruses and bacteria
Classification of biotechnological solutions
Production of gamma-globulin
Separation and clarification of lubricating oils, greases and solvents
Concentration of essential oils
Purification of fish oils
Dehydration of varnishes and lacquers
Clarification of fruit juices
Design Features and Benefits
Simple and robust design
Small footprint
Installations without foundations since the forces are not transmitted to the floor
Portable
Tube removal without dis-assembly
Full opening design available to facilitate easy cleaning, inspection and removal of the tube
Heating and cooling capabilities
CIP (Clean in Place) cleaning system
SIP (Sterilization in Place) cleaning system
Electric drive motor with hydraulic clutch
VFD speed control
Materials of Construction
The product contact surfaces can be constructed of 316 Stainless Steel, Hastelloy, Inconel, Monel, Titanium or other exotic alloys with highly polished surfaces.
Manufactured by
| Model | GQ/GF80 | GQ/GF105 | GQ/GF125 | GQ/GF150 | |
Drum | ID(mm) | 75 | 105 | 125 | 147 |
| Height (mm) | 450 | 730 | 730 | 730 | |
| Sedimentation volume(L) | 2.67 | 6 | 8 | 10 | |
| Max speed(r/min) | 21000 | 19000 | 17500 | 16000 | |
| Max separation factor | 22500 | 21000 | 21000 | 21000 | |
| Inlet nozzle diameter (mm) | 3/4/6 | 4/6/8 | 6/8/10 | 8/10/12 | |
| Material inlet pressure (Mpa) | ≥0.05 | ||||
| Capacity (water capacity)L/H | 260 | 1600 | 2200 | 3200 | |
| Actually Capacity L/H(according to the solid content) | 50-80 | 300-500 | 500-700 | 800-1000 | |
| Motor model | 3 phase two pole motor | ||||
| Motor power (kw) | 1.5 | 2.2 | 3 | 3 | |
| Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 | |
| Machine weight (kg) | 300 | 460 | 490 | 510 |
China
