Function description for peeler centrifuge:
Centrifuge is used for solid-liquid separation. The feeding pipe starts to feed in material after the drum revolving to a certain speed.At this time, the siphon pipe is at a certain place of the siphon room and the product will be distributed evenly on the drum wall.The filtering liquid will enter into siphon room through the filter cloth, lining net, filtering plate and the holes on the drum bottom. Then the filtering liquid will be drained outside from the siphon pipe and the solid will be left on the filter cloth. After a period of spining, the scraper will move to peel the cake from the drum wall to the spiral discharging device. And then the cake will be transferred outside through the spiral device.

Main structure:

This type of centrifuge is mainly made of a drum, a scraper device, spiral discharging device, siphon device, skimming device, backflushing device, bearing seat, transmission device, floating platform, shock absorber, controlling system and et.

Scraper:

Apply hydraulic cylinder driving wide scraper unit to discharge, the scraper blade is inlay type. This kind of blade is made of hard alloy. The blade is in teeth type. While scraping, the touching surface is discontinuly. Then the total cutting period is in two parts and the resistance is lowered then the friction-proof is higher.The bearings of the screw and the scraper are FAG brand.(note: this blade has national standard, its patent No. is 200920255606.4)

Application:

Peeler centrifuge is widely used in such industries as chemical, food, light industry, pharmaceutical, etc. It is suitable for separating suspension containing large-size or medium-size or small-size particles, such as sulphuric ammonia, carbonic ammonia, PVC, etc

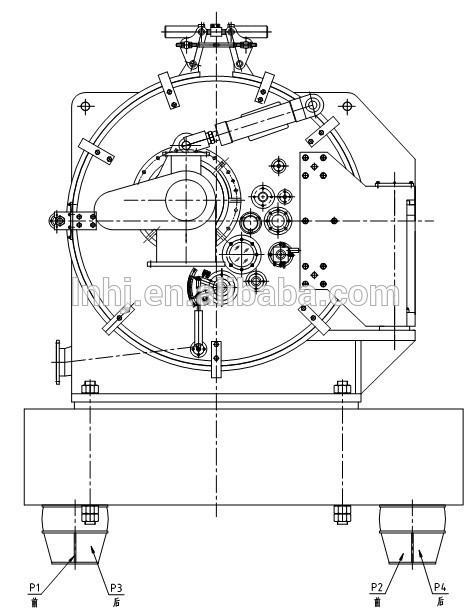

Outline Drawing :

1.Is your price competitive?

My price is not the lowest in China as for high quality,but we promise for the same quality and collocation,my price is the most favorite,for the same price ,my quality is definitely superior.to other brand.

2.Do you have OEM service?Do you supply the parts?

Yes,we do,as long as you provide us your drawing and detailed requirements.

3.Do you supply second hand centrifuge?

No,we only provide brand new machine.

4.Do you have agent or service center in my country?

We have some partnership in several countries as Indonesia,Brazil,USA etc,you are warmly welcomed to work as our agent,at this moment,we have no service centers abroad,but we can provide overseas spot and online technical service in time.

5.How can we easily find out the most fit centrifuges?

We have experienced engineer team to help you make the model selection,as long as you provide us the detailed processing material characteristics.

6.What payment mode you accept?

TT and LC at sight.
