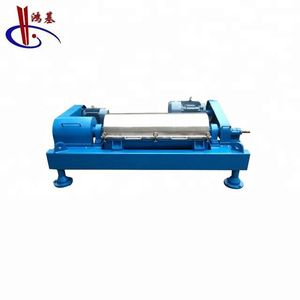

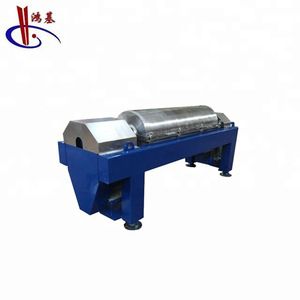

2 Phase Horizontal Decanter Centrifuges, Continuous Kaolin Industrial Decanter Centrifuge
Brief Introduction
The traditional Kaolin grading Horizontal screw centrifuge produced by Peony has been widely used in kaolin production by the domestic well-known manufacturers since the 1990s. And now the domestic traditional grading methods of horizontal screw centrifuge cannot meet the requirements of the users. Due to the higher requirements of customers to equipments in abrasion resistance, handling capacity, recovery, mechanical reliability, economical efficiency and so on, Peony first developed the Kaolin grading Nozzle Horizontal Screw Discharging Centrifuge in China.
The theory of this centrifuge subverts the traditional pattern that underflow discharges from solid slag discharge mouth while the overflow discharges from the liquid slag outlet.
Specification:
Model |
Main Motor Power |
Auxiliary motor |
Typical Capacity | Dimensions (mm) |
Weight | ||
Length |
Width |
Height | |||||
LWP355×1460 | 18.5-22 | 7.5-11 | 15-20 | 3400 | 920 | 1060 | 2300 |
LWP420×1680 | 22-30 | 11-15 | 20-30 | 3500 | 1000 | 1000 | 2800 |
LWP450×2000 | 30-37 | 15-18.5 | 30-40 | 4000 | 1100 | 1150 | 3300 |
LWP500×2000 | 37-45 | 15-18.5 | 40-50 | 4400 | 1240 | 1350 | 4200 |
LWP540×2000 | 45-55 | 15-22 | 50-60 | 4500 | 1280 | 1400 | 5000 |
LWP620×2400 | 55-75 | 15-22 | 60-80 | 5000 | 1380 | 1200 | 6500 |
LWP720×2400 | 75-90 | 22-37 | 80-100 | 5100 | 1500 | 1300 | 8000 |
PS:The above parameters will be subject to the final technical agreement.
Advantages:
- Strong adaptability to the parameters fluctuation of the concentration of the pulp and - 2 microns fraction of particles. - 2 microns fraction of particles in the products can be most up to 98% after grading.
- The handling capacity is 2 times of the traditional horizontal screw centrifuge.
- Energy consumption is only 70% of the traditional horizontal screw centrifuge
- More reliable mechanical properties and more convenient regulating system
Application:
This model is also suitable for non-metallic minerals like bentonite and grading needed processing,such as mica powder, titanium dioxide, graphite, drilling mud and recycle of the silicon powder waste pulp in photovoltaic industry.
Wet Processing:
Wet Processing is divided into several stages, including Pug dispersion, grading, Separation of impurities and product handling.
The general principles of process:
Kaolin ore → grinding → mashing→degritting→ swirler grading→peeling→Horizontal screw centrifuge grading→magnetic separation(or bleaching)→concentration→filter pressing→drying→ products of ceramic level or paper coating level.
Guarantee:
Hongji has advantages in price, service and quality.We have Military Product Quality System Certification, CE certificate,Quality System Certification,many professional equipments and advanced designs.
