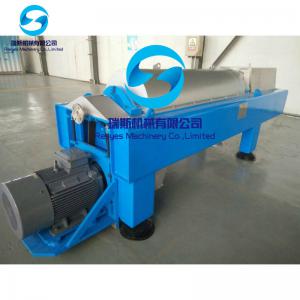

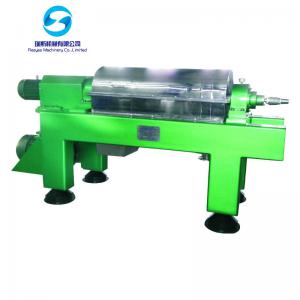

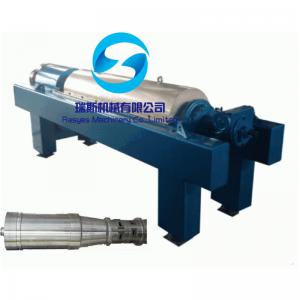

LW Horizontal Decanter Centrifuges
Introduce- ------------------------------------------------------------------Reyes Machinery
LW Horizontal Decanter Centrifuges feature continuous feeding and discharge . This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
Advantage------------------------------------------------------------------Reyes Machinery
1. this liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration.
2. Dual eletric motor control enables stepless speed adjustment on bowl and spiral components.

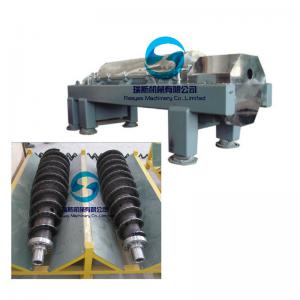

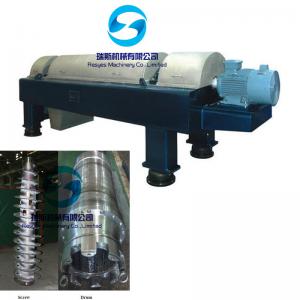

3. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Moreover, main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual- phase steel, whereby offering exceptional speed limits and separation ratio.
4. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids.
5. Multipe protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion- proof protection, motr overload and over heat protection.
6. JG type rubber shock absorber requires no anchor bolts.
Application------------------------------------------------------------------Reyes Machinery
1. industrial and municipal wastewater treatment
2. oil&gas drilling mud/fluid control
3. washing, separation and dewater of starch
4. mycelium and zymtotic fluid separation for antibiotic
5. dewatering of soybean and wheat protein
6. dewatering of fish power and fish meat
7. dewatering of vinasse
8. clarification and extraction of fruit juice
9. separation and purification for animal and vegetable oil
10.production and purification of olive oil, palm oil, avcado oil
11.separation and purification for coal tar
12.grading of kaolin and grapgite
13.grading and dewatering of dyestuff and pigment
14.froth flotation for cleaned coal and dewatering of coal mud
15.grading and dewatering of minerals
Structural Diagram ------------------------------------------------------Reyes Machinery
Technical Paramter:
Model | Technical parameter | motor power | outline dimension(mm) | Machine weight (KG) | |||||
| (Diameter)mm | Rotation speed rpm | Length mm | Separation factor G | capacity M3/h | Main motor KW | Vice motor KW | Dimension: L×D×H | ||
| LW250×1000 | 250 | 3600 | 1000 | 1813 | 1-3 | 7.5/11 | 4/5.5 | 2065×1050×800 | 1100 |
| LW360×1200 | 360 | 3500 | 1200 | 2467 | 3-8 | 11/18.5 | 7.5/11 | 2600×1500×850 | 1900 |
| LW360×1500 | 360 | 3500 | 1500 | 2062 | 3-8 | 11/18.5 | 7.5/11 | 2800×1400×850 | 2000 |
| LW420×1750 | 420 | 3200 | 1750 | 2406 | 4-20 | 30/37 | 11/18.5 | 3120×1580×1050 | 3000 |
| LW450×1600 | 450 | 3200 | 1600 | 2578 | 5-25 | 30/45 | 11/22 | 3780×1050×1180 | 3500 |
| LW450×1800 | 450 | 3200 | 1800 | 2578 | 5-25 | 30/45 | 11/22 | 3985×1050×1180 | 3600 |
| LW450×2000 | 450 | 3000 | 2000 | 2266 | 5─25 | 30/45 | 11/22 | 4320×1050×1180 | 3800 |
| LW500×1800 | 500 | 3000 | 1800 | 2517 | 10-30 | 37/55 | 15/22 | 4200×1110×1200 | 4300 |
| LW500×2100 | 500 | 3000 | 2100 | 2517 | 10-30 | 37/55 | 15/22 | 4500×1110×1200 | 4500 |
| LW550×1800 | 550 | 3000 | 1800 | 2769 | 10-35 | 45/55 | 18.5/22 | 4380×1160×1230 | 4800 |
| LW550×2200 | 550 | 2800 | 2200 | 2412 | 10-35 | 45/55 | 18.5/30 | 4780×1160×1230 | 5000 |
| LW650×1750 | 650 | 2000 | 1750 | 1454 | 20-50 | 75/90 | 30/37 | 4576×1300×1250 | 6000 |
| LW650×2000 | 650 | 2000 | 2000 | 1454 | 20-50 | 75/90 | 30/37 | 4900×1300×1250 | 6200 |
| LW800×2000 | 800 | 1800 | 2000 | 1450 | 40-100 | 90/110 | 45/55 | 6052×1460×2100 | 10000 |
| LW1000×2350 | 1000 | 1600 | 2350 | 1432 | 50-140 | 110/132 | 55/75 | 6850×1860×2300 | 12800 |
Productive process-------------------------------------------------------Reyes Machinery
Workshop-------------------------------------------------------------------Reyes Machinery
Best Service for You
1) 7day*24hours Hot-line & Email Service
2) Your inquiry related to our products or prices will be replied in 24hours.
3) Well-trained and experienced staffs to answer all your questions in fluent English.
4) Abundant spare parts in stock are available to provide.
5) Our technicians could be dispatched for overseas service.
6) Your workers could get trained in our factory.
