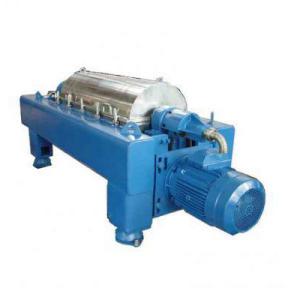

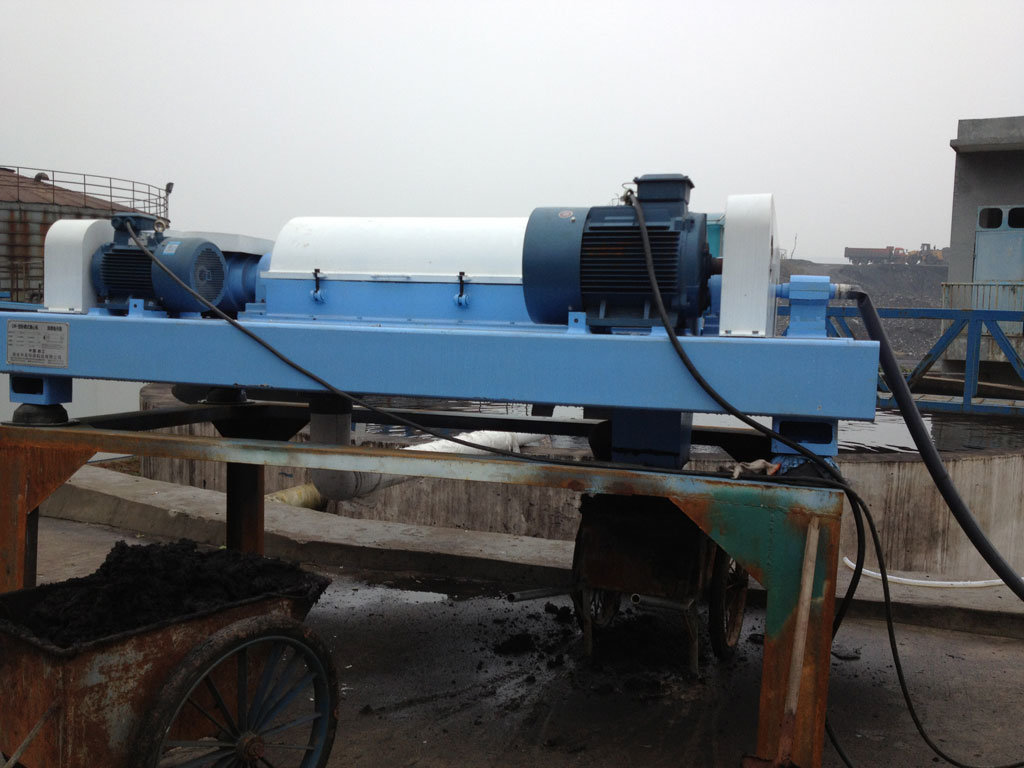

Municipal Sewage Treatment Equipment

Principle:                                                                The solid drum is internally installed with a concentric discharge screw As they rotate in the same direction at

Technical Feature

  • Dalian, China
  • 200sets/Year
  • L/C, T/T, Western Union
  • Separating Plant
  • Waste Water
  • Sedimentation Type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$30~300

PRIMARY PARAMETERS

Model NO.
LW
Pressure
Low Pressure
Condition
New
Capacity
0.5-50m3/H
Dimension(L*W*H)
2400*1860*950mm
Voltage
as Requirements
Control
PLC
Certification
Ce&ISO&SGS
Trademark
HJ
Transport Package
Wooden Case
Specification
SGS, ISO
Origin
Liaoning China

DETAIL DESCRIPTION

Principle:

The solid drum is internally installed with a concentric discharge screw As they rotate in the same direction at a high speed, They have a certain rotational speed difference, which is caused by the driving system and the differential case Suspension enters the internal of the charge screw through the speed pipe and then goes into the drum after being accelerated Under the centrifugal force, solid particles of big density settle on the inwall of the drum, and form a circular layer of cake, which is continuously pushed by the discharge screw to the small end of the drum end then out of it, while the set:led liquid is continuously discharge out of the drum from the vortex finder of the big end of the drum, hence solid-liquid sparation of suspension.

Features:

  For the decanter centrifuge, the continuous feeding separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure easy obturation smith running, low noises, large handing capacity, low energy consumption, high automation small working strength, simple operation and easy maintenance and wide application.

Application Scope:

  The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-

15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separation the suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult .

 Such as follows:

 Treatment of PVC resins, ammonium sulfite, strontium sulphate, lithopone,starch, diatomite, plaster,

bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder of blood,

 powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine coal,

 purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification.

Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.


Municipal Sewage Treatment Equipment
 Type Diameter of the drum(mm)Length of the drum(mm) speed rotation of the drum(r/min) separation factor capacity (M3/H)main motor(KW) auxiliary motor(KW) Dimension(L*W*H) Machine weight(Kg) Formation of differential mechanism
 LW250*900 250900 5400 4000 1-5  111800*1200*600 1050 Planet gear
 LW360*1200 3601200 4200 3550 3-12 15 7.5 2600*1580*1040 2100 Planet gear
 LW360*1500 3601500  42003550 3-14 22 7.5  2900*1600*10402600 Planet gear
 LW420*1750 4201750 4000 3750 6-30 37/45 7.5/11 3120*1580*1070 3500 Planet gear
LW420*2100  4202100 4000 3750 6-35 45 11/18.5 3450*1580*1070 4100 Planet gear
 LW500*2000 5002000 3800 4000 10-40 45/55 11/18.5 3600*2300*1400 6500 Planet gear
 LW500*2500 5002500 3800 4000 12-45 55/75 15/18.5 4100*2300*1400 7200 Planet gear
 LW550*1900 5501900 3200 3154 13-50 45/55 15 3400*1810*1110 4600 Planet gear
 LW550*2400 5502400 3200 3454 13-55 55/75 18.5 3900*1810*1110 5600 Planet gear
 LW650*2000 6502000 2650 2500 15-65 55/75 18.5 4000*2300*1400 7100 Planet gear
 LW450*1800 4501800 4000 4028 10-35 45 18.5 4400*1350*1460 4200 Planet gear
 LW450*2100 4502100 4000 4028 10-40 45 18.5 4700*1350*1460 4600 Planet gear
 LW500*2200 500 2200 38004039 15-45 55 22 4400*1400*1480 5000 Planet gear
 LW500*2550 500 25503800 4039 15-45 75 22 4700*1400*1480 5500Planet gear
 LW550*2200 5502200 3200 3151 18-55 55 22 4500*1500*1500 5300 Planet gear
 LW550*2600 5502600 3200 3151 18-60 75 22 5000*1500*1500 7500 Planet gear
 LW650*2200 6502200 2650 2553 20-65 75 22 4700*650*1650 7600 Planet gear
 LW650*2600 6502600 2650 2553 20-70 90 37 5100*1650*1650 9100 Planet gear
 LW720*2000 7202000 2540 2600 25-75 90 37 4700*1730*1750 11000 Planet gear
 LW720*2500 7202500 2540 2600 25-80 132 37 5200*1730*1750 12800 Planet gear
 LW800*2000 8002000 2000 1790 35-100 132 45 4750*1800*1830 14000 Planet gear
 LW1000*2000 10002000 1800 1812 40-120 250 45 4800*2000*2000 17800 Planet gear


1,The manufacture and design accord with the standard Of "JB/T502-2004 Decanter Centrifuge" and"JB 8525-1997 Safety Requirements of Centrifuge". High rotational speed,high separating factor and big lenth-to-diameter ratio.For centrifuges with drum diameter below 530mm,their separating rotational speed is usually above 3000r/min,their separating factor is above 2500 and their length-to-diameter ratio can reach up to 5.Among them,the highest rotational speed of LW250X1000-N can reach 5400r/min,and its separating factor iS above 4000.

2,Big single machine processing capacity:The decanter centrifuge series with diameters of 250,300,355,400,450,500,530, 580,650,760 and 900,10000(mm)are all designed according to the newest fluid theory and with reference to the advanced structures abroad.they have a big capacity and fine separatine effect.

3,Low vibration,low noises and big bearing capacity.Imported main bearings with high precision and big bearing capacity are used for this series,Precision of components is high.The entire machine gets precise dynamic balance through dual rotors,thus stationarity and reliability are guaranteed when it is running at a high rotational speed.With low vibration and loW noises,all of its properties are higher than those stipulated in the NationaI Standard.

4,With multiple protecting apparatus,reliable running is realized.The senes of centrifuges are usually equipped with such overload protective devices as differential case or torque-limiter coupling.If required,other protection devices such as vibration protection,temperature monitoring and protection,and feed adjusting,etc.can be equipped,which are able to protect the entre machine by automatic alarm and forced stoppage.

5,Property Of dfferential system is reliable,Differential case Of satellite differential Or cycloidal needle wheel differental is used.if necessary,fully hydraulic dfferential system is used.Mechanial dfferential cases Of well-known natlonal brands have been chosen,and hydraulic pressure differential system adopts the foreign brands.The differential case is of high precisiOn,high performanceand reliable Operation.

6,Key parts are corrosion-resistant and wear resistant. The surface of screw, the inlet on* the svrew and the dischange outlet on drum are usually surfaced or beadweld with wear-resistant surface made of hard carbide. For the centrifuges on special ossasions, wear-resistant blocks of imbedded hard carbide are adopted, or inlaid with wear resistant jacket or wear resistant ceramic plates, corrosive-resistant, wear-resistant and lasting.

7,It has many modes of drive and speed regulation. According to different demands, corresponding drive, differential and speed regulation mode can be adopted to adjust the rotate speed of drum and its differential rotate speed so as to achieve the best separating results on different separating occasions.

8,Fine obturation and explosion-proof performance. Machines of obturation and explosion-proof type are specially designed for those special separating occasions inflammable and explosive. Mechanical seal can last no fewer than 8000 hours and gas seal no fewer than 15000 hours.

9,Advanced and reliable control system of electrical system equipment. Types of control of electrical equipment can be classified as conventional, explosion-proof and fully automatic control with computers. CDS centrol control system can also be selected for remote supervisory and controlling and full-automatic operation. All the electrical compinents of the electrical control system are either imported from abroad or of famous brands at home, which perform well.

10,Meterials of high quality have been used. Austenitic stainless steel or two-phase stainless steel is usually used for the parts of machines that suspension touch. These parts have high strength and good ability to resist corrosion.

Drive and speed regulation of decanter centrifuge series

Driven by a single-speed motor and the onput the stalk of differential case is fixed-Adjust the roate speed of the drum and differential rotate speed by changing belt pulley, which is suitable for separation of common materials that de not have any special changes.
Control drive of the main motor and the auxiliary motor respecticely with two frequency-converters, and the drive ratio of the differential case is fixed. It is fast to control drive of the main motor and the auxiliary motor and adjust the rotate speed of the drum and differential rotate speed respectively with two frequency-converters.
Main motor drivers drum, and differential speed is regulated by hydraulic motor Regulate rotate speed of drum driven by main motor by using frequency-conversion speed governor' and change rotate speed by using hydraulic motor
Relationship between different kinds of roate speed and the differential roate speed between drum and discharge screw
Rotate speed of drum: nr=n1 x il
nr--rotate speed of drum r/min
n1--rotate speed of main motor(The rotate speed of the main rotator is indicated on its nameplate or adjusted and set by frequency-conversion speed-regulation modes.)r/min
i1--drive ratio of main motor with the drive of drum belt pulley
differential rotate speed of drum with discharge screw: n=(nr-nd) 4/id =(nl x i1- n2 x i2) / id
n--differential rotate speed of drum with discharge screw r/min
id--fixed drive ratio of differential case
n2--rotate speed of auxiliary motor(The rotate speed of the auxiliary rotator is indicated on its nameplate or adjusted and set by frequency-conversion speed-regulation modes.)r/min
i2--drive ratio of auxiliary motor with the drive of differential case belt pulley
When a hydraulic motor or a fully hydraulic motor differential mechanism is adopted, the rotate speed of discharge screw is set up directly by the hydraulic motor or the fully hydraulic motor differential mechanism,and the differential rotate speed of drum with discharge screw is the liquid presses the motor exportation to turn soon.

ecomposition of key parts of decanter centrifuge
The solid drum is internally installed with a concentric discharge screw As they rotate in the same dJreotion at a high speed, They have a certain rotational speed difference, which is caused by the driving system and the differential case Suspension enters the internal of the charge screw through the speed pipe and then goes into the drum after being accele rated Under the centrifugal force, solid particles of big density settle on the inwall of the drun, and form a circular layer of cake, which is continuously pushed by the discharge screw to the small end of the drum 8nd then out of it, while the set:led liquid is continuously discharge out of the drum from the vortex finder of the big end of the drum, hence solid-liquid sparation of suspension.
