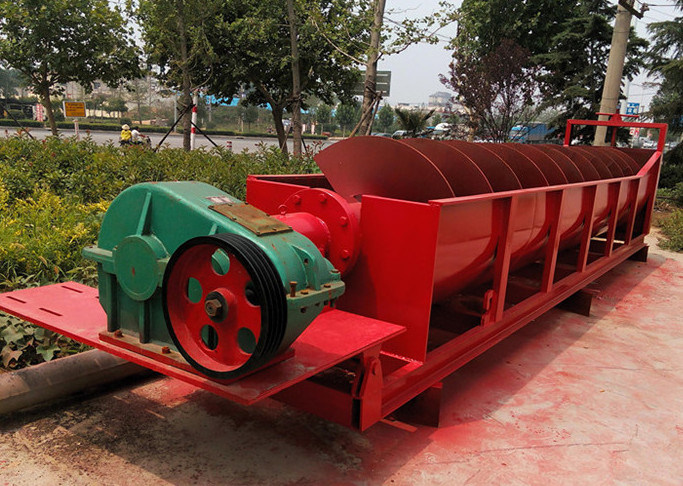

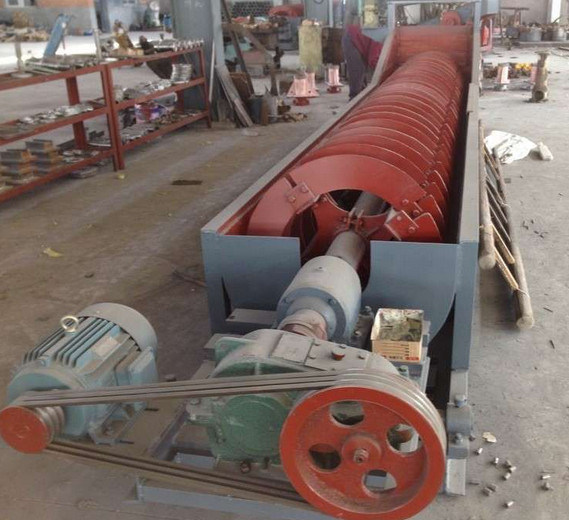

Descriptions of screw sand washing machine
screw sand washing machine are ideal for scrubbing difficult material. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to removed.
Main Features of screw sand washing machine
1.Adjustable weirs
2.Sealed, submerged bearing
3.Optional automatic lubrication system
4.Rigid tank and substructure
5.Wide choice of tank design

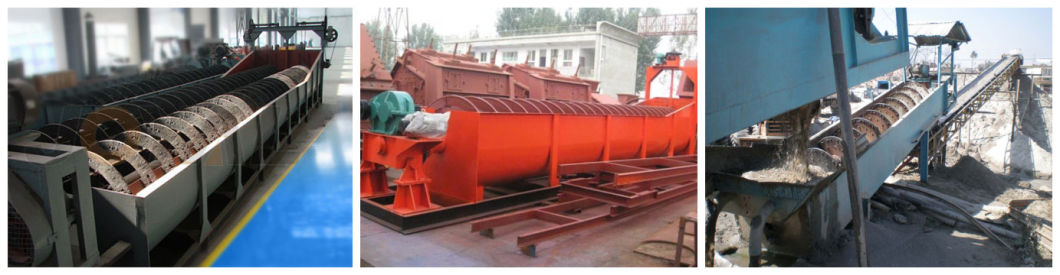

Machine parts of screw sand washing machine
Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Technical Parameter
screw sand washing machine are ideal for scrubbing difficult material. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to removed.
Main Features of screw sand washing machine
1.Adjustable weirs
2.Sealed, submerged bearing
3.Optional automatic lubrication system
4.Rigid tank and substructure
5.Wide choice of tank design
Machine parts of screw sand washing machine
Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Technical Parameter
| Model | Spiral Dia.(mm) | Rotate Speed (r/min) | input Size (mm) | Water Consumption (T/h) | Capacity (T/h) | Power (Kw) | Weight (Kg) |
| LXS -508 | Φ508 | 38 | ≤10 | 6-40 | 20-30 | 5.5 | 2670 |
| LXS -610 | Φ610 | 32 | ≤10 | 6-50 | 30-40 | 7.5 | 3800 |
| LXS -762 | Φ762 | 26 | ≤10 | 9-63 | 75 | 11 | 4020 |
| LXS -914 | Φ914 | 20 | ≤10 | 10-80 | 100 | 11 | 6500 |
| LXS-1118 | Φ1118 | 18 | ≤10 | 27-168 | 175 | 15 | 8690 |
| LXS -1500 | Φ1500 | 13 | ≤10 | 27-180 | 220 | 18.5 | 16580 |
| 2LXS -762 | Φ762 | 26 | ≤10 | 136-182 | 145 | 11×2 | 8140 |
| 2LXS -914 | Φ914 | 21 | ≤10 | 120-150 | 200 | 11×2 | 13500 |
| 2LXS-1118 | Φ1118 | 17 | ≤10 | 200-250 | 300 | 15×2 | 19800 |
