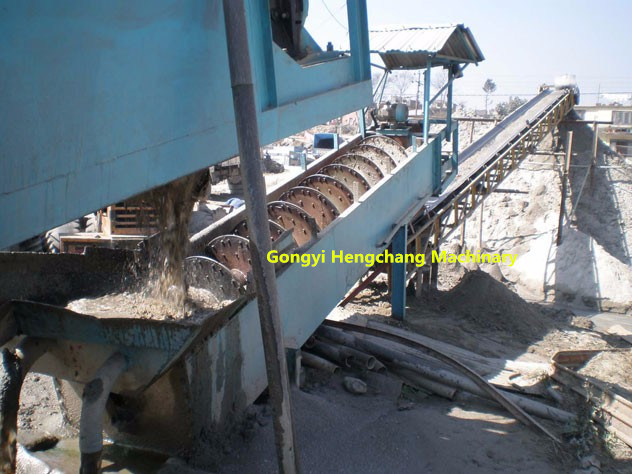

1. Product Application of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
Spiral Sand Washing Machine are ideal for scrubbing difficult material. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to removed.
2. Working principle of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
The spiral classifier mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity: the fine ore grain floats in water for overflowing; and the coarse one sediments onto tank bottom and then is pushed upwards by spiral for discharging. It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface.
3. Technical Parameters of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
4 Main Features of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
1.Adjustable weirs
2.Sealed, submerged bearing
3.Optional automatic lubrication system
4.Rigid tank and substructure
5.Wide choice of tank design
5. Packing and shipping
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
6 Our company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional
manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
7 Contact us
If you want to know more details, please contact me!
Website:http://www.hcmachinary.com
Tel: +86-0371-86160152
Amanda
Spiral Sand Washing Machine are ideal for scrubbing difficult material. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to removed.
2. Working principle of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
The spiral classifier mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity: the fine ore grain floats in water for overflowing; and the coarse one sediments onto tank bottom and then is pushed upwards by spiral for discharging. It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface.
3. Technical Parameters of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
| Model | Spiral Dia.(mm) | Rotate Speed (r/min) | input Size (mm) | Water Consumption (T/h) | Capacity (T/h) | Power (Kw) | Weight (Kg) |
| LXS -508 | Φ508 | 38 | ≤10 | 6-40 | 20-30 | 5.5 | 2670 |
| LXS -610 | Φ610 | 32 | ≤10 | 6-50 | 30-40 | 7.5 | 3800 |
| LXS -762 | Φ762 | 26 | ≤10 | 9-63 | 75 | 11 | 4020 |
| LXS -914 | Φ914 | 20 | ≤10 | 10-80 | 100 | 11 | 6500 |
| LXS-1118 | Φ1118 | 18 | ≤10 | 27-168 | 175 | 15 | 8690 |
| LXS -1500 | Φ1500 | 13 | ≤10 | 27-180 | 220 | 18.5 | 16580 |
| 2LXS -762 | Φ762 | 26 | ≤10 | 136-182 | 145 | 11×2 | 8140 |
| 2LXS -914 | Φ914 | 21 | ≤10 | 120-150 | 200 | 11×2 | 13500 |
| 2LXS-1118 | Φ1118 | 17 | ≤10 | 200-250 | 300 | 15×2 | 19800 |
4 Main Features of Lxs Series Industrial Spiral Gold Ore/White Sand Washer
1.Adjustable weirs
2.Sealed, submerged bearing
3.Optional automatic lubrication system
4.Rigid tank and substructure
5.Wide choice of tank design
5. Packing and shipping
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
6 Our company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional
manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
