PRIMARY PARAMETERS

Model NO.

DWD

HS Code

8419399090

DETAIL DESCRIPTION

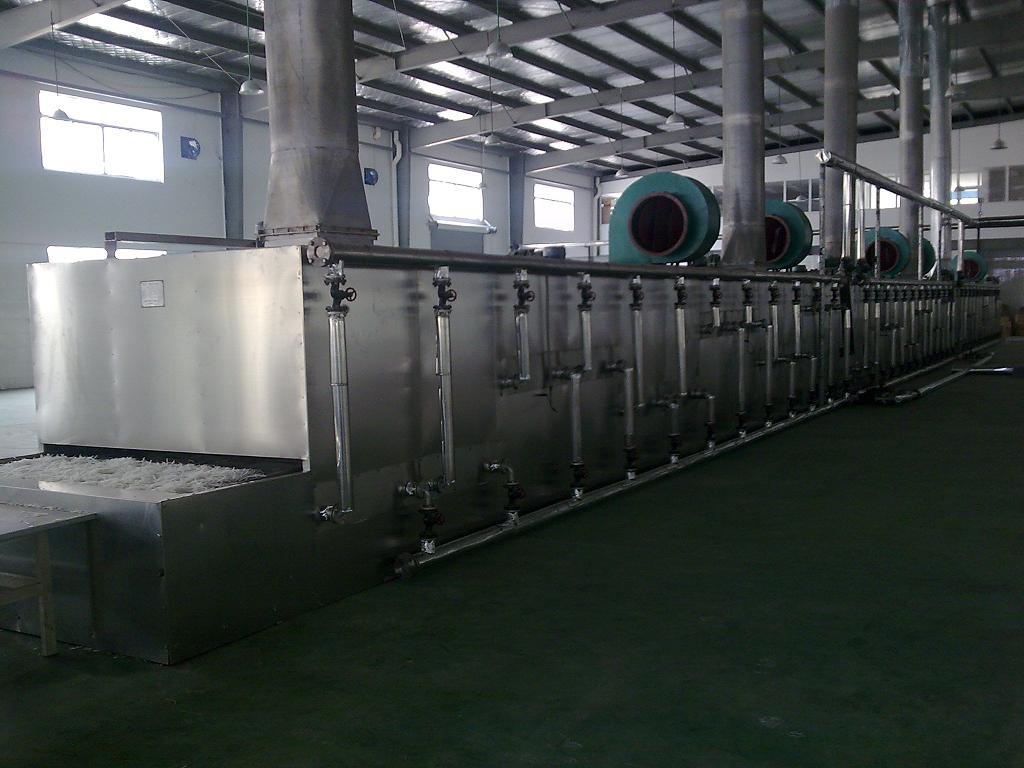

Potato dryer can meet to dry different vegetables such as, root, halm, leaf, tuberous root, big granule and produce in batch. Meanwhile it can maintain content of nutrition, color, etc of vegetable in most extent.
The type raw materials are garlic, cushaw, giantarum, white turnip, yam, bamboo shoot, capsicum, onion, apple, etc.

When operation, air will be entered into the dryer and heated through heat exchanger. Being adapted scientific and reasonable cycle method, the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange. Under the action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle. Final air with Iow temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
Complete Production Line of Cooked White Bean, Green Peas and Broad Bean

Complete Production Line of Cooked White Bean, Green Peas and Broad Bean

Type	DWT1.6-I (fed table)	DWT1.6-II (middle table)	DWT1.6-III (discharge table)	DWT2-I (fed table)	DWT2-II (middle table)	DWT2-III (discharge table)
belt width m	1.6	1.6	1.6	2	2	2
drying section length m	10	10	8	10	10	8
thickness of the material to be covered mm	≤100	≤100	≤100	≤100	≤100	≤100
temperature	50-150	50-150	50-150	50-150	50-150	50-150
Areae of heat conduction m 2	525	398	262.5	656	497	327.5
steam pressureMpa	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8
drying time h	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2
power kw	0.75	0.75	0.75	0.75	0.75	0.75
overall Dim.m	12×1.81×1.9	12×1.81×1.9	10×1.81×1.9	12×2.4×1.92	12×2.4×1.92	10×2.4×1.92
