Description
vibrating fluid bed dryer is suitablity in chemical industry, light industry, pharmaceutical, food, plastic, oil, slag, salt, sugar and so on, for drying , cooling and weting.
Principle of work
Raw materials is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone seperator and duster and the dry raw material is discharged through discharge outlet.
Features
The vibration is created by motor. Lt is stable in operation and convenient in maintenance, low noise and long life.
High Effection, raw material is heated evenly and heat exchange is fully
used and dry capacity is high. Compared with ordinary drier, the energy can
be saved about 30%.
It is good in regulation and wide in suitablity. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed.
It is small for danaging the surface of raw material. The equipment can be
used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape.
Technical parameters
| model | area of fluidized-bed m2 | temperature of air in | temperature of air out | capacity to vappor moisture Kg/h Kg/h | vibration motor | |
| model | power | |||||
| ZLG0.30×3 | 0.9 | 70-140 | 40-70 | 2035 | ZDS10-6 | 0.75×2 |
| ZLG0.30×4.5 | 1.35 | 70-140 | 40-70 | 3550 | ZDS10-6 | 0.75×2 |
| ZLG0.45×4.5 | 2.025 | 70-140 | 40-70 | 5070 | ZDS10-6 | 1.1×2 |
| ZLG0.60×4.5 | 2.7 | 70-140 | 40-70 | 7090 | ZDS10-6 | 1.1×2 |
| ZLG0.45×6 | 2.7 | 70-140 | 40-70 | 80100 | ZDS10-6 | 1.1×2 |
| ZLG0.60×6 | 3.6 | 70-140 | 40-70 | 100130 | ZDS25-6 | 1.5×2 |
| ZLG0.75×6 | 4.5 | 70-140 | 40-70 | 120170 | ZDS25-6 | 1.5×2 |
| ZLG0.9×6 | 5.4 | 70-140 | 40-70 | 140170 | ZDS30-6 | 2.2×2 |
| ZLG0.6×7.5 | 4.5 | 70-140 | 40-70 | 130150 | ZDS30-6 | 2.2×2 |
| ZLG0.75×7.5 | 5.625 | 70-140 | 40-70 | 150180 | ZDS40-6 | 3.0×2 |
| ZLG0.9×7.5 | 6.75 | 70-140 | 40-70 | 160210 | ZDS40-6 | 3.0×2 |
| ZLG102×8 | 9.6 | 70-140 | 40-70 | 200280 | ZDS50-6 | 3.7×2 |
| modeldimension | A | B | C | D | E | F | weight(kg) |
| ZLG0.30×3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| ZLG0.30×4.5 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| ZLG0.45×4.5 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| ZLG0.60×4.5 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| ZLG0.45×6 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 200 |
| ZLG0.60×6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| ZLG0.75×6 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| ZLG0.9×6 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| ZLG0.6×7.5 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| ZLG0.75×7.5 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| ZLG0.9×7.5 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| ZLG1.2×7.5 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
Company introduction:
Changzhou No.2 Drying Equipment Factory Co.,Ltd is an old drying enterprise which has 23 years drying history. We have got several patents in different dryers. We have much experience in different drying area. Now it holds more than 100 sets of equipment. The company has more than 100 staff and workers, including 15 engineers, with annual value of production more than thirty-eight million RMB.We attach importance to advanced technology, and have cooperated positively with universities and colleges to develop new products by using new technics. We have continuously developed several key and high-tech products with advanced technology both from domestic and abroad.During the past ten continuous years, the company has been appraised as enterprise with high reputation on contract and credit.Bases on the principle of factualism, innovation and mutual benefit, the enterprise is looking forward to creating resplendence with personages from all circles together.

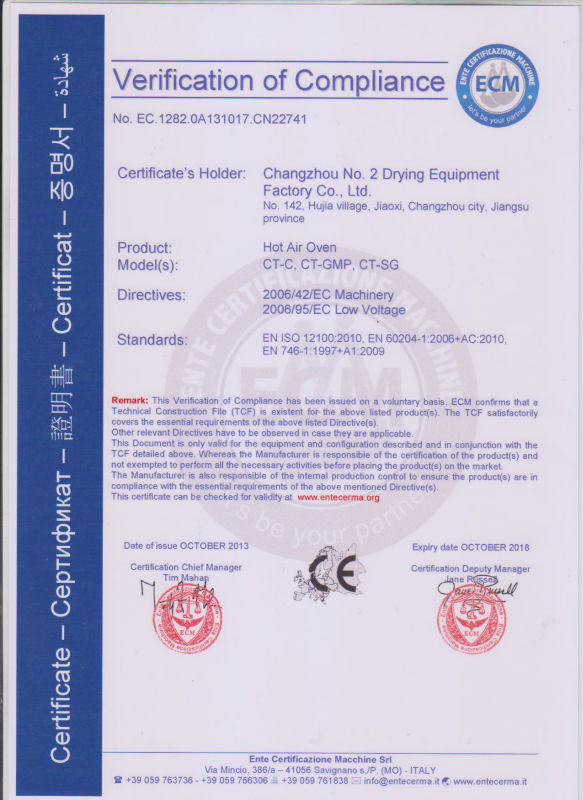

Certificate and Letters Patent:
Service:
The Warranty Period of the dryer machine shall be 12 months from the date of completion of the installation and commissioning of the Contract.
We will provide some spare parts for free together with dryer before shipping, paid service will be provided for the long term, and we can provide components at competitive price.
