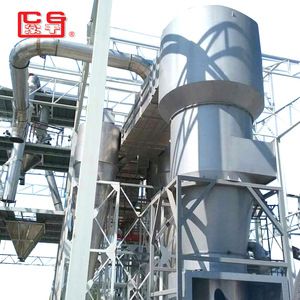

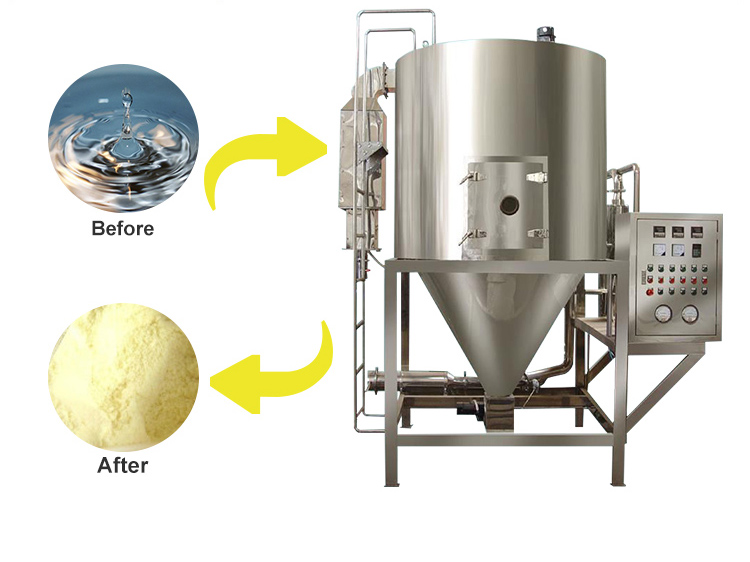

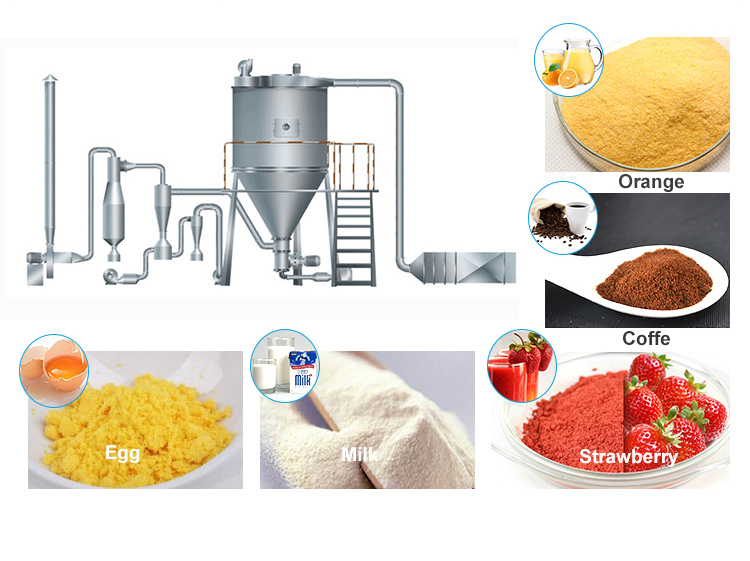

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pump- able paste states. For this reason, when the particle size and distribution of the final products, residual water contents, volume density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies. After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower. |
 |
 |
|
 |
Technical parameters:
| itemtype | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 | LPG-200 | LPG-500 | LPG-800-1000 |
| max evaporated zmount of moisture kg/h | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 800-1000 |
| spay type | high speed centrifugal atomizer | |||||||
| revolution of atomizer rpm | 25000 | 18000 | 16000 | 11000-13000 | ||||
| diameter of atomizer mm | 50 | 120 | 150 | by craft | ||||
| diameter of tower mm | 0.9 | 1.75 | 2.3 | 2.7 | 3 | 3.2 | 4.7 | |
| power of eletric heating kw | 9 | 31.5 | steam+18 | steam+36 | steam+54 | by craft | ||
| heating source | electric,stream+electric and oil fuel ,gas fuel,hot air furnace | |||||||
| overall dimension (L×W×H)m | 1.6 ×9.1 ×1.75 | 4 ×2.7 ×4.5 | 4.5 ×2.8 ×5.5 | 5.2 ×3.5 ×6.7 | 7 ×5.5 ×7.2 | 7.5 ×6 ×8 | 12.5 ×8 ×10 | basis ground |
Our Advantages
1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; YIBU makes you feel free about the after-sales service.
2. We provide the spare parts with the cost of the spare parts themselves for lifelong time .
3.We can make the machine based on the customer request .
4.For the material for the machine ,we have several kinds of raw material for choice Such as SUS304 ,316L , carbon steel as well as others .
5.For the heating source for the machine , we can make it based on the available facility at customer site ,such steam ,electricity ,gas-furnace and so on.
6.we invited and pointed Professor Arun s. Mujumdar, the lifetime chairman of International Drying Conference and the winner of “Friendship Award” of the Chinese government as our technical consultant as to keep YIBU machine with the world advantage technology;
7.We have R&d team ,and can help customer to design his process of the product .
8. For the motor , we have more choices , such ABB,SEW,Siemens and so on .
9.For the burner , we have choices of Usgas ,Rellio or other international brand .
11.For shaft , we can choose SKF ,Japan NSK bearings.etc .
12.Our machine we can design with explosion proof , dust -free, water-free , sealed circulating .
13. Guarantee /warranty :1year calculating from the day of successful installation and commissioning.
14.Package : wooden packing . Special fumigation -free wooden material . Or according to customer requirement .
15.Product special features : A. Dust-proof ,heat-proof ,oil -proof ,explosion -proof ;
B.Green,Environment performance;
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
 |
 |
