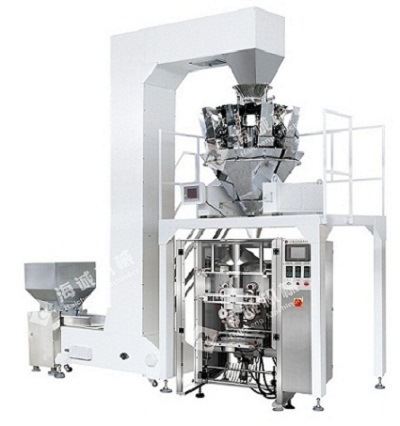

VFFS solid food packing machine
DXD-520C
Use:
This is suitable for automatic packaging particle like all kinds of fried food, potato chips, sweets, beans, peanuts, seeds, grain, biscuits, nuts, tea, dumplings, gourmet, coffee, sugar, candy, and so on.
Features:
1. Imported PLC control system, simple-operating, visual touch screen.
2. Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
3. Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4. Perfect automatic alarming protective function; Reduce the consumption up to the lowest.
5. When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6. Type of bag making: According to customer's demand, the machine can produce pillow bags, punched hanging bags.
Main Technical Parameters:
DXD-520C
Use:
This is suitable for automatic packaging particle like all kinds of fried food, potato chips, sweets, beans, peanuts, seeds, grain, biscuits, nuts, tea, dumplings, gourmet, coffee, sugar, candy, and so on.
Features:
1. Imported PLC control system, simple-operating, visual touch screen.
2. Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
3. Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4. Perfect automatic alarming protective function; Reduce the consumption up to the lowest.
5. When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6. Type of bag making: According to customer's demand, the machine can produce pillow bags, punched hanging bags.
Main Technical Parameters:
| Model | DXD-520C |
| Packing speed | 15-70 bags/min |
| Bag-making size | (L)80-350mm(W)80-250mm |
| Filling range | 10-3000g |
| Film width | 180-520mm |
| Packing materials | OPP/CPP PET/PE PET-AL-PE etc. |
| Film thickness | 0.04-0.08mm |
| Air consumption | 0.36m 3 /min 0.6 MPa |
| Power supply | AC220/380V 50/60Hz 3.5kw |
| Machine dimensions | (L)1600×(W)1050×(H)1750mm |
| Machine weight | 650kg |
