Automatic Vertical Packing Machine
(HC-DXD-420C)
Use:
Suitable for automatic packaging granule like all kinds of sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee beans, lima beans, sugar, salt and desiccant.
Features:
1. Adopt precise multi-heads electronic scales with error± 1.5gram. The open & close speed of the material hopper cover can be adjusted with different features.
2. Imported PLC control system, easy-operating, visual touch screen.
3. Servo film feeding system, correct position, both sealing and cutting adopt automatic correction device, achieving high level of automation.
4. Adopt Intelligent temperature controller, ensure nice, smooth sealing.
Perfect automatic alarming protective function, reducing the consumption to the lowest level.

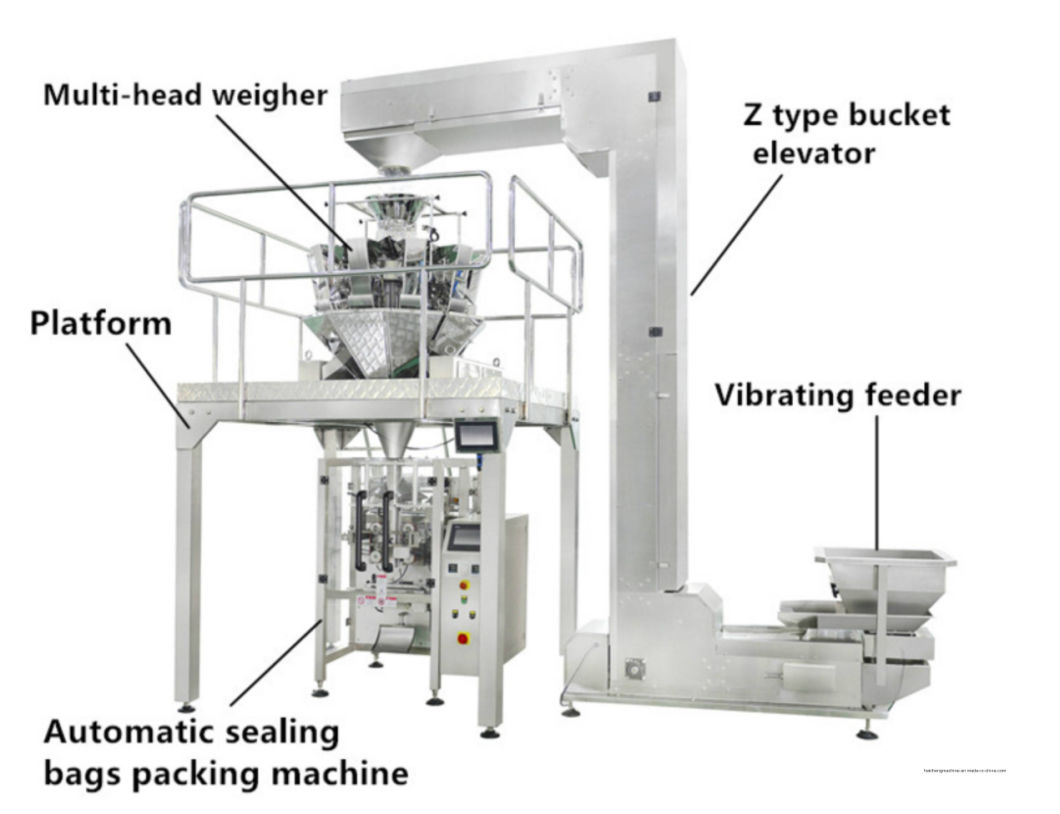

5. Combined with automatic weighing equipments can complete the automatic feeding, weighing, bag filling, date printing and automatic counting.
6. Different type of bag making: Pillow bag, punched hanging bag according to customer's requests.
Main Technical Parameters:
(HC-DXD-420C)
Use:
Suitable for automatic packaging granule like all kinds of sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee beans, lima beans, sugar, salt and desiccant.
Features:
1. Adopt precise multi-heads electronic scales with error± 1.5gram. The open & close speed of the material hopper cover can be adjusted with different features.
2. Imported PLC control system, easy-operating, visual touch screen.
3. Servo film feeding system, correct position, both sealing and cutting adopt automatic correction device, achieving high level of automation.
4. Adopt Intelligent temperature controller, ensure nice, smooth sealing.
Perfect automatic alarming protective function, reducing the consumption to the lowest level.
5. Combined with automatic weighing equipments can complete the automatic feeding, weighing, bag filling, date printing and automatic counting.
6. Different type of bag making: Pillow bag, punched hanging bag according to customer's requests.
Main Technical Parameters:
| Packing speed | 15-70bags/min |
| Bag forming size | (L) 80 -300mm (W) 80 -200mm |
| Filling range | 10-1500gram |
| Packing material | OPP/CPP PET/PE etc. |
| Film roll width | 180 -420mm |
| Film roll thickness | 0.04 -0.08mm |
| Air consumption | 0.36m3 /min 0.6MPa |
| Power supply | AC220V 50/60Hz 3.5KW |
| Machine dimension | (L) 1750 X (W) 1050 X (H) 1500mm |
| Machine weight | 500kg |
| Model: | DXD -420C |
| Origin: | China |
| Min. Order: | 1 set |
| Transportation: | by sea |
