Main structure of the tubular centrifuge:
The machine is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
Type of the tubular centrifuge:
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.
Working Principle Of tubular centrifuge
The Stainless Tubular Centrifuge of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Applications Of tubular centrifuge:
It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:
1) Separation of blood (plasma and hemoglobin separation)
2) Vegetable and animal oil separation (vegetable oil degum, de-soap, fish oil polishing
3) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation
4) Waste water handling, waste oil treatment
5) milk separation, coconut oil separation
Technical paramter of the tubular centrifuge:
Item | GQ/GF75 | GQ/GF105 | GQ/GF125 | GQ/GF150 | |
Drum
| ID(mm) | 75 | 105 | 125 | 147 |
Height (mm) | 450 | 730 | 730 | 730 | |
Sedimentation volume(L) | 2.67 | 6 | 8 | 10 | |
Max speed(r/min) | 21000 | 17500 | 16500 | 15800 | |
Max separation factor | 22500 | 18500 | 17300 | 16800 | |
| Inlet nozzle diameter (mm) | 3/4/6 | 4/6/8 | 6/8/10 | 8/10/12 |
| Material inlet pressure (Mpa) | ≥0.05 | |||
| Capacity (water capacity)L/H | 670 | 1600 | 2200 | 3200 |
| Actually Capacity L/H(according to the solid content) | 50-80 | 100-200 | 200-300 | 300-700 |
Motor model | 3 phase two pole motor | ||||
Motor power (kw) | 1.5 | 2.2 | 3 | 3 | |
Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 | |
Machine weight (kg) | 300 | 460 | 490 | 510 |

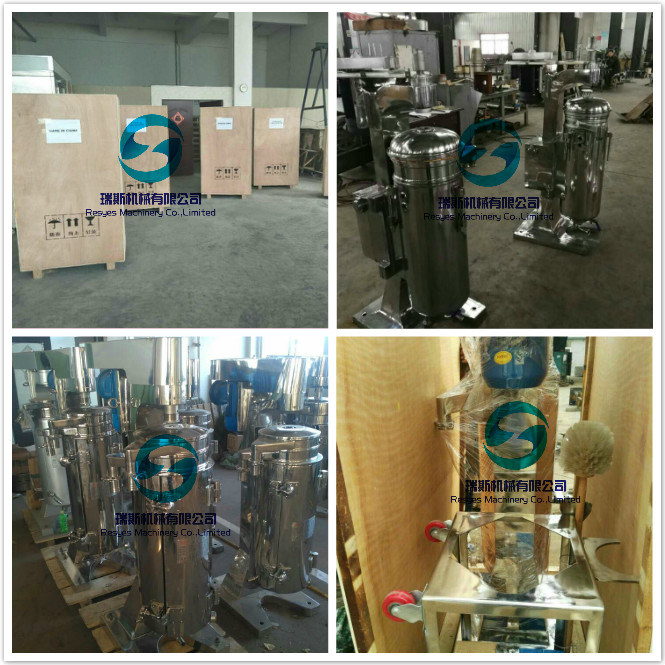

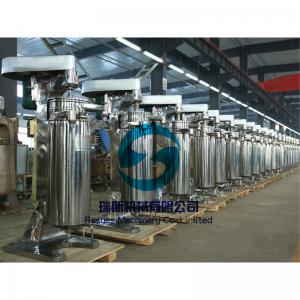

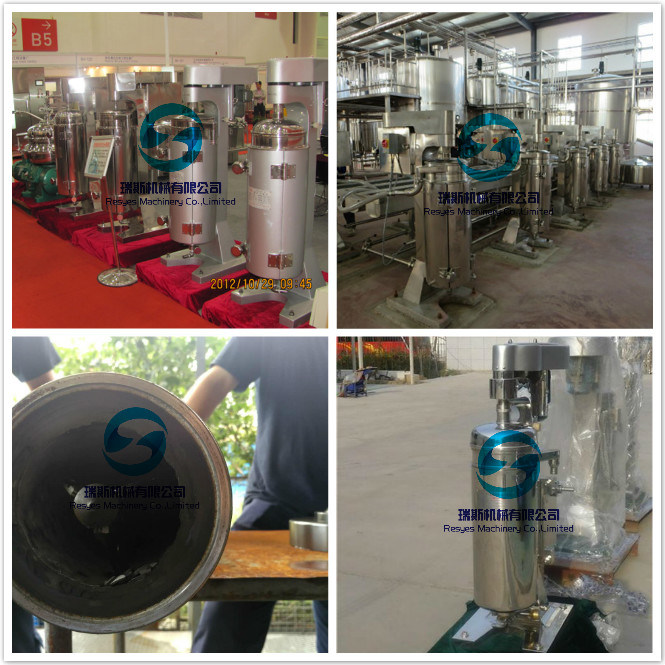

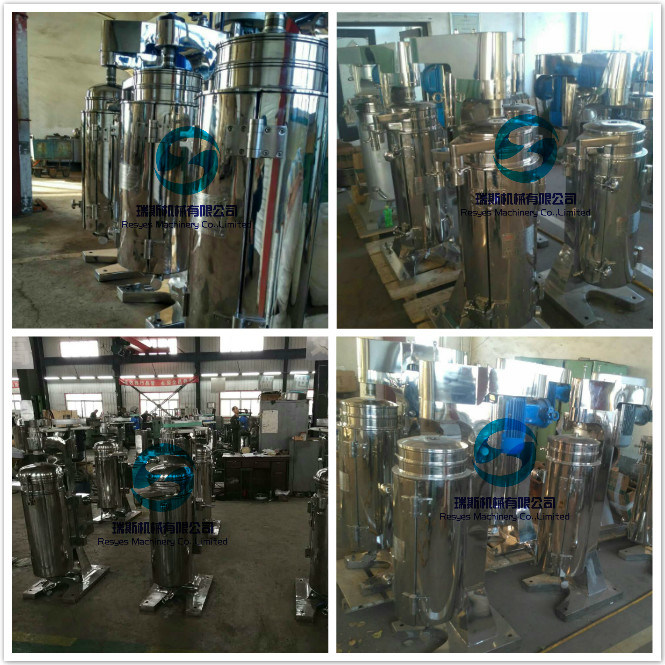

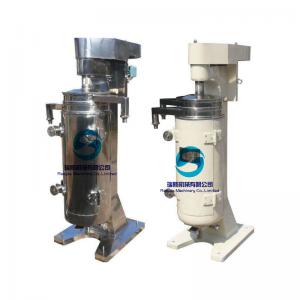

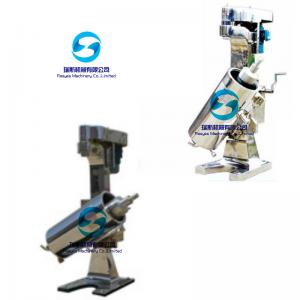

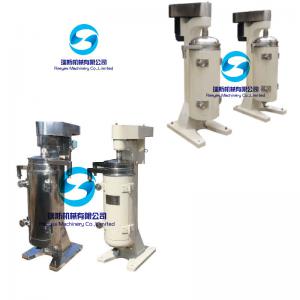

Products pictures:
