Specifications

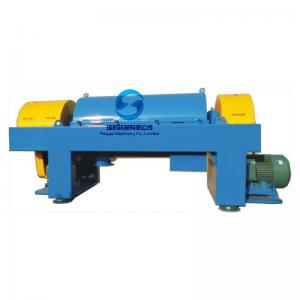

Corn starch decanter centrifuge
1.low energy consumption
2.long life
3.high efficency
Corn starch decanter centrifuge
Corn starch decanter centrifuge is mainly used for recovery of barite, remove small solids, lower solids content of drilling fluid to control the drilling fluid density, viscosity, and to ensure the performance of drilling fluid have an important role for fast drilling.
Working Condition
1 The materials to be seprated are suspend liquid ,solid-liquid and so on .
2 There are density contract of the suspended liquid
3 The range of the concentration: 1- 45% and the particle < 5 mm
4 Working temperature: no more than 110ºC
Feature
1Weld hard alloy or spray hard alloy for wear protection
2 Full automatic and sealed continuously operation make the maintenance more easlier less cost
3 Larger output capacity
4 Compact design and saving room
Structural Diagram ------------------------------------------------------Reyes Machinery
Feature of wheat starch decanter centrifuge
- workload light
- high quality
- user friendly
- automatic continuous operate
- APPLICATION
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite
Technical Paramter:
Two phase decanter centrifuge:
| Model | Diameter (mm) | Bowl speed (rpm) | Length (mm) | G-force | Capacity (m3/h) | Main motor power (kw) | Assistant motor power (kw) | Weight (kg) | Overall size (L × W × H)(mm) |
| PNX409 | 250 | 5500 | 850 | 3493 | 0.2-2 | 15 | 4 | 1020 | 2500 × 650 × 760 |
| PNX-414 | 355 | 4000 | 860 | 3175 | 1~10 | 18.5 | 7.5 | 2035 | 2765 × 920 × 1060 |
| PNX-416 | 355 | 4000 | 1160 | 3175 | 1~15 | 18.5 | 7.5 | 2122 | 3065 × 920 × 1060 |
| PNX-418 | 355 | 4000 | 1460 | 3175 | 1~25 | 22 | 7.5 | 2222 | 3365 × 920 × 1060 |
| PDC-1655 | 420 | 3000 | 1450 | 2113 | 10~30 | 55 | 15 | 4600 | 4080 ×1100 × 1420 |
| PDC-17-4 | 420 | 3600 | 1680 | 3042 | 3~15 | 30 | 7.5 | 5165 | 3331 × 990 × 1066 |
| PDC-18-4.4 | 450 | 3300 | 2000 | 2739 | 10~20 | 37 | 11 | 2739 | 4000 × 1120 × 1239 |
| PDC-20 | 500 | 3200 | 2000 | 2860 | 5~45 | 55 | 11 | 4400 | 4489 × 1160 × 1350 |
| PDC-21 | 540 | 2800 | 2000 | 2366 | 15~50 | 45 | 15 | 5290 | 4587 × 1285 × 1368 |
| PDC-24 | 620 | 3200 | 2480 | 3555 | 15~60 | Hydraulic station 90 | 8000 | 4650 × 2010× 1200 | |
| PDC-28HH | 720 | 2200 | 2400 | 1975 | 15-80 | 110 | 37 | 9393 | 4800 ×1350 × 1500 |

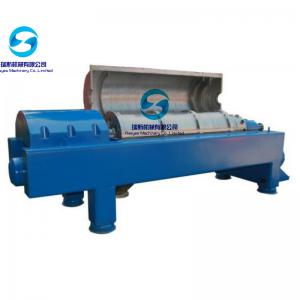

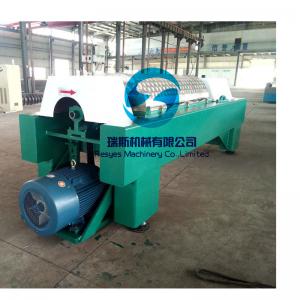

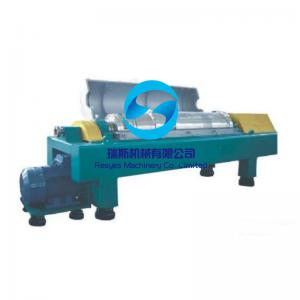

More parts show of the decanter centrifuge:
Productive process-------------------------------------------------------Reyes Machinery
Workshop-------------------------------------------------------------------Reyes Machinery
Best Service for You
1) 7day*24hours Hot-line & Email Service
2) Your inquiry related to our products or prices will be replied in 24hours.
3) Well-trained and experienced staffs to answer all your questions in fluent English.
4) Abundant spare parts in stock are available to provide.
5) Our technicians could be dispatched for overseas service.
6) Your workers could get trained in our factory.
FAQ
1.What's the application of centrifuge?
This machine is widely used in many fields such as environmental, pharmaceutical food, chemical industry for separation/washing/dewatering . It can separate almost all liquid and solid with proper feature.
2.How to clean the machine?
The machine has self-cleaning function. When the processing is finished, you just put one button and the machine will do the cleaning automatically.
3. How to choose the machine material?
For the material, we have stainless steel 304, 316 and 321 for your option. Generally SS304 is used. If there's suspension with corrosion, then SS 321 /316 or Ti is needed.
4.What's the capacity of the machine?
Firstly we have different model with different capacity for this machine.
Secondly, the capacity will be customized according to concentration of the suspension. Higher the concentration, lower the capacity.
5. How is the processing result?
The finished cake moisture and solid lost rate is based on the material feature. And different machine just brings different processing capacity. Also we can offer testing service to get realistic results.
