Specifications
This dryer is used this kind of dryer for drying are as follows;starch,glucose,fish powder,sugar,edible sugar,lees,feed,plast
Descriptions:
DG Series of Air Stream Dryer is drying plant for to dry maize,potato alike and other starch material processed by wet method after dewatering process.It's also for to dry heat sensitive powder or slice state material with fast speed.
Principle:
In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and material is suspending in air stream, the heat transfer surface between air and solid is large, heat transfer rate is high, and drying time is short (usually within several seconds). It's specialized suitable for to drying heat sensitive materials.
In drying process, clean cool air is heated by air heater, and mixed with wet starch sent by spiral feeder and material raiser. Wet starch is dried momentarily. Dry starch is dischanged though centrifugal separator and star shape unloader. Exhaust air is let out into atmosphere.
Technical paramenters:
| spec | capacity of starch t/h | total power KW | steam consume Kg/Kg | finished starch moisture |
| DG-0.5 | 0.5 | 1.8-2.0 | 12-14 | |
| DG-0.8 | 0.8 | 21.6 | 1.8-2.0 | 12-14 |
| DG-1 | 1 | 24.6 | 1.8-2.0 | 12-14 |
| DG-1.2 | 1.2 | 26.6 | 1.8-2.0 | 12-14 |
| DG-1.6 | 1.6 | 30.1 | 1.8-2.0 | 12-14 |
| DG-2 | 2 | 47.6 | 1.8-2.0 | 12-14 |
| DG-2.6 | 2.6 | 59.5 | 1.8-2.0 | 12-14 |
| DG-3.2 | 3.2 | 75 | 1.8-2.0 | 12-14 |
| DG-3.6 | 3.6 | 95 | 1.8-2.0 | 12-14 |
| DG-5 | 5 | 123.4 | 1.8-2.0 | 12-14 |
| DG-6 | 6 | 170 | 1.8-2.0 | 12-14 |
| DG-10 | 10 | 223.5 | 1.8-2.0 | 12-14 |
| DG-20 | 20 | 440 | 1.8-2.0 | 12-14 |
Delivery

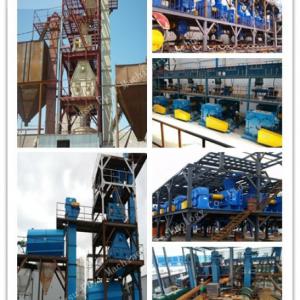

Test on Site

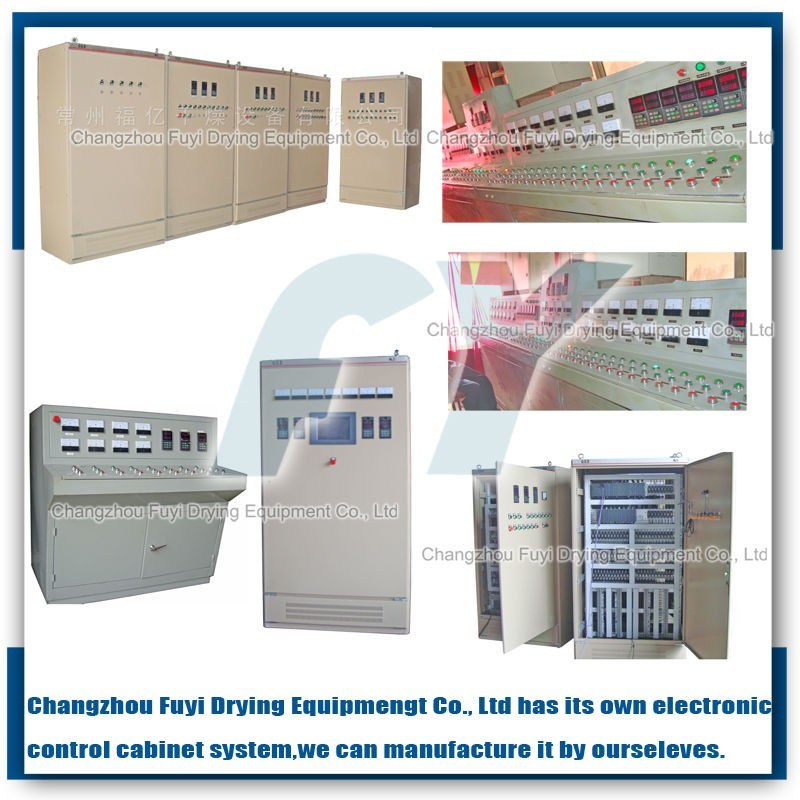

Automatic Control System
Services
Fuyi has designed and manufactured roller presses and equipments for briquetting and compacting NPK fertilizer, powder, chemical, minerals, etc, since 2006. We take care of green field projects as well as of existing plants. Our services cover material tests, process layout, engineering, and supply of complete granulating plants or key equipments, guidance of installation and commissioning, training.
Also, the company manufactures and supplies equipment for drying equipments and dust collector machines.
Extensive experience and best quality production facilities guarantee a smooth workflow from start to finish.
Welcome our sincere clients come to visit out factory.
