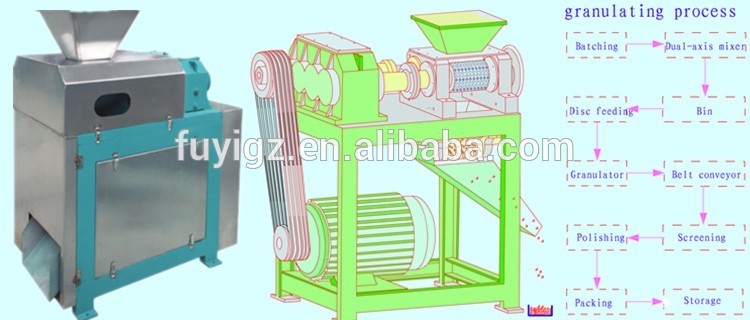

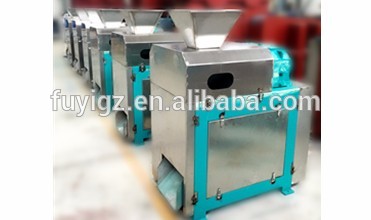

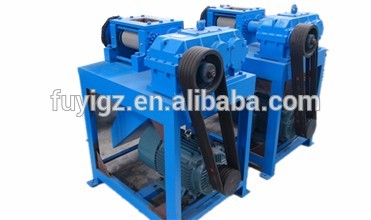

DG series
Our company offers a wide range of machine sizes for high pressure granulating, which covers nearly all requirements of the clients. If your production is low,you can choose small type machine, if you have high production, you can choose one or more sets of machines according to your requirements.And certainly the process of granulating is wet—— water content is between 2-5%.
| Technical parameters | ||
| Model | DG200 | DG300 |
| Motor power | 15KW | 30KW |
| Production capacity | Oblate shape 900-1300 kg/h, irregular shape 300-700 kg/h | Oblate shape 1600-2100 kg/h, irregular shape 900-1600 kg/h |
| Reducer | Adopt hard tooth surface dedicated reducer | |
| Press roll | Forged with alloy steel, heat treatment in special process, the surface of press roll can be plated with hard chromium to have rustproof and wear-resistant treatment. | |
| Rate of finished product | Oblate shape 60-90%, irregular shape 30-60% | |
| Granular diameter | 3.8、4.2、4.8、5.5、6.0、6.5、8、10mm | |

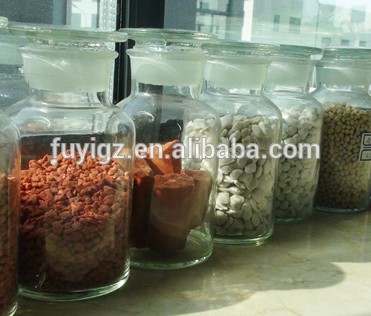

| Granular shape | Oblate、irregular、strip 、slice | |
| Moisture content | Inorganic materials 2-5% ，organic materials 6-12% moisture | |
| Working temperature | Normal temperature | |

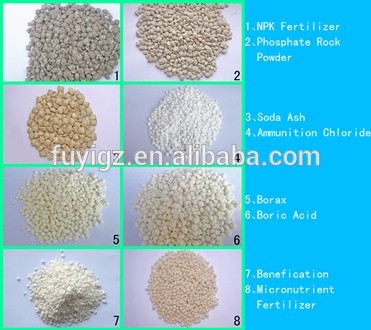

| Working medium | Ammonium carbonate, ammonium chloride, ammonium sulfate, Calcined ulexite, ammonium phosphate, calcium magnesium phosphate, potassium chloride, potassium sulfate, humic acid as well as all kinds of organic matters,etc |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

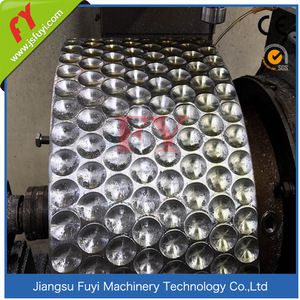

Forged with alloy steel.
The surface of press roll can be plated with hard chromium to have rustproof and wear-resistant treatment.
Heat treatment in special process,
| Technical parameters | ||
| Model | DG200 | DG300 |
| Motor power | 15KW | 30KW |
| Production capacity | Oblate shape 900-1300 kg/h, irregular shape 300-700 kg/h | Oblate shape 1600-2100 kg/h, irregular shape 900-1600 kg/h |
| Reducer | Adopt hard tooth surface dedicated reducer | |
| Press roll | Forged with alloy steel, heat treatment in special process, the surface of press roll can be plated with hard chromium to have rustproof and wear-resistant treatment. | |
| Rate of finished product | Oblate shape 60-90%, irregular shape 30-60% | |
| Granular diameter | 3.8、4.2、4.8、5.5、6.0、6.5、8、10mm | |
| Granular shape | Oblate、irregular、strip 、slice | |
| Moisture content | Inorganic materials 2-5% ，organic materials 6-12% moisture | |
| Working temperature | Normal temperature | |
| Working medium | Ammonium carbonate, ammonium chloride, ammonium sulfate, Calcined ulexite, ammonium phosphate, calcium magnesium phosphate, potassium chloride, potassium sulfate, humic acid as well as all kinds of organic matters,etc |

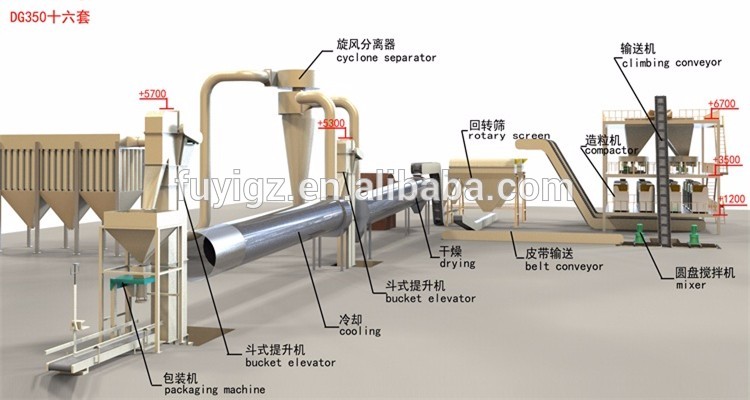

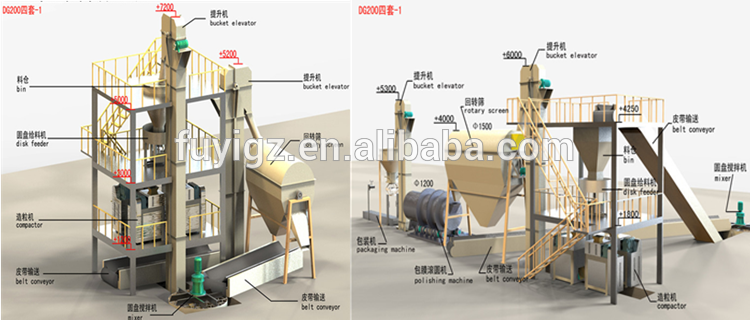

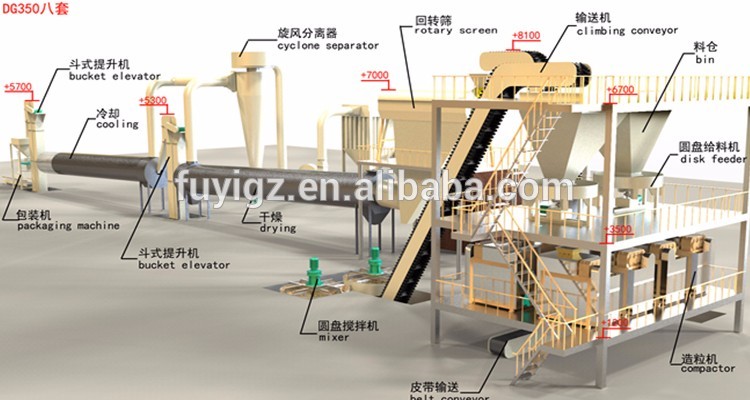

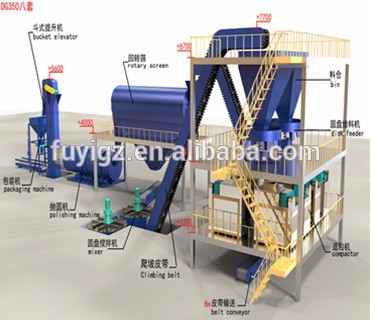

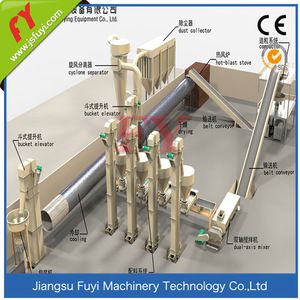

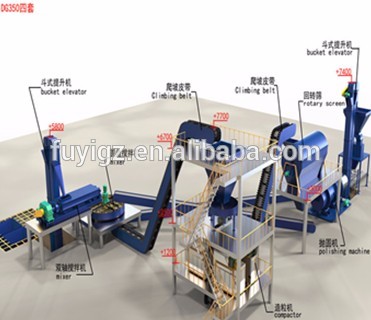

Layout of Fuyi granulating processes
We can design different diagram for different clients, we need to design the layout according our clients provide us some basic information about the size of their factory, and how do they want to place the equipments. Our target is making the process more simple , more easy, more economic and more effective.

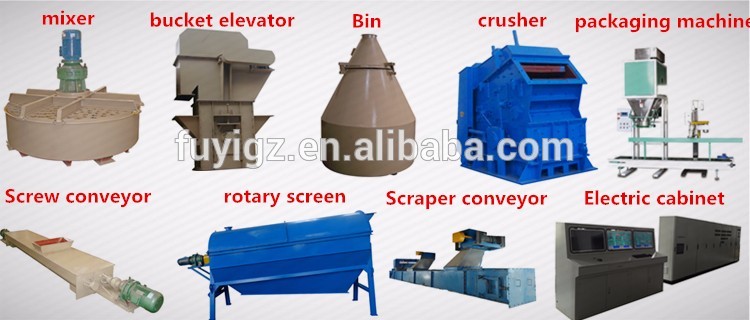

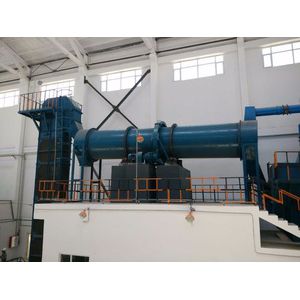

Peripheral equipments for granulation line
In addition to the pellet machine,we can also provide the whole supporting equipment of granulating process to help you finish the granulating much better.
Such as the mixer,feeding machine,the crush machine,the screening machine,drying/cooling machine,conveyor,control cabinet and so on.

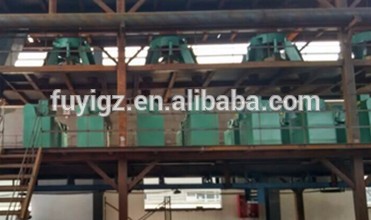

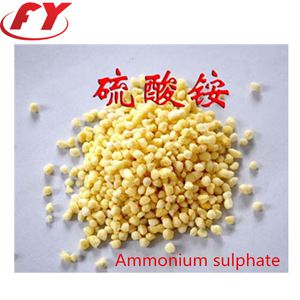

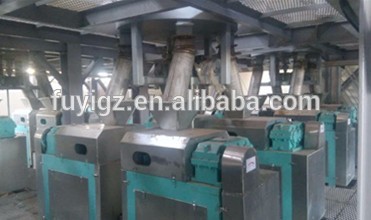

Granulation line with Ammonium sulphate fertilizer granule of 60，000 tons/day.
Our company designed 32 sets of DG200 granulation process plan for St Petersburg granulation project to achieve the plan with annual output of 60 thousand tons of ammonium sulfate particle, become one of the largest fertilizer suppliers in St Petersburg.

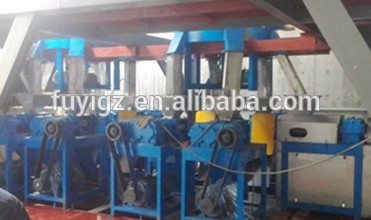

Granulation line for chemical powder
Our company designed 10 sets of DG200 granulation process plan for chemical factory project to solve the problem of waste disposal.

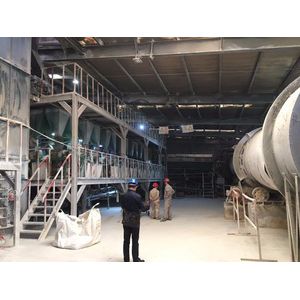

Granulation line with annual production of 150 thousand tons large granules
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our commitments
Fuyi has designed and manufactured roller presses and equipments for briquetting and compacting NPK fertilizer, powder, chemical, minerals, etc, since 2006. We take care of green field projects as well as of existing plants. Our services cover material tests, process layout, engineering, and supply of complete granulating plants or key equipments, guidance of installation and commissioning, training.
Also, the company manufactures and supplies equipment for drying equipments and dust collector machines.
Extensive experience and best quality production facilities guarantee a smooth workflow from start to finish.
