Good Quality Automatic belt filter press machine For leather sewage
Technical Data of belt filter press :
| Model | QTA-500 | QTA-750 | QTA-1000 | QTA-1250 | QTA-1500 | QTA-1500L | QTA-2000 | |
| Belt Width(mm) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 2000 | |
| Treating Capacity(m3/hr) | 2.0~3.9 | 3.2~6.2 | 4.1~7.5 | 6.0~10.0 | 7.2~13.0 | 10.0~17.0 | 15.0~26.0 | |
| Inlet Consistency(S.S.1.5~2.5%) | ||||||||
| Dried Sluge D.S(kg/hr) | 30~50 | 45~75 | 63~105 | 83~143 | 105~173 | 143~233 | 203~338 | |
| Water Content's Rate(%) | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | |
| Power Consumption(HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1/2 |
| Disposal Agitaor Motor | 1/4 | 1/4 | 1/4 | 1/2 | 1 | 1 | 1/2 | |
| Drum Thickner | 1/2 | 1/4 | 1/4 | 1/2 | 1/2 | 1 | 1/4 | |
| Low Collecting Tray for Pressed Fitrate | yes | yes | yes | yes | yes | yes | NO | |
| External Dimensions(Reference)(mm) | L | 2150 | 2150 | 2150 | 2450 | 2900 | 2900 | 2350 |
| W | 1050 | 1300 | 1550 | 2050 | 2130 | 2630 | 1800 | |
| H | 2250 | 2250 | 2250 | 2550 | 2500 | 2600 | 2250 | |
| Base Dimension L1×W1(mm) | 1460×854 | 1460×1104 | 1460×1354 | 1460×1604 | 1460×1854 | 2110×1900 | 2110×2400 | |
| Reference weight(kgs) | 660 | 800 | 960 | 1220 | 1490 | 1800 | 2200 |
Application Fields
| Sort of Sewage | Type of Slurry | Slurry Inlet Consistency (ss %) | Polymer Power Consumption (Kg/Ton D.S.) | Water Contents Rate of Slurry Cake (%) |
| Paper&Pulp Sewage | Chemical Slurry | 2.0-5.0 | 2.0-4.0 | 64-78 |
| Activate Slurry | 1.5-3.0 | 3.0-5.0 | 75-84 | |
| Printing,Dyeing Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 76-84 |
| Activate Slurry | 1.0-2.0 | 3.0-5.0 | 80-85 | |
| Leather&Tannery Sewage | Chemical Slurry | 2.5-4.5 | 3.0-5.0 | 74-83 |
| Activate Slurry | 1.5-2.5 | 4.0-6.0 | 78-85 | |
| Elecro-Planting Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 72-84 |
| Metal-Processing Sewage | Chemical Slurry | 2.0-4.0 | 3.0-5.0 | 66-84 |
| Stone&Mine Sewage | Chemical Slurry | 5.0-10 | 3.0-5.0 | 45-75 |
| Food&Beverage Sewage | Activate Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Livestock Sewage | Anaerobic Fermentation | 3.0-6.0 | 5.0-8.0 | 75-83 |
| Butchery Sewage | Admixture Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 75-85 |
| City Mixed Raw Sewage | Surplus Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Admixture Slurry | 1.5-2.5 | 3.0-5.0 | 72-85 | |
| Excretion Sewage | Digestion Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 74-85 |
| Water Purifying Sewage | Chemical Slurry | 1.5-4.5 | 3.0-5.0 | 64-82 |

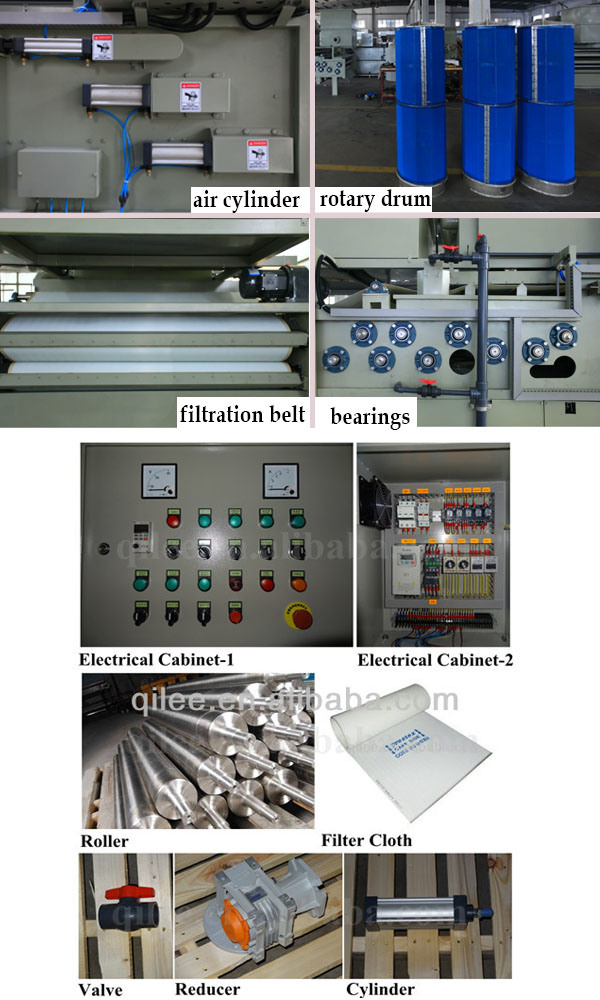

Product Details of belt filter press :
Application of belt filter press:
It can work for all kinds of industrial waste water:
1. Paper making, leather industry, livestock products industry, aquatic product industry, chemical
industry and food industry.
2. Sludge concentration treatment and dewatering treatment for municipal sewer, water clarification
plant .
3. Separating usage of food industry, chemical industry, mineral industry etc.

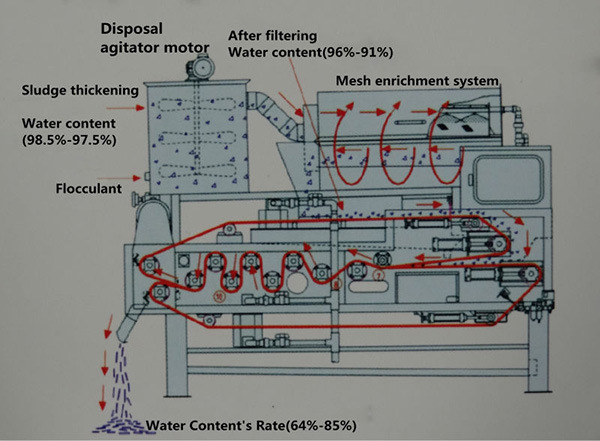

Treatment Flowchart of belt filter press :
Engineering project of sludge dewatering machine
About Us:
Shanghai QILEE Environmental Protection Equipment Co., Ltd. was established in 2006 as a professional manufacturer of water treatment equipment. It is a company combining research and development with production, sales and service. It adheres to the corporate philosophy of "Sustainable operation based on quality first"since its foundation.
Our main products include sludge dehydrator, chemical dosing system, agitator, oil skimmer, pump and so on. After years of effort, we have successfully grown as one of the best manufacturers in water treatment machinery in China.
Our new factory locates in Pudong District in Shanghai with convenient transportation. We brought in a series of new equipment for production in recent years. We pay much attention to details and stick to strict quality control system from raw material sourcing, processing, testing to packing.
We have CE and ISO 9001 certificate. Our customers spread all over the world, especially Africa, southeast Asia, Oceania, south America and so on. Our products sell well both home and abroad and enjoy good reputation because of our humanized design, good quality, competitive price and considerate service.
Our company for ten years as part of the customer :
A:How to select the right belt filter press?
A1:How about your sludge treatment capacity per hour(m3/hr)?
A2:How about your solid content or water content(%)?
A3:What is the character of your sludge?
A4:How about your dried sludge(D.S.)?
A5:How about your water content of sludge cake(%)?
