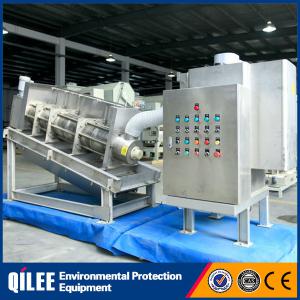

Sludge Dewatering Screw Filter Press Manufacturer for wastewater treatment equipment
Technical parameters:
Model | Dried Sludge Throghput | Sludge Flow Speed(m3/h) | ||||||
| QLD353 | Low | High | 2000mg/L | 5000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L |
~180kg/h | ~300kg/h | ~90 | ~36 | ~30 | ~15 | ~12 | ~6 |
Model | Screw Size | Distance Between Cake Outlet to the round | Mechnical Dimensions (mm) | Net weight | Processing weight | ||
L | W | H | |||||
QLD353 | Φ350×3 | 585 | 4420 | 2110 | 2250 | 3350kg | 4850kg |
Features of screw filter press :
1.Strong, heavy-duty mechanical design to overcome any upset condition and provide a long life with low maintenance.
2.have built-in self-cleaning system handles oily sludge with an extremely small amount of rinsing water.
3.almost enclosed work,processed fast and managed efficiently. toreduce
4.Very simple and quick assembly on site
5.24hours automatic operation.
Product Features of sludge screw filter press
1.Suitable for sludge dewatering of high/low consistency. When deal with low consistency sludge(2000mg/L), there is no need to build a thickening tank, storage pool. Reduce the cost and the release of phosphorus and Anaerobic stink.
2.There is no need to worry about jam up. Reduce the cleaning water consumption.
3.The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
4.The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.
5.Automatically working for 24 hours, reducing the labor strength of workers.
6.The slow running speed of screw shaft reduces the power consumption and noise.
7. It is made with stainless, extending the service life.
8. It is convenient for daily maintenance.
treatment effect:
City mixed raw sewage
Food & beverage industry
Chemical industry
Stone & mine sewage
Leather & tannery sewage
Paper & pulp sewage
Elecro-plating sewage
Pringting & dyeing sewage
Power plant
Petrochemical industry
Company Information
About Us:
Shanghai QILEE Environmental Protection Equipment Co., Ltd. was established in 2006 as a professional manufacturer of water treatment equipment. It is a company combining research and development with production, sales and service. It adheres to the corporate philosophy of "Sustainable operation based on quality first"since its foundation.
Our main products include sludge dehydrator, chemical dosing system, agitator, oil skimmer, pump and so on. After years of effort, we have successfully grown as one of the best manufacturers in water treatment machinery in China.
Our new factory locates in Pudong District in Shanghai with convenient transportation. We brought in a series of new equipment for production in recent years. We pay much attention to details and stick to strict quality control system from raw material sourcing, processing, testing to packing.
We have CE and ISO 9001 certificate. Our customers spread all over the world, especially Africa, southeast Asia, Oceania, south America and so on. Our products sell well both home and abroad and enjoy good reputation because of our humanized design, good quality, competitive price and considerate service.
Our company for ten years as part of the customer :
FAQ
Q:What's the application scope of screw filter press?
A:It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.
Q:What's the material of press?
A:It is SUS304.
Q:What's the equipment used together with sludge screw filter press?
A:Sludge pump, polymer dosing pump.
Q:How to choose the model?
A:Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
