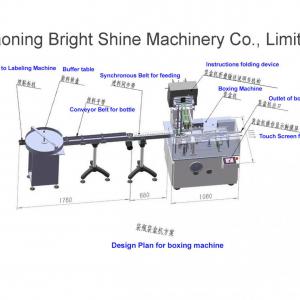

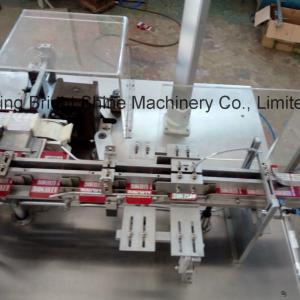

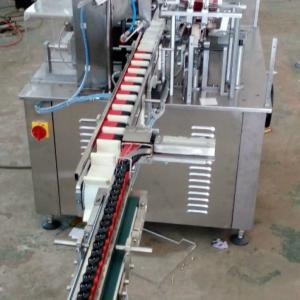

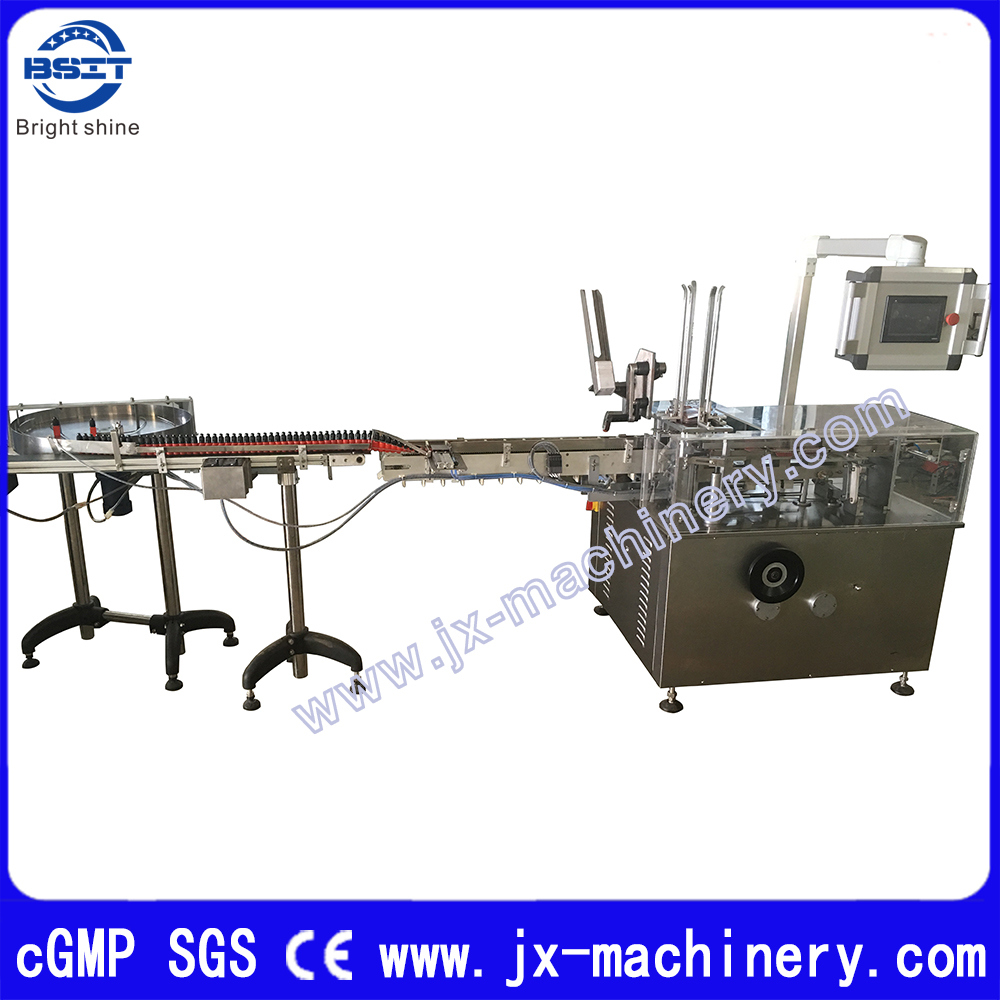

Automatic Box Cartoning Packing Machine for E-Cig Round Bottle
Feature:
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy.
Technical parameters:
Feature:
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy.
Technical parameters:
| Item | Parameters | |
| Encasing speed | 30-120 boxes/min | |
| Box | Quality requirement | 250-350g/ M*M [ Base on carton size ] |
| Dimension range ( L× W× H ) | ( 65-150 ) mm× ( 30-85 ) mm× ( 14-50 ) mm | |
| C | Quality requirement | 60-70g/ M*M |
| Unfolded leaflet specification ( L× W ) | ( 80-250 )mm× ( 90-170 )mm | |
| Fold range ( L× W ) | [ 1-4 ] Fold | |
| Compressed air | Working pressure | ≥ 0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension ( L× W× H ) | 2400 mm × 1140 mm × 1800 mm | |
| Machine weight | about 1200kg |
