Application:

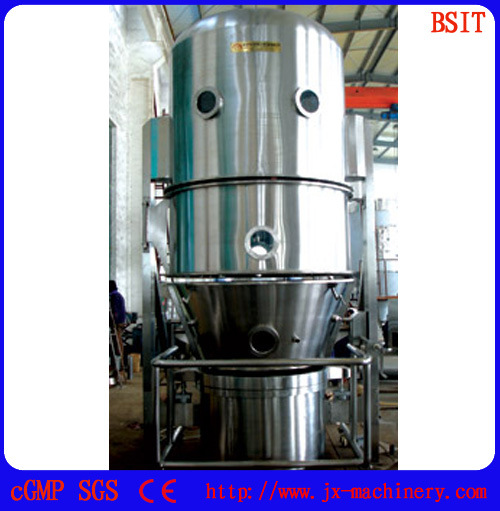

Fluidizing Drier Is Widely Used in Pharmacy, Chemicals, Food, Dye for Mixing and Drying of Powdery or Granular Wet Materials. The Machine Is Suitable for Drying Powder or Granule. In General, Its Speed Is 10 ~ 20 Times of Oven
It Is Composed of Air Heat-Exchanger, (Fluidizing) Container of Raw Material, Fluidizing House, Capturing House and Centrifugal Fan, and
1Cr18Ni9Ti Stainless Steel Is Used in Part That Contacts The Processed Material.
Features of Equipment
The Mixing and Drying of The Equipment Can Be Finished in Same Equipment. The Transfer of Mass and Heat Is Quick. Because of Operation at Negative Pressure, There Is No Flying Dust. The Equipment Has No Dead Corner. It Can Clean Is Fully and Without Cross Pollution. Its Heating May Use Steam, or Electric Heater. It Adopts Antistatic Filtering Material. The Lift of Filtering Bag Adopts Pneumatic Operation. So The Operation Is Safe. It Meets The Requirements of GMP
Technical Parameters:
| Machine type | 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | |
| Container | Content (L) | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 |
| Diameter (mm) | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | |
| Capability | Minimum (kg) | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 |
| Maximum (kg) | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | |
| Fan | Capacity (m 3 ) | 480 | 480 | 900 | 1500 | 3000 | 4500 | 6000 | 9000 |
| Pressure (mmH 2 o) | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | |
| Power (kw) | 2.2 | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | |
| Steam expenditure Kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | |
| Compressed air expenditure m 3 /min | 0.2 | 0.2 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | |
| Weight of the main body Kg | 250 | 300 | 700 | 900 | 1100 | 1300 | 1500 | 1800 | |
| Steam pressure Mpa | 0.3-0.6 | ||||||||
| Temperature | Adjustable from room temperature to 120 | ||||||||
| Working time Min | 20-60(Depending on the material processed) | ||||||||
| Field % | > 99% | ||||||||
| Noise dB(A) | < 70(Fan isolated from the main body) | ||||||||
| Components: 1. The main body includes: capturing house, injection house, container atomizer house, solution carrier. 2. The auxiliary machine include: fan, sound deadener, control system. 3. Dedustror recoverer (As customers required). |
