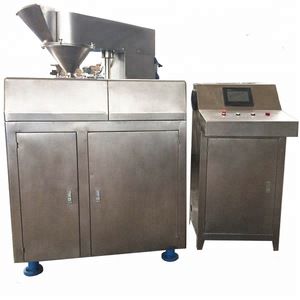

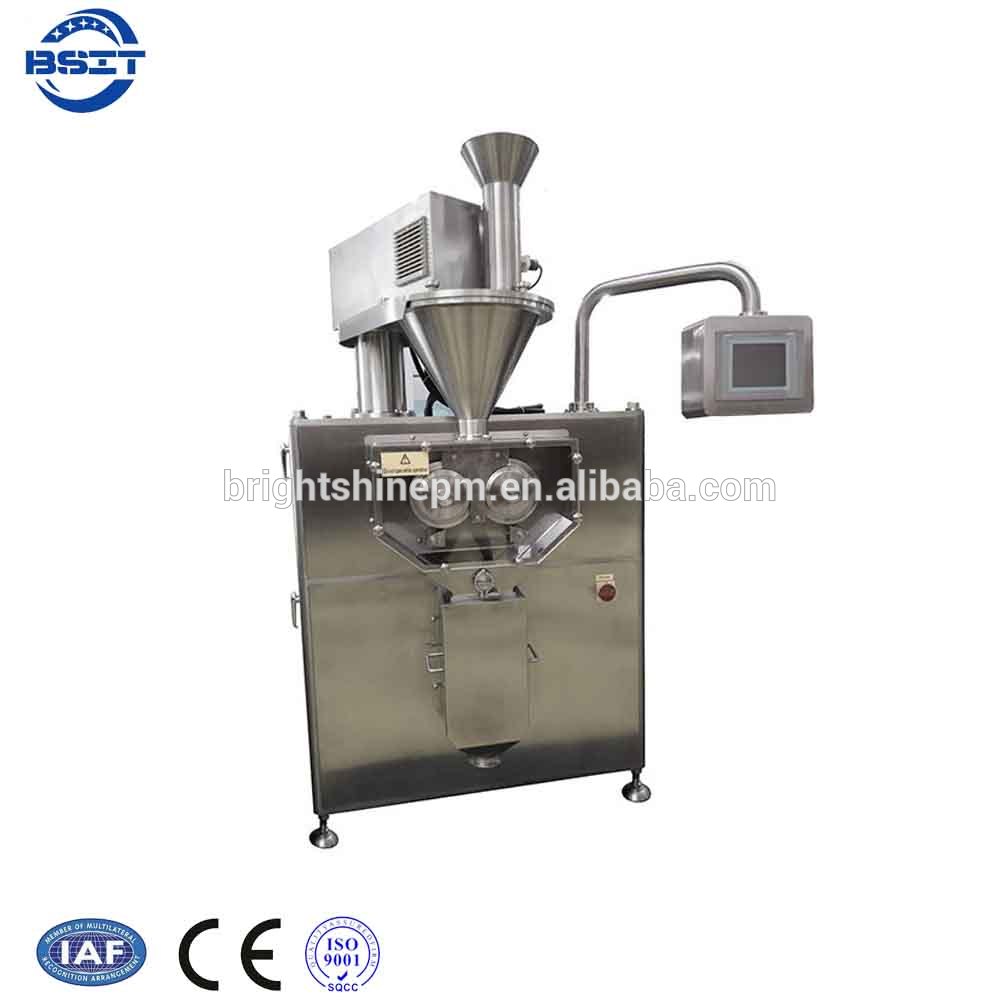

HG mineral powder hand roller compactor granulator with SUS304
Tag:dry hand roller compactor, dry roll press hand roller compactor, dry powder hand roller compactor equipment, pharmaceutical dry hand roller compactor, dry poweder hand roller compactor, pharmaceutical machine, pharmaceutical equipment, pharmaceutical machinery, fertilizer hand roller compactor machine, granulation machine pharmaceutical, hand roller compactor machine,mini hand roller compactor,wet granulation machine
Sample:
Technical Parameter
Model | HG-100 |
Granule size (mm) | 0.4~2.5 |
Max capacity(kg/h) | 100kg/h (difference materical that capacity has difference) |
foming pressure KN | 40~120 |
screw feeder rotate speed(rpm) | 20~86 |
roller rotate speed(rpm) | 7.4~23 |
second class hand roller compactor speed(rpm) | 50~186 |
Screw feeder motor power(KW) | 1.1 |
Roller motor power(KW) | 4 |
second class hand roller compactor motor power(KW) | 0.75 |
Hydraulic motor power(kW): | 1.1 |
LxWxH(mm) outside size: | 1400mmx1150mmx1950mm If addtion vacuum feeder height is 2450mm |
Main application:
The finished granules from this machine can be made into troches or capsules, etc. The hand roller compactor is mainly used by the trades of pharmaceutical, chemical, foodstuff, etc, especially suitable for the granulating of those materials that cannot be done by the wet granulating method.
1. Pharmacy: Troches, capsules
2. Foodstuff: Foodstuff granules, seasoning granules
3. Plastic: All kinds of shaped plastic granules
4. Chemical: Granules of activator, pigments and washing agent
Introduce:
HG Dryer-hand roller compactor compare with traditional vibrating hand roller compactor, wet-hand roller compactor, fluid-bed hand roller compactor machinery, it have powder material into hand roller compactor directly meet with customer request. Press material no need additional any intermediate and additive, after hand roller compactor size even, accumulate density increase, not only control pollution and also reduce other no necessary accessories, reduced by manufacture cost, at same time improved material appearance and flowality, in order to product next step and stock. Also control dissolubility, porosity and surface area advantage. As hand roller compactor shorten be extrusion. No long time heating process, so original material content don’t easy broken. Specialas for Heat sensitive product.

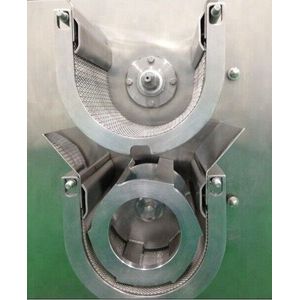

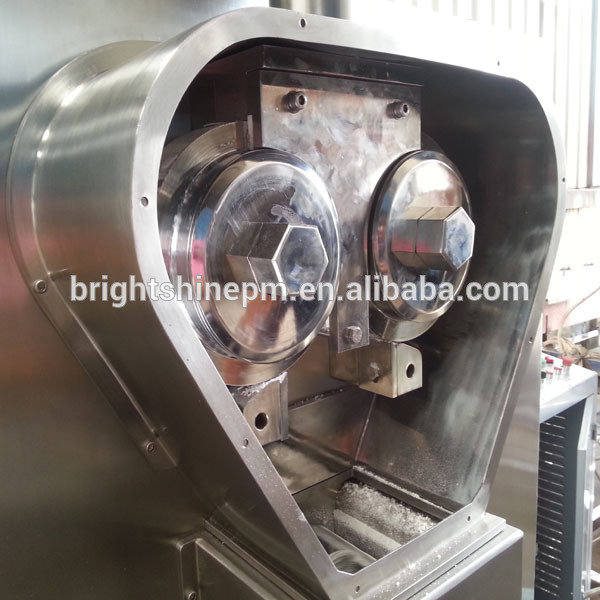

HG series dry-hand roller compactor is composed of as following: transfer feed system, extrusion system. The front cover system , water cooling system, hand roller compactor system.hydraulic system, engine block combination ,Cover plate assembly,Rotary screen system. Total machine design into body inside and body outside operation board. All driving parts and attached facilities be design inside of machine, working parts design at operation board outside contact with product. middle have multi sealing insulate, it will working at close sealing condition. Easy to dischare and cleaning contact with product. In order to protect deduster leakage, reduce pollution. Reduce puried area meet with pharmaceutical GMP request. We will supply FAT, SAT IQ,OQ,PQ document.
