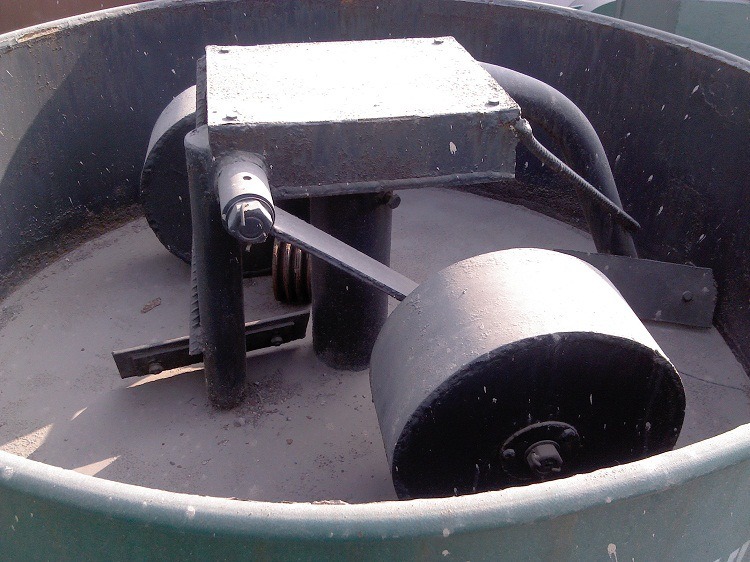

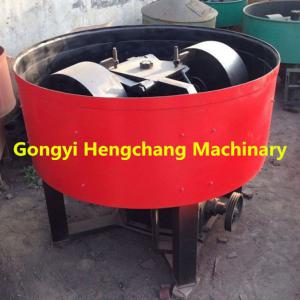

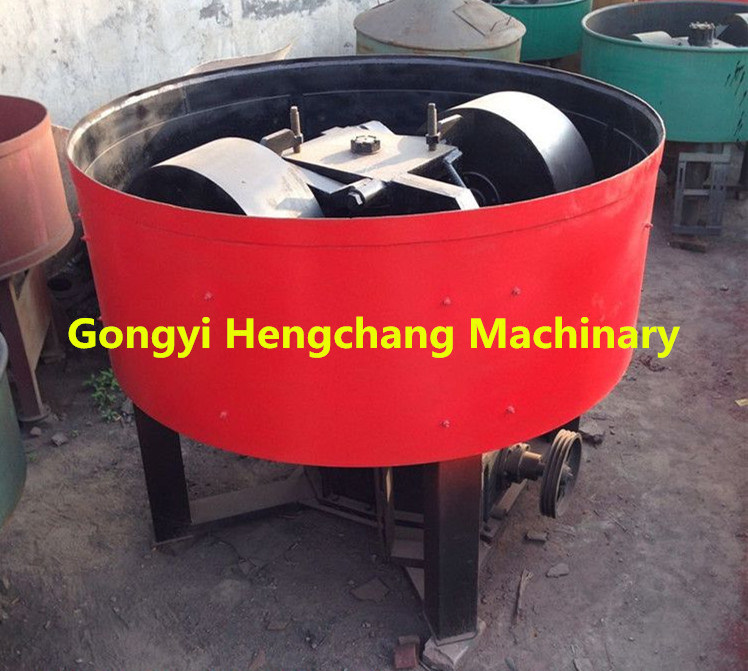

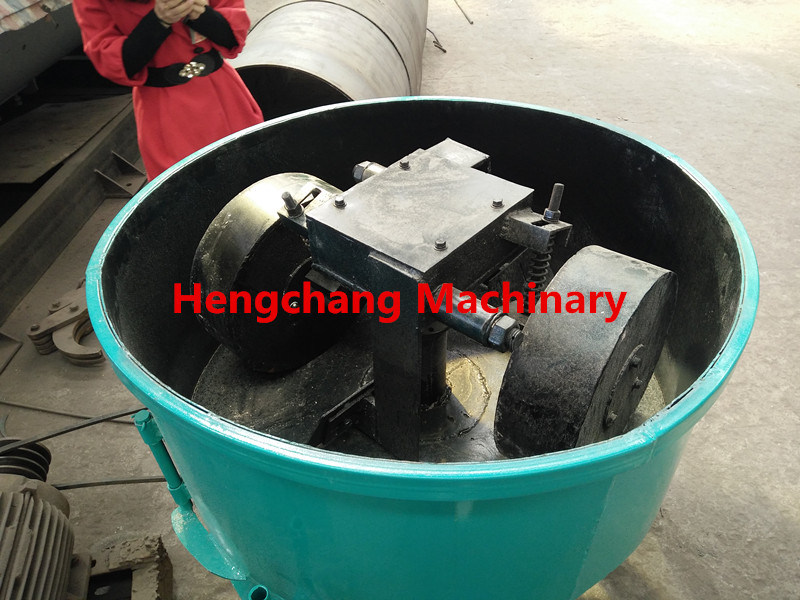

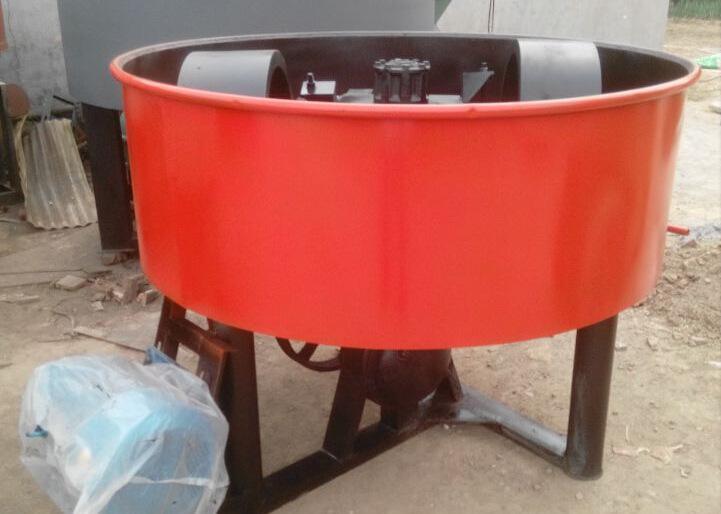

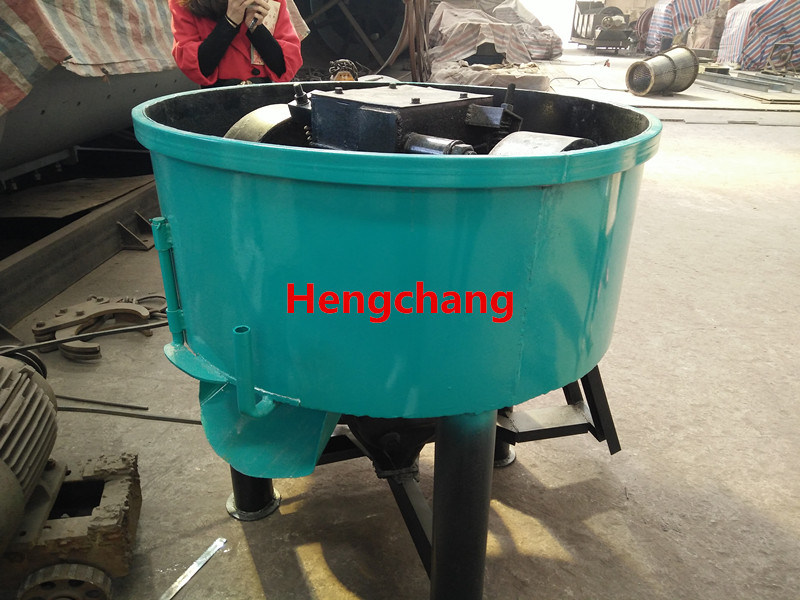

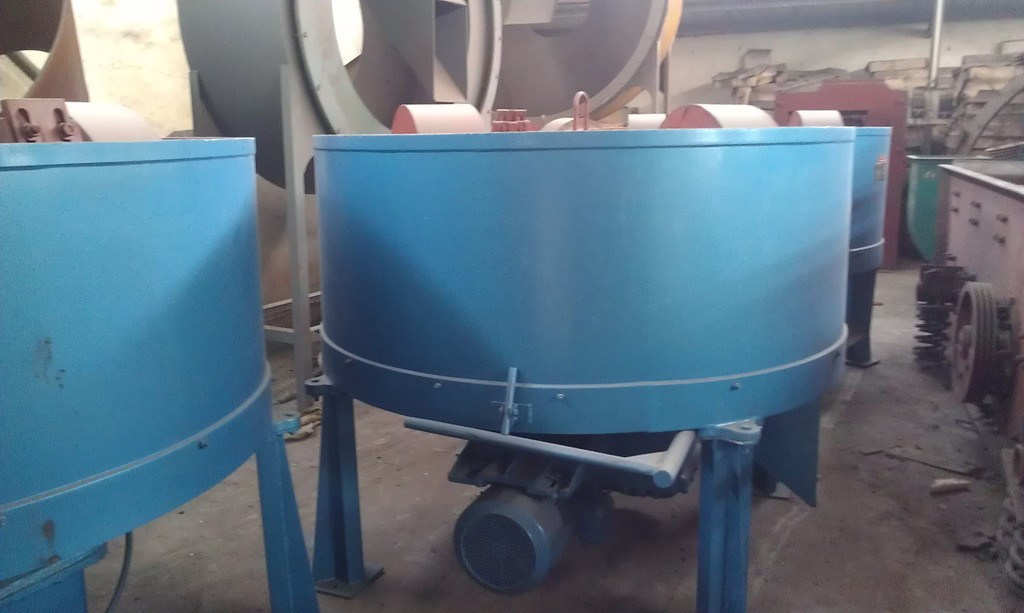

1.Product Application Of Charcoal powder roller grinding wheel mixer machine
Roller grinder is the integration machine of the wheel grinding and stirring. It grinds the materials once again after materials stirred to ensure the forming technical mixture. It has the features: good stirring effect, high efficiency, remarkable energy-saving, closed without powder, easy installation and maintenance, strong adaptability and other characteristics, widely used in unbrurned brick, autoclaved brick, refractories, ceramics, foundry, building materials and other industries.
2.Technical Parameters Of Charcoal powder roller grinding wheel mixer machine
3.Feature Of Charcoal powder roller grinding wheel mixer machine
Consist of three rollers fixed on the frame
Drived directly by the motor
Different rotation direction between rollers
With one roller forward, one backward, one quick while the other slow
With mid roller fixed, the other two rollers mounted on the slide by spring device.
The distance between three rollers is adjustable by hand wheel.
Material fed from space between front roller and mid roller
Material rolled out by the fast roll
With water for cooling to ensure finished products of good quality.
4.Working principle Of vertical roller grinder mill from henchang machinery
The pan fixed to the vertical shaft, which consists of the motor through reducer, pulleys and a pair of bevel gears after deceleration is rotated. DRUM pan with two on, their activities to cover the horizontal axis, respectively. Supported at both ends of the horizontal axis on the side of the bracket where the two bearings, is central to the activities set in the vertical shaft. The bearing housing along the side of the bracket in the guide groove slide up and down
5.Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
6.Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry
7.FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
8.Contact us
If you want to know more details, please contact me!!
Website:http://www.hcmachinary.com
Tel: +86-0371-86160152
Amanda
Roller grinder is the integration machine of the wheel grinding and stirring. It grinds the materials once again after materials stirred to ensure the forming technical mixture. It has the features: good stirring effect, high efficiency, remarkable energy-saving, closed without powder, easy installation and maintenance, strong adaptability and other characteristics, widely used in unbrurned brick, autoclaved brick, refractories, ceramics, foundry, building materials and other industries.
2.Technical Parameters Of Charcoal powder roller grinding wheel mixer machine
| Model | S110 | S112 | S114 | S116 | S118 | S120 | S125 |
| Disc Dia. (mm) | 1000 | 1220 | 1440 | 1600 | 1800 | 2000 | 2500 |
| Feeding Quantity (Kg) | 110 | 150 | 200 | 450 | 650 | 900 | 1700 |
| Stirring Time (min) | 3-8 | 3-5 | 3-5 | 2.5 | 3-5 | 2-5 | 2-5 |
| Capacity (t/h) | 1.5-2.5 | 1.5-3.0 | 4-5 | 10 | 13-15 | 20 | 40 |
| Shaft Speed (r/min) | 41 | 41/27 | 24 | 40 | 36.1 | 35 | 30 |
| Wheel Size (mm) | 666×127 | 670×140 | 700×180 | 670×210 | 750×230 | 800×260 | 1000×320 |
| Pressure (N) | 0-1078 | 0-1200 | 0-2000 | 0-4116 | 0-7000 | 0-8000 | 0-12000 |
| Power (Kw) | 4 | 4 | 7.5 | 20 | 22 | 37 | 75 |
| Weight (kg) | 900 | 1337 | 2000 | 4000 | 4720 | 5500 | 9000 |
3.Feature Of Charcoal powder roller grinding wheel mixer machine
Consist of three rollers fixed on the frame
Drived directly by the motor
Different rotation direction between rollers
With one roller forward, one backward, one quick while the other slow
With mid roller fixed, the other two rollers mounted on the slide by spring device.
The distance between three rollers is adjustable by hand wheel.
Material fed from space between front roller and mid roller
Material rolled out by the fast roll
With water for cooling to ensure finished products of good quality.
4.Working principle Of vertical roller grinder mill from henchang machinery
The pan fixed to the vertical shaft, which consists of the motor through reducer, pulleys and a pair of bevel gears after deceleration is rotated. DRUM pan with two on, their activities to cover the horizontal axis, respectively. Supported at both ends of the horizontal axis on the side of the bracket where the two bearings, is central to the activities set in the vertical shaft. The bearing housing along the side of the bracket in the guide groove slide up and down
5.Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
6.Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry
7.FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
8.Contact us
If you want to know more details, please contact me!!
Website:http://www.hcmachinary.com
Tel: +86-0371-86160152
Amanda
