Application:

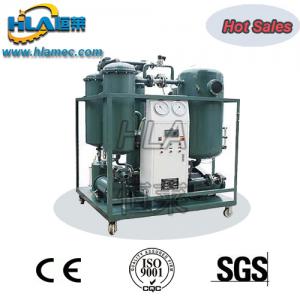

TVP turbine oil purifier is produced as professional purification system of lube oil in turbines, during working of turbines, it will make much impurities and moisture easily, this makes the performance of turbines breakdown often, increasing maintenance cost. Our TVP turbine oil purifier is mainly designed for breaking emulsion, removing water, gas and impurities dissolved in oil, so the increasing the efficiency of equipment and reduce cost, TVP turbine oil purifier also can be used as online purification system for stream turbine, hydraulic turbine etc.
Features:
1. Best and high efficient filtering unit with latest molecular adsorption technology.
2. High quality and imported dewatering, degassing components
3. Special coalescer technology with the functions of broken emulsion
4. Fully automatic operation system with interlocked protective device ensure turbine oil purifier running well and safety.
Technical specification
TVP turbine oil purifier is produced as professional purification system of lube oil in turbines, during working of turbines, it will make much impurities and moisture easily, this makes the performance of turbines breakdown often, increasing maintenance cost. Our TVP turbine oil purifier is mainly designed for breaking emulsion, removing water, gas and impurities dissolved in oil, so the increasing the efficiency of equipment and reduce cost, TVP turbine oil purifier also can be used as online purification system for stream turbine, hydraulic turbine etc.
Features:
1. Best and high efficient filtering unit with latest molecular adsorption technology.
2. High quality and imported dewatering, degassing components
3. Special coalescer technology with the functions of broken emulsion
4. Fully automatic operation system with interlocked protective device ensure turbine oil purifier running well and safety.
Technical specification
| Model | TVP010 | TVP020 | TVP030 | TVP050 | TVP100 | TVP150 | TVP200 | TVP300 | |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working vacuum | -0.06~-0.095 Mpa | ||||||||
| Working pressure | ≤ 0.4 Mpa | ||||||||
| Temperature range | 0-100ºC | ||||||||
| Water content | ≤30 ppm | ||||||||
| Gas content | ≤ 0.1% | ||||||||
| Demulsifying value | ≤15min(GB/F7035) | ||||||||
| Cleanness | NAS 6 grade | ||||||||
| Filtering precision | ≤1 micron | ||||||||
| Continuous work | 100 hr | ||||||||
| No failure running | ≥5000 hr | ||||||||
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | ||||||||
| Working noise | 65 dB | ||||||||
| Heating power (kw) | 24 | 24 | 30 | 40 | 60 | 90 | 145 | 160 | |
| Total power (kw) | 27 | 27 | 33.5 | 44 | 65 | 97 | 157 | 178 | |
| Inlet/outlet(mm) | 25 | 25 | 32 | 32 | 48 | 50 | 58 | 65 | |
| Weight (kg) | 300 | 350 | 400 | 500 | 800 | 1000 | 1200 | 1350 | |
| Dimension (mm) | L | 1200 | 1250 | 1400 | 1500 | 1650 | 1750 | 1900 | 2000 |
| W | 600 | 710 | 850 | 950 | 1100 | 1200 | 1250 | 1350 | |
| H | 1280 | 1300 | 1300 | 1400 | 1800 | 1850 | 1950 | 2100 |
