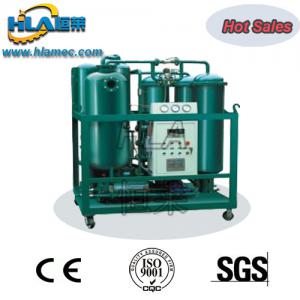

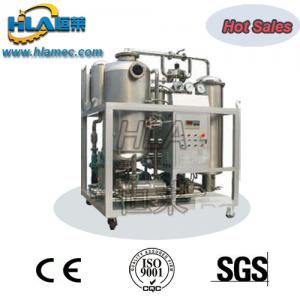

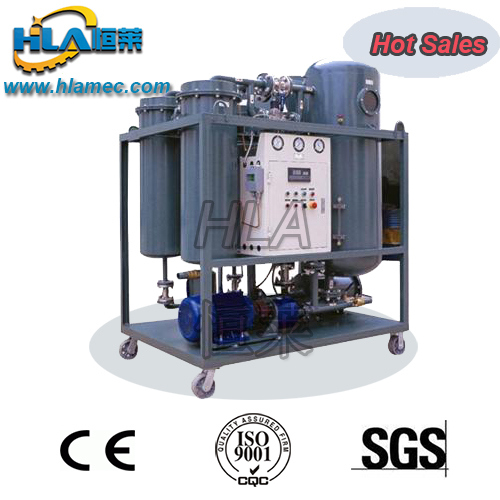

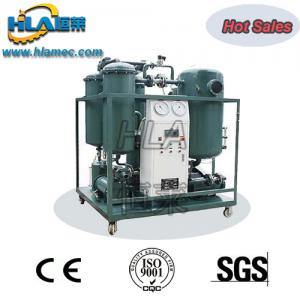

High Vacuum Turbine Oil Purification System
Application:
Series TVP turbine oil purification system has the basic functions of dehydration and depth dehydration, removing impurities, gelatin, acid, breaking emulsion, it adopts the fuzzy control technology, germany electrics, reliable operation and long life time. TVP turbine oil purification system is good online oil purification systems for turbines of power station, it has the overpressure protection, overload protection, automatic protection of dry heating, automatic oil control function. TVP turbine oil purification system can help user reduce the maintenance cost and improve the working efficiency of turbines.
Features:
1. TVP turbine oil purifier has the functions of breaking emulsion, removing water, gas and impurities dissolved in oil.
2. High capacity coalescing filters elements and micro filter elements
3. Simple and reliable operation, lower working noise.
4. The TVP turbine oil purification system realizes low costs for maintenance and environment protection.
Technical specification
Display of components
Application:
Series TVP turbine oil purification system has the basic functions of dehydration and depth dehydration, removing impurities, gelatin, acid, breaking emulsion, it adopts the fuzzy control technology, germany electrics, reliable operation and long life time. TVP turbine oil purification system is good online oil purification systems for turbines of power station, it has the overpressure protection, overload protection, automatic protection of dry heating, automatic oil control function. TVP turbine oil purification system can help user reduce the maintenance cost and improve the working efficiency of turbines.
Features:
1. TVP turbine oil purifier has the functions of breaking emulsion, removing water, gas and impurities dissolved in oil.
2. High capacity coalescing filters elements and micro filter elements
3. Simple and reliable operation, lower working noise.
4. The TVP turbine oil purification system realizes low costs for maintenance and environment protection.
Technical specification
| Model | TVP010 | TVP020 | TVP030 | TVP050 | TVP100 | TVP150 | TVP200 | TVP300 | |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working vacuum | -0.06~-0.095 Mpa | ||||||||
| Working pressure | ≤ 0.4 Mpa | ||||||||
| Temperature range | 0-100ºC | ||||||||
| Water content | ≤30 ppm | ||||||||
| Gas content | ≤ 0.1% | ||||||||
| Demulsifying value | ≤15min(GB/F7035) | ||||||||
| Cleanness | NAS 6 grade | ||||||||
| Filtering precision | ≤1 micron | ||||||||
| Continuous work | 100 hr | ||||||||
| No failure running | ≥5000 hr | ||||||||
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | ||||||||
| Working noise | 65 dB | ||||||||
| Heating power (kw) | 24 | 24 | 30 | 40 | 60 | 90 | 145 | 160 | |
| Total power (kw) | 27 | 27 | 33.5 | 44 | 65 | 97 | 157 | 178 | |
| Inlet/outlet(mm) | 25 | 25 | 32 | 32 | 48 | 50 | 58 | 65 | |
| Weight (kg) | 300 | 350 | 400 | 500 | 800 | 1000 | 1200 | 1350 | |
| Dimension (mm) | L | 1200 | 1250 | 1400 | 1500 | 1650 | 1750 | 1900 | 2000 |
| W | 600 | 710 | 850 | 950 | 1100 | 1200 | 1250 | 1350 | |
| H | 1280 | 1300 | 1300 | 1400 | 1800 | 1850 | 1950 | 2100 |
Display of components
