Application:

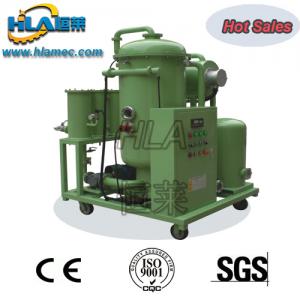

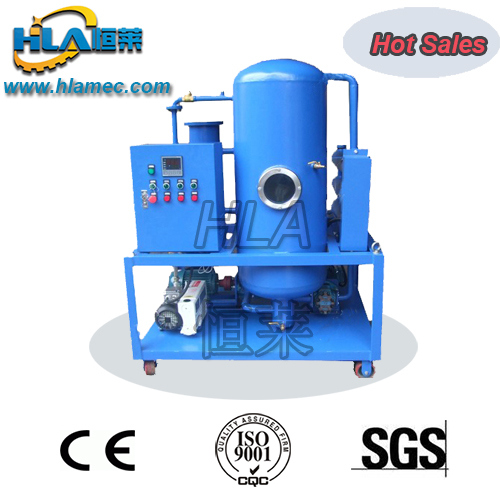

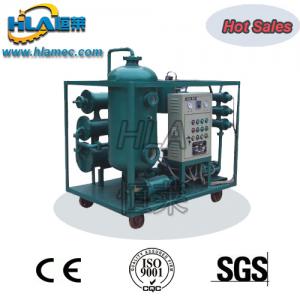

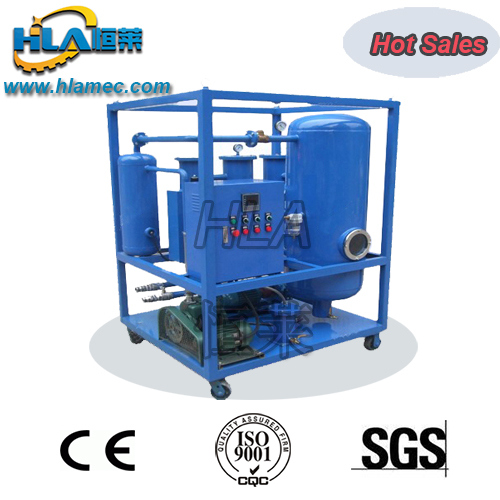

LVP-series lubricant oil filter machine is designed and produced for cleaning of used industrial oil, such as hydraulic oil, gear oil, compressor oil etc., It combined latest coalescer and vacuum technology to quickly remove large amounts of free water and trace moisture from lube oil. Meanwhile, the high precise filter elements of LVP lubricant oil filter machine can remove 95% particles, which can reach ISO 15/13/10 Cleanliness Level. The waste oil can be reused in industrial equipment after filtration by LVP lubricant oil filter machine, which can save maintenance cost and improve the performance of your industrial equipment.
Features:
1. Breaking emulsion, dewatering, removing particles
2. High efficient vacuum vessel with coalescer elements
3. Latest duplex-Stereo film evaporating technology
4. Best interlocked protective system make lube oil purifier works safely.
Technical specification
| Model | LVP010 | LVP020 | LVP030 | LVP050 | LVP100 | LVP150 | LVP200 | LVP300 | |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working vacuum | -0.06~-0.095 Mpa | ||||||||
| Working pressure | ≤ 0.4 Mpa | ||||||||
| Temperature range | 20-80ºC | ||||||||
| Water content | ≤20 ppm | ||||||||
| Gas content | ≤ 0.1% | ||||||||
| Demulsifying value | ≤8 min(GB/F7035) | ||||||||
| Cleanness | NAS 6 grade | ||||||||
| Filtering precision | ≤1 micron | ||||||||
| Continuous work | 100 hr | ||||||||
| No failure running | ≥5000 hr | ||||||||
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | ||||||||
| Working noise | 65 dB | ||||||||
| Heating power (kw) | 24 | 24 | 30 | 40 | 60 | 90 | 145 | 160 | |
| Total power (kw) | 27 | 27 | 33.5 | 44 | 65 | 97 | 157 | 178 | |
| Inlet/outlet(mm) | 25 | 25 | 32 | 32 | 48 | 50 | 58 | 65 | |
| Weight (kg) | 300 | 350 | 400 | 500 | 800 | 1000 | 1200 | 1350 | |
| Dimension (mm) | L | 1100 | 1230 | 1250 | 1500 | 1650 | 1750 | 1900 | 2000 |
| W | 800 | 810 | 850 | 950 | 1000 | 1200 | 1250 | 1350 | |
| H | 1250 | 1260 | 1300 | 1400 | 1600 | 1750 | 1950 | 2100 |
