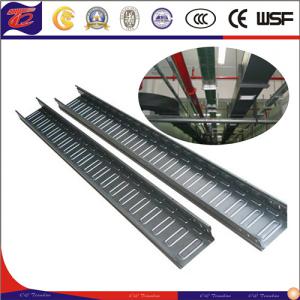

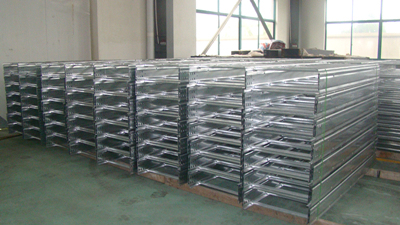

XQJ-T Ladder tray has the cables supported by a traverse bar, similarly to the rungs of a ladder. Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water. Tray covers for use outdoors or in dusty locations may have a peaked shape to shed debris including dust, ice or snow.
Intruduction
In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an
alternative to open wiring or electrical conduit systems, andare commonly used for
cable management in commercial and industrial construction.
Application range
It is a fully enclosed cable tray. It is applicable for telephone or computer network
cables, communication cables, and other sensitive systems control cables.
It has a good results for shielding interference for control cables and protecting the
cables from heavy corrosion in the environment.
Advantage
* Light weight
* Big loads
* Attractive appearance
* Simple structure
* Easy installation
* Dust-proof
company information
Chongqing Tianbao was committed to supply the most suitable products for our customers since 2000, in which it was established in Chongqing,China.
We are supplying the high quality products including:Crane electrification system products: New type flexible jointless compact insulted copper conductor, PVC or Aluminum shell enclosed copper conductor rail, PVC or aluminum shell single poleinsulated copper conductor; Building electrification system compact or airinsulated copper or aluminum busbar trunking system; Factory or warehouse illumination: 5 poles or 7 poles PVC or aluminum shell conductor rail
if you are interested in our products ,please contcat us freely.
Intruduction
In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an
alternative to open wiring or electrical conduit systems, andare commonly used for
cable management in commercial and industrial construction.
Application range
It is a fully enclosed cable tray. It is applicable for telephone or computer network
cables, communication cables, and other sensitive systems control cables.
It has a good results for shielding interference for control cables and protecting the
cables from heavy corrosion in the environment.
Advantage
* Light weight
* Big loads
* Attractive appearance
* Simple structure
* Easy installation
* Dust-proof
| Model | b(mm) | h(mm) | Weight(kg) | |
XQJ-T-01 Cable Tray | -6-2 | 200 | 60 | 13.7 |
| -10-2 | 100 | 17.96 | ||
| -15-2 | 150 | 25.97 | ||
| -6-3 | 300 | 60 | 14.85 | |
| -10-3 | 100 | 18.84 | ||
| -15-3 | 150 | 28.31 | ||
| -6-4 | 400 | 60 | 23.2 | |
| -10-4 | 100 | 27.29 | ||
| -15-4 | 150 | 33.25 | ||
| -6-5 | 500 | 60 | 25.7 | |
| -10-5 | 100 | 29.8 | ||
| -15-5 | 150 | 35.75 | ||
| -6-6 | 600 | 60 | 28.22 | |
| -10-6 | 100 | 32.3 | ||
| -15-6 | 150 | 38.02 | ||
| -6-8 | 800 | 60 | 31.96 | |
| -10-8 | 100 | 37.76 | ||
| -15-8 | 150 | 44.46 | ||
| Remark:h=60,100 is single row connect hole, h=150 is double row connect holes. |
