Hot-DIP Galvanized Steel Cable Ladder Tray

Hot-dip Galvanized Steel Cable Ladder TrayXQJ-T Ladder tray has the cables supported by a traverse bar, similarly to the rungs of a ladder. Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water. Tra

Technical Feature

  • 10000 Meters Per Month
  • Ply Wood
  • L/C, T/T, Paypal, Western Union
  • CCC, ISO
  • Without Hole
  • Antimagnetic, Easy Installation, Light Weight, Dustproof, Corrosion Resistance
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
XQJ
Width
200-800mm
Side Rail Height
60-200mm
Max. Working Load
50-150kg
Standard Length
6m
Trademark
Tianbao
Specification
ISO, CCC
Origin
Chongqing

DETAIL DESCRIPTION

Hot-dip Galvanized Steel Cable Ladder Tray

XQJ-T Ladder tray has the cables supported by a traverse bar, similarly to the rungs of a ladder. Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water. Tray covers for use outdoors or in dusty locations may have a peaked shape to shed debris including dust, ice or snow.



-Features

1. High strength, insulativity, inflaming retarding and corrosion resisting

2. Ligth weight

3. Low cost

4. Easy to install

5. With long lifetime



-Specification

Modelb(mm)h(mm)Weight(kg)
XQJ-T-01-6-22006013.7
-10-210017.96
-15-215025.97
-6-33006014.85
-10-310018.84
-15-315028.31
-6-44006023.2
-10-410027.29
-15-415033.25
-6-55006025.7
-10-510029.8
-15-515035.75
-6-66006028.22
-10-610032.3
-15-615038.02
-6-88006031.96
-10-810037.76
-15-815044.46
Remark:h=60,100 is single row connect hole, h=150 is double row connect holes

Main parts of XQJ Cable Ladder Tray:

1.Straight segments

2.Horizontal elbows(Various shapes including tees and crosses.)

3.Supporting arm

4.Hanger bracket

5.Connection accessories

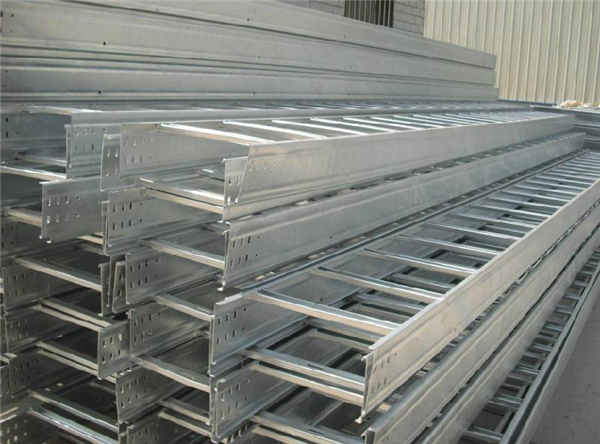

Hot-DIP Galvanized Steel Cable Ladder Tray
Application
Hot-DIP Galvanized Steel Cable Ladder Tray
