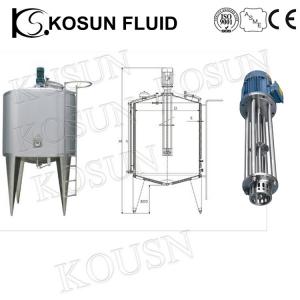

1000l Stainless Steel vertical Jacketed cooling Milk mixing Tank agitator
The milk mix holding tank is mainly composed of the body, agitator, cooling unit and electric control cabinet. The body is made of stainless steel, with inner mirror polish, being difficult dirt accumulation, corrosion resistance and easy CIP cleaning. The insulation cladding is filled with rigid polyfoam of lower heat conductivity, being light and with good heat insulation.
The milk holding tank is mainly used in cooling to storage sweat milk or other liquid . It absorbs international advanced technology , adopts improving compress machine and safety and protection system , micro computer monitor , imported advanced technique and equipment such as polyurethane bubbling , honeycomb board evaporator . So it is the ideal cooling and storage equipment for pasture , milk station , milk factory , and beverage factory and pharmacy industry .
Rapid and efficient milk cooling is essential for preserving milk quality. Milk leaves the udder at approximately 35°C and the heat in fresh milk must be quickly removed. Milk retains a natural resistance to bacteria immediately after extraction, but only rapid cooling to a storage temperature of around 4°C to 6°C, prevents or minimizes further micro-organism growth. We offers most comprehensive range of technical, on-farm milk cooling equipment globally, because we recognize the importance of effective cooling to quality milk production.
Fixed with the Dabfoss compressor imported US, automatic mixer, electrical auto control and CIP cleaning system on the cooling tanks.

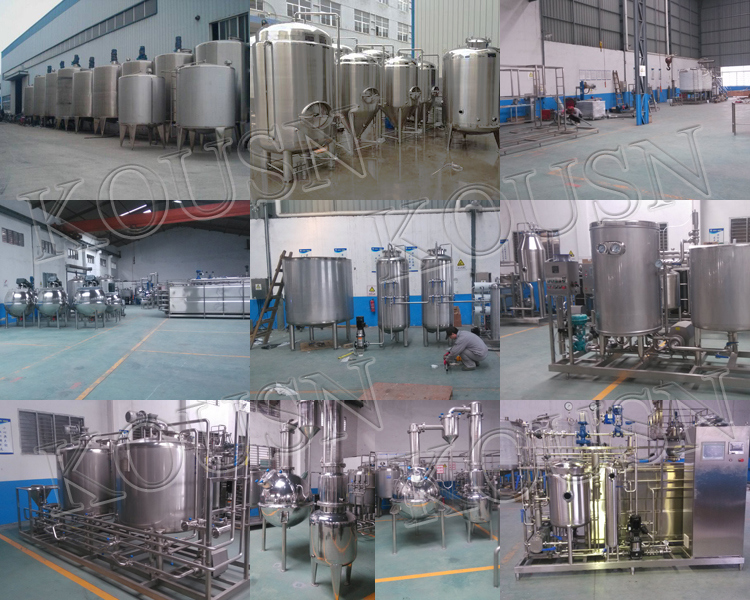

Our factory
Certification
The milk mix holding tank is mainly composed of the body, agitator, cooling unit and electric control cabinet. The body is made of stainless steel, with inner mirror polish, being difficult dirt accumulation, corrosion resistance and easy CIP cleaning. The insulation cladding is filled with rigid polyfoam of lower heat conductivity, being light and with good heat insulation.
The milk holding tank is mainly used in cooling to storage sweat milk or other liquid . It absorbs international advanced technology , adopts improving compress machine and safety and protection system , micro computer monitor , imported advanced technique and equipment such as polyurethane bubbling , honeycomb board evaporator . So it is the ideal cooling and storage equipment for pasture , milk station , milk factory , and beverage factory and pharmacy industry .
Rapid and efficient milk cooling is essential for preserving milk quality. Milk leaves the udder at approximately 35°C and the heat in fresh milk must be quickly removed. Milk retains a natural resistance to bacteria immediately after extraction, but only rapid cooling to a storage temperature of around 4°C to 6°C, prevents or minimizes further micro-organism growth. We offers most comprehensive range of technical, on-farm milk cooling equipment globally, because we recognize the importance of effective cooling to quality milk production.
Fixed with the Dabfoss compressor imported US, automatic mixer, electrical auto control and CIP cleaning system on the cooling tanks.
| Model | Capacity(L) | Cooling Capacity(W) | Stirring Speed( R/MIN) | Power(KW) | Dimension(L*M*H) |
| TTC-F-0.5 | 500 | 3500 | 36(24) | 1.5 | 2200*1350*1150 |
| TTC-F-1 | 1000 | 6900 | 36(24) | 3 | 2750*1150*1500 |
| TTC-F-1.5 | 1500 | 10000 | 36(24) | 4 | 3000*1350*1550 |
| TTC-F-2 | 2000 | 13000 | 36(24) | 5 | 3200*1500*1600 |
| TTC-F-3 | 3000 | 17800 | 36(24) | 6.5 | 3500*1650*1700 |
| TTC-F-5 | 5000 | 34000 | 36(24) | 13 | 4000*1950*2000 |
| TTC-F-6 | 6000 | 34000 | 36(24) | 13 | 4200*2200*2100 |
| TTC-F-8 | 8000 | 42000 | 36(24) | 18 | 4800*2400*2400 |
| TTC-F-10 | 10000 | 65000 | 36(24) | 24 | 5000*2600*2500 |
