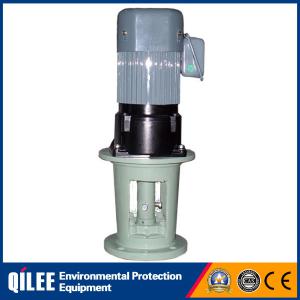

Chemical Industrial Mixing Equipment Automatic Agitator

chemical industrial mixing equipment automatic agitatorTechnical Data of vertical agitator :ModlePowerReduction RatioRotate SpeedShaft LengthShaft DiameterBlade Diameter(mm)Maximum Volume(L)QLJ12-37-110.37111271500253002500-1200QLJ12-37-171782350QLJ1

Technical Feature

  • Shanghai, China
  • 500 Pieces/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Agitator
  • Automatic Agitator
  • Spiral
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~600

PRIMARY PARAMETERS

Model NO.
QLJ20-55-11
Layout Type
Vertical Agitator
Additional Capabilities
Milling
Operating type
Continuous Operating
Condition
New
Power
0.55kw
Speed Ratio
11
Rotating Speed
134rpm
Materials
SS304 / 316
Diameter of Shaft
25mm
Diameter of Impeller
350mm
Length of Shaft
1500mm
Customerization
Yes
Thick Liquid
1800L
Thin Liquid
3500L
Trademark
QILEE
Transport Package
Standard Export Wooden Cases
Specification
220/380V
Origin
Shanghai

DETAIL DESCRIPTION

chemical industrial mixing equipment automatic agitator

Chemical Industrial Mixing Equipment Automatic Agitator


Technical Data of vertical agitator :

Modle

Power

Reduction Ratio

Rotate Speed

Shaft Length

Shaft Diameter

Blade Diameter(mm)

Maximum Volume(L)

QLJ12-37-11

0.37

11

127

1500

25

300

2500-1200

QLJ12-37-17

17

82

350

QLJ12-37-23

23

60

400

QLJ12-37-29

29

48

600

QLJ12-37-35

35

40

700

QLJ12-37-43

43

32

800

QLJ12-37-59

59

23

900

QLJ20-55-11

0.55

11

134

1500

25

350

3500-1800

QLJ20-55-17

17

88

400

QLJ20-55-23

23

65

450

QLJ20-55-29

29

51

550

QLJ20-55-35

35

43

650

QLJ20-55-43

43

35

750

QLJ20-55-59

59

25

900

QLJ30-75-11

0.75

11

134

1500

30

350

5000-2500

QLJ30-75-17

17

88

400

QLJ30-75-23

23

65

550

QLJ30-75-29

29

51

700

QLJ30-75-35

35

43

800

QLJ30-75-43

43

35

900

QLJ30-75-59

59

25

1000

QLJ30-150-11

1.5

11

134

2000

35

450

10000-5000

QLJ30-150-17

17

88

500

QLJ30-150-23

23

65

600

QLJ40-150-29

29

51

800

QLJ40-150-35

35

43

900

QLJ40-150-43

43

35

1000

QLJ50-150-59

59

25

1200

QLJ50-150-71

71

21

1400

QLJ50-150-87

87

17

1600

QLJ40-220-11

2.2

11

134

2000

40

500

15000-7500

QLJ40-220-17

17

88

650

QLJ40-220-23

23

65

750

QLJ40-220-29

29

51

950

QLJ40-220-35

35

43

1000

QLJ40-220-43

43

35

1100

QLJ50-220-59

59

25

1350

QLJ50-220-71

71

21

1500

QLJ50-220-87

87

17

1700

Chemical Industrial Mixing Equipment Automatic Agitator


Chemical Industrial Mixing Equipment Automatic Agitator


Advantage of vertical agitator Chemical Industrial Mixing Equipment Automatic Agitator
  • Smooth running,evenly mixing.
  • Stainless steel design for paddle and axis,which make sure a long service time.
  • Carrying the strong support for agitator,suitable to liquid mixing for large and deep water.
Application Field of vertical agitator :

  • Suitable to mixing tank,reaction tank of water supply and sewage engineering,and all kinds of drugs's agitation in mixing and reaction process.


Seller's Warm Tips:


A:How to select the right chemical industry agitator?
A1:How large about your tank's volume?
A2:How about your mixing capacity?
A3:How about your motor's runing speed?
A4:What's the characters of your mixture?Liquid or Powder?


About Us:

  Shanghai QILEE Environmental Protection Equipment Co., Ltd. was established in 2006 as a professional manufacturer of water treatment equipment. It is a company combining research and development with production, sales and service. It adheres to the corporate philosophy of "Sustainable operation based on quality first"since its foundation.

  Our main products include sludge dehydrator, chemical dosing system, agitator, oil skimmer, pump and so on. After years of effort, we have successfully grown as one of the best manufacturers in water treatment machinery in China.


Chemical Industrial Mixing Equipment Automatic Agitator

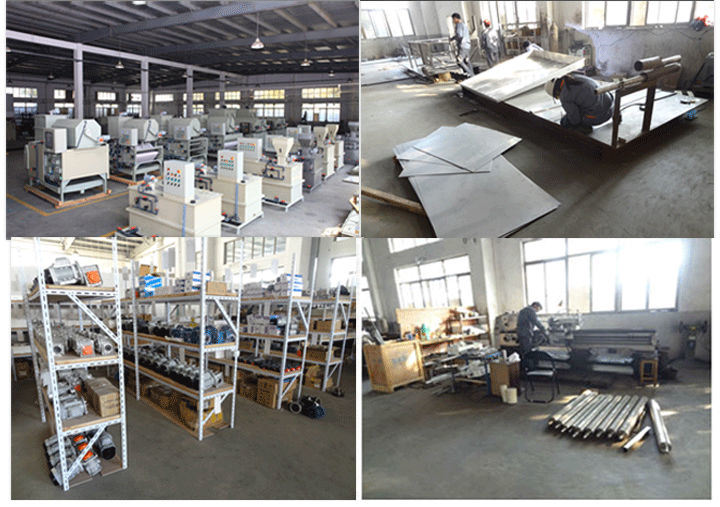

  Our new factory locates in Pudong District in Shanghai with convenient transportation. We brought in a series of new equipment for production in recent years. We pay much attention to details and stick to strict quality control system from raw material sourcing, processing, testing to packing.

  We have CE and ISO 9001 certificate. Our customers spread all over the world, especially Africa, southeast Asia, Oceania, south America and so on. Our products sell well both home and abroad and enjoy good reputation because of our humanized design, good quality, competitive price and considerate service.



Our company for ten years as part of the customer :

Chemical Industrial Mixing Equipment Automatic Agitator

FAQ

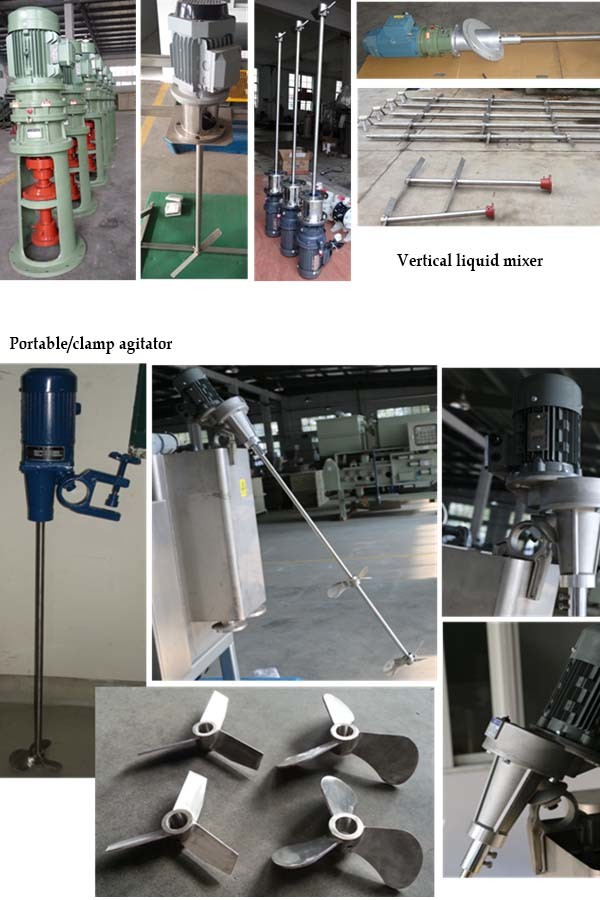

Q: The normal agitator types?
A:Vertical type, portable type, side entry type.

Q:Could you make pneumatic agitator?
A:Yes, we could make electric agitator and pneumatic agitator.

Q: What's the material of agitator?
A:Our standard material for agitator is SUS304, according to the media and requirements of customer, we would suggest if it needs to be made by SUS316 or needs rubber coating.

Q: What's the motor of agitator?
A:We would choose the motor brand according to customer advice, and suggest if it needs ex-proof motor according to media and application site.

Q:How to choose the model?
A:Advise the mixing media, dimension of tank, type and other special technical data, then we will design and choose the suitable model for you.
