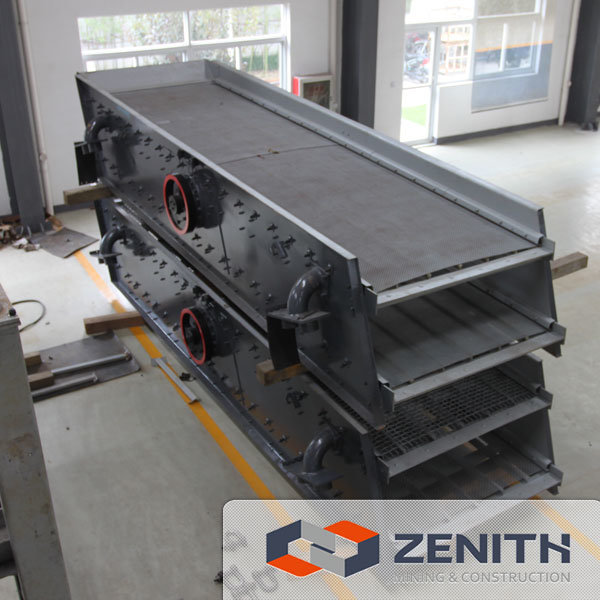

vibrating sieve stone introduction

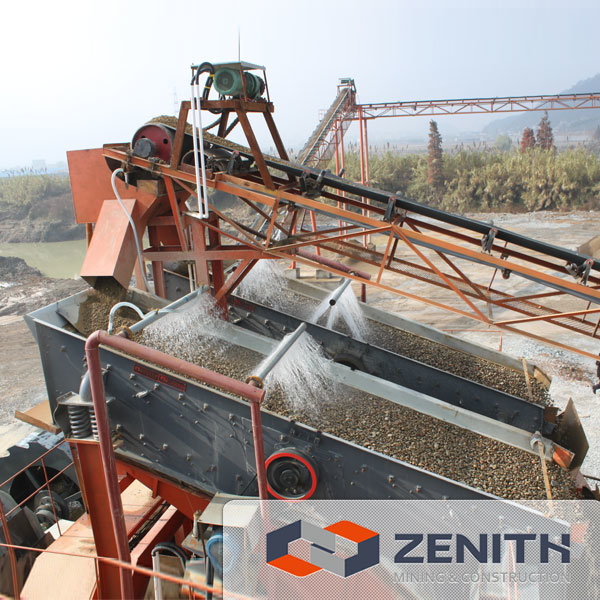

vibrating sieve stone are used to separate materials into various sizes for further processing. Or for end use. Depending on our need. The material is separated by passing it through a vibrating "screen box" which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.
vibrating sieve stone Features:
1) High screening efficiency
2) High capacity and reliability
3) Long bearing lifetime
4) Easy maintenance
vibrating sieve stone application
vibrating sieve stone are manufactured by introducing German technology, suit for screening of sandstone material for stone quarry, also for product classification for coal preparation, ore beneficiation, building material, electric power and chemical industry.
vibrating sieve stone technical data:
vibrating sieve stone are used to separate materials into various sizes for further processing. Or for end use. Depending on our need. The material is separated by passing it through a vibrating "screen box" which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.
vibrating sieve stone Features:
1) High screening efficiency
2) High capacity and reliability
3) Long bearing lifetime
4) Easy maintenance
vibrating sieve stone working principle:
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. They were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
vibrating sieve stone application
vibrating sieve stone are manufactured by introducing German technology, suit for screening of sandstone material for stone quarry, also for product classification for coal preparation, ore beneficiation, building material, electric power and chemical industry.
vibrating sieve stone technical data:
| Model | Screen Size (mm) | Layers | Mesh Size (mm) | Feeding Size (mm) | Capacity (t/h) | Power (kw) | Motor Model | REV (r/min) | Amplitude (mm) | Angle (ºC) | Machine Size (mm) |
| 2YK1237 | 1200×3700 | 2 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×2660 |
| 3YK1237 | 1200×3700 | 3 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×3140 |
| 2YK1548 | 1500×4800 | 2 | 5-50 | ≤400 | 50-208 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3060 |
| 3YK1548 | 1500×4800 | 3 | 5-50 | ≤400 | 50-250 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3540 |
| 2YK1848 | 1800×4800 | 2 | 5-80 | ≤400 | 50-260 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3060 |
| 3YK1848 | 1800×4800 | 3 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3540 |
| 2YK1860 | 1800×6000 | 2 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 6260×2950×3480 |
| 3YK1860 | 1800×6000 | 3 | 5-80 | ≤400 | 50-350 | 4-22 | Y180L-4/22 | 970 | 8 | 20 | 6260×2990×3960 |
| 2YK2160 | 2100×6000 | 2 | 5-150 | ≤400 | 100-500 | 4-22 | Y180L-4/22 | 730 | 6-8 | 20 | 6270×3410×3670 |
| 3YK2160 | 2100×6000 | 3 | 5-100 | ≤400 | 100-500 | 4-30 | Y200L-4/30 | 730 | 6-8 | 20 | 6270×3470×4100 |
| 2YK2460 | 2400×6000 | 2 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3770×3610 |
| 3YK2460 | 2400×6000 | 3 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3790×4100 |
