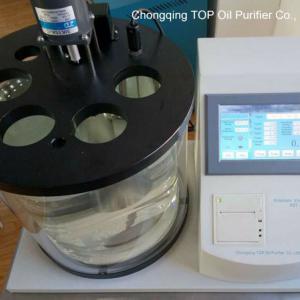

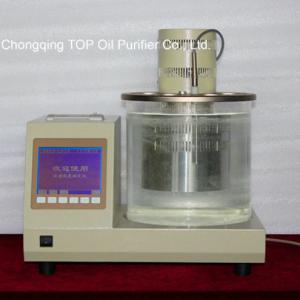

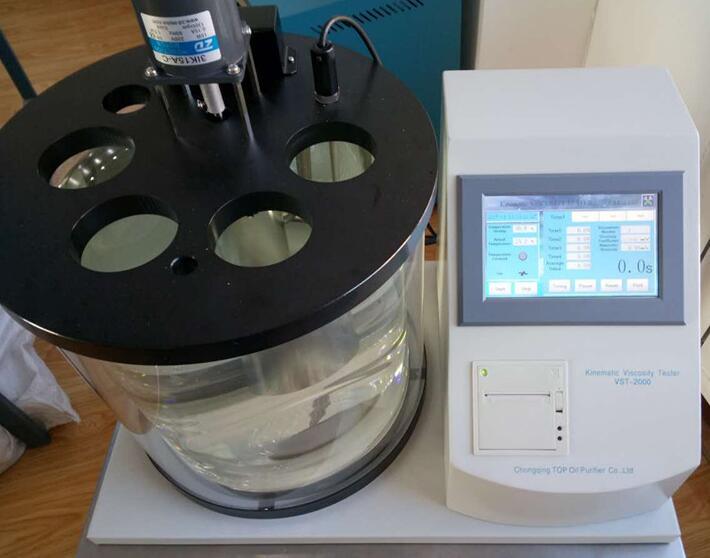

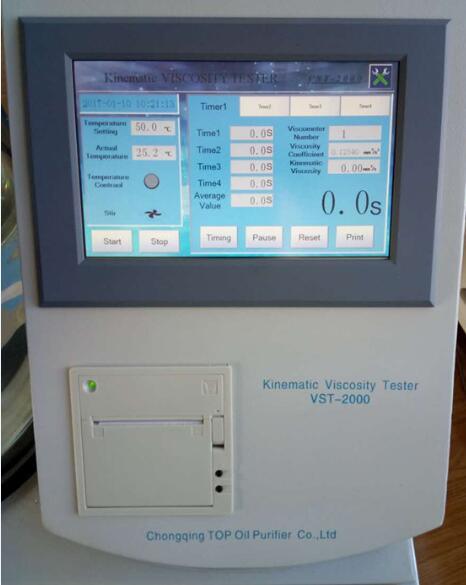

Lubricating Oil Kinematic Viscometer (VST-2000)
Product Application
The Determinator, applicable to GB26588, G1814, ASTMD445, IP71 and other standards, adopts advanced
SCM for control and large color LCD with operation tips, high speed thermal printer and has advantages of
auto-storage and auto-printing of testing results and uniform temperature of homoeothermic bathtub. It can be installed with four viscometers simultaneously for oil viscosity testing, and also can be high-viscosity homoeothermic waterbath for other testing.
Product Features
1. Adopts advance SCM for control with advantages of intelligent temperature control and large color LCD screen with menu for operation tips.
2. Adopts unique and advanced modular technology, which could test both oil of high-viscosity and low-viscosity.
3. Function of regularly indicating working conditions, including temperature, time, parameters and so on.
4. Equipped with ten-liter homoeothermic bathtub and organic glass-made stay-warm case outside, with advantages of uniform temperature inside bathtub and effective temperature control.
5. Equipped with stainless steel heater and components, anti-corrosion and durable, and ring-type daylight lamp for lighting, easy to observe
6. Capillarimeter clutch is three-point vertical type, with advantages of flexible and convenient operation and reliable grasp.
7. Functions of automatically calculating kinematic viscosity value and average value of testing results, printing and memorizing results.
8. Advantages of accurate testing, visualized display, auto-timing, auto-calculation and auto-printing results.
Technical Parameter
Our Major Testing Equipment:
1.Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5.Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6.Multi-functional Vibration tester model TYD-2000
7.Consolidation Point Determinator model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11.TAN-DELTA TESTER,10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13.Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
Product Application
The Determinator, applicable to GB26588, G1814, ASTMD445, IP71 and other standards, adopts advanced
SCM for control and large color LCD with operation tips, high speed thermal printer and has advantages of
auto-storage and auto-printing of testing results and uniform temperature of homoeothermic bathtub. It can be installed with four viscometers simultaneously for oil viscosity testing, and also can be high-viscosity homoeothermic waterbath for other testing.
Product Features
1. Adopts advance SCM for control with advantages of intelligent temperature control and large color LCD screen with menu for operation tips.
2. Adopts unique and advanced modular technology, which could test both oil of high-viscosity and low-viscosity.
3. Function of regularly indicating working conditions, including temperature, time, parameters and so on.
4. Equipped with ten-liter homoeothermic bathtub and organic glass-made stay-warm case outside, with advantages of uniform temperature inside bathtub and effective temperature control.
5. Equipped with stainless steel heater and components, anti-corrosion and durable, and ring-type daylight lamp for lighting, easy to observe
6. Capillarimeter clutch is three-point vertical type, with advantages of flexible and convenient operation and reliable grasp.
7. Functions of automatically calculating kinematic viscosity value and average value of testing results, printing and memorizing results.
8. Advantages of accurate testing, visualized display, auto-timing, auto-calculation and auto-printing results.
Technical Parameter
| Performance Standards | GB265-88, GB1814,ASTM D445,IP71, etc. |
| Capillary Viscometer | Conform to SH/T0173-92 Technical Conditions of Glass Capillary Viscometer Conform to JJG155 Verification Regulation of Routine Capillary Viscometer |
| Method of Display | 7 inch color LCD |
| Temperature Control Range | Arbitrary setting between room temperature and 150°C |
| Testing Range | Kinematic Viscosity:0.5~20000mm2/s Kinetic Viscosity:0.3~40000mPa.s |
| Temperature Control Accuracy | ±0.1°C |
| Timing Accuracy | ±0.1S |
| Timing Range | 0.1S-999.9S |
| Homoeothermic Bathtub | 300×300mm double layer |
| Printer | Thermal printer, high-speed and lower consumption, with 55 millimeter-wide printing paper |
| Temperature Testing Components | Precise imported platinum electric resistance |
| Stirring Speed | 1520Rounds/Min |
| Power(highest) | 1800W |
| Sample Installing Quantities | 4 pieces |
| Working Environment | Ambient Temperature: 15--35°C Ambient Humidity: <85% |
| Power Supply | 220V ac±10%50Hz±1Hz |
| Dimension(largest) | 560*370*520(L*W*H) |
| Weight | 20Kg |
