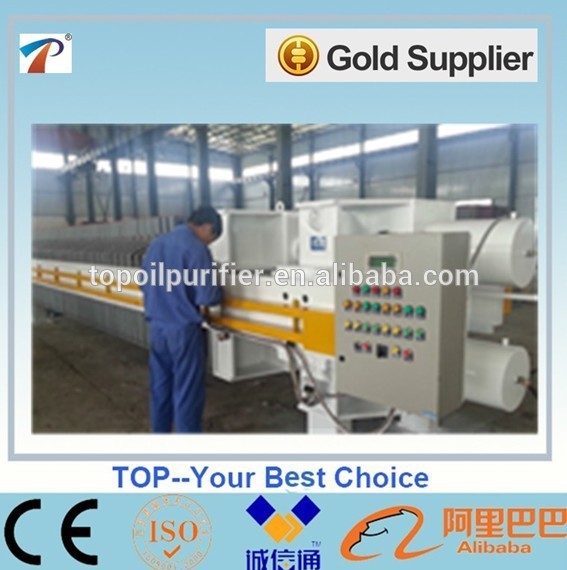

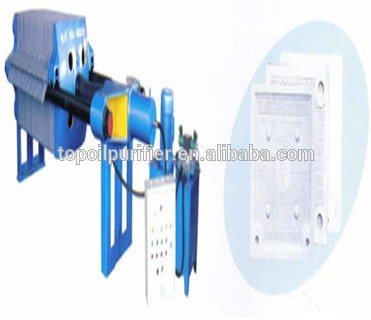

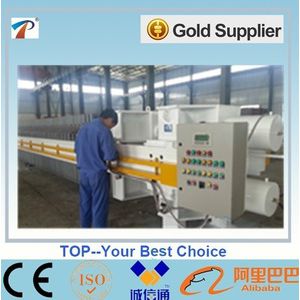

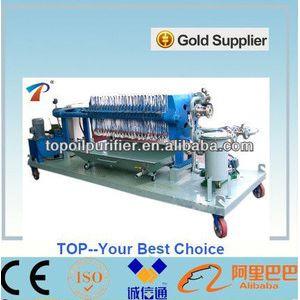

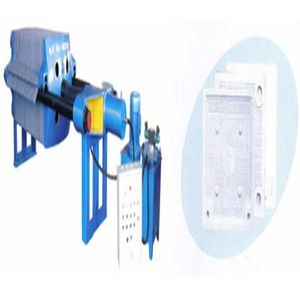

Series BAM Ppm Plate Hydraulic Waste Used Oil Plate Press Filter,Cooking Oil Plate and Frame Filter Press
Product Application
Filter press is usually used in all kinds of suspension liquids for separating solid and liquid, such as food,
environmental protection light industry, medicine, chemical industry, metallurgy, petroleum industry, etc.,
oil filter press, as the name suggests, is widely used in oil industry.
Oil filter press is important equipment in oil mill plant which is quite suitable for clearing and filtering the different plant rude-oil, also it could clear the waste water, waste cooking oil. Use the
smaller mesh filtering cloth, which could be used for clearing the biodiesel oil .
Product Features
Quick opening and closing of the hydraulic device with self-protecting.
Multi-hydraulic cylinders to distribute the closing force of oil filter press evenly and symmetrically.
Several feeding ports to decrease the filling and filtering time.
Long life-span oil filter press elements.
Special filtrate canal design.
Membrane technology to be used for secondary dewatering.
Cake blowing procedure to be used for further dewatering.
Core blowing procedure to be used to blow away the remainder materials in feeding ports.
Large cake discharge space to avoid filter cloth damage during cake fall.
Special cake discharge mechanism to realize automatically cake discharge in a short time.
Automatic control system.
Benefits
Dewatering solution to most process flows
Future expandability
Reduced labor
Long service life
Convenience and reliability
Technical Parameter
Model Specifications | Filtration area (m2) | Frame size (mm) | Flitch thickness (mm) | Plate number (pcs) | Frame number (pcs) | Volume filter room (L) | Dimensions (L x W x H) (mm) | Filter Pressure (Mpa) | Whole Weight (kg) | Foundation Size | |||
Q4/450-25 Q6/450-25 Q8/450-25 Q10/450-25 Q12/450-25 | 4 6 8 10 12 | 4500 X 450 | 25 | 9 14 19 24 29 | 10 15 20 25 30 | 51 76 102 127 152 | 1450*870*880 1700*870*880 1950*870*880 2200*870*880 2450*870*880 | 0.6 | 1100 1330 1550 1775 2000 | L | B | A | H |
1110 1360 1610 1850 2110 | 300 | 420 | 520 |
Technical Parameters of 630-hydraulic Clamping Iron Frame Filter Press 630-van Hydraulic Clamping Iron Van Filter
Model Specifications | Filtration area (m2) | Frame size (mm) | Flitch thickness (mm) | Plate number (pcs) | Frame number (pcs) | Volume filter room (L) | Dimensions (L x W x H) (mm) | Filter Pressure (Mpa) | Whole Weight (kg) | Foundation Size | |||
Y20/630-25 Y25/630-25 Y30/630-25 | 20 25 30 | 630 X 630 | 25 | 24 30 37 | 25 31 38 | 248 312 377 | 3300*1200*1100 3600*1200*1100 3900*1200*1100 | 0.6 | 4200 4900 3090 | L | B | A | H |
2490 2790 3520 | 500 | 520 | 820 |
Technical Parameters of 800-hydraulic Clamping Iron Frame Filter Press 800-van Hydraulic Clamping Iron Van Filter
Model Specifications | Filtration area (m2) | Frame size (mm) | Flitch thickness (mm) | Plate number (pcs) | Frame number (pcs) | Volume filter room (L) | Dimensions (L x W x H) (mm) | Filter Pressure (Mpa) | Whole Weight (kg) | Foundation Size | |||
Y40/800-25 Y50/800-25 Y60/800-25 Y70/800-25 | 40 50 60 70 | 800 X 800 | 25 | 30 38 46 54 | 31 39 47 55 | 496 624 752 880 | 3750*1380*1300 4200*1380*1300 4600*1380*1300 5050*1380*1300 | 0.5 | 7000 7800 9200 11800 | L | B | A | H |
2640 3080 3520 3920 | 500 | 710 | 870 | ||||||||||
Y40/800-30 Y50/800-30 Y60/800-30 Y70/800-30 | 40 50 60 70 | 800 X 800 | 30 | 30 38 46 54 | 31 39 47 55 | 595 749 902 1056 | 3820*1450*1300 4300*1450*1300 4780*1450*1300 5260*1450*1300 | 0.6 | 7600 9000 10350 11800 | 2910 3390 3870 4350 | 600 | 710 | 870 |
