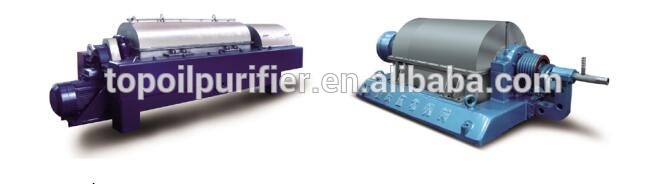

TOP High Quality Continuously Automatically Horizontal Spiral Unloading Settling Centrifuge,Oil Solid-Liquid Separation

1. Overview:

Horizontal spiral unloading settling centrifuge is a setting type centrifuge which can work continuously and automatically, and the feeding, separation, dehydration and unloading of materials can be operated continuously and automatically at a full speed. This machine is mainly used for solid-liquid separation of suspension having a solid phase granularity of a large range, low concentration and medium concentration, and can complete the solid phase dehydration, liquid phase separation,  liquid-liquid-solid separation, and particle size classification and other separation processes. As this machine has a strong adaptability to materials, it has a large application range. This machine is especially suitable for the separation of suspension having a solid phase granularity of 0.005-2 mm, concentration of 1-50%, temperature of 0-90°C, and greater solid phase proportion than liquid phase proportion. As the spiral unloading is adopted, the solid phase particle is damaged to a certain extent, the washing effect of the sediment is poor. So this machine is not suitable for separation of materials requested by the above two situation.

2. Main mode:

D series: introduced products when our company cooperate with the french  GUINARD company, having the following main specifications:

D1, D2, D3, D4, D5 and D6.

LW series: products developed and designed by our company in recent years, having the following main

specifications:

LW200, LW350, LW450, LW520, LW650, LW800 and LW1000.

WL series: old products of our company, having the following specifications:

WL200,WL350,WL450 and WL600.

The above products of each specification may refer to different products having a diameter of 2 to 4.2 according to separation requirements.

3. Application range:

Food: Animal fats; blood; beer yeast and cold slag; casein; clarified butter; coffee essence; corn wine residue; alcohol lees; drinking water treatment; fish meal; fish washing; fruit juice; pectin; lactose; gravy; molasses; mycelium; potato residue; potato protein; protein; sorbic acid; soybean powder; grain slag; starch; plant extracts; vegetable; vegetable juice; wheat starch; wine and beer.

Environmental protection: city sewage treatment; city drinking water treatment; industrial sewage treatment; waste oil and oil sludge treatment.

Chemicals: aluminum hydroxide; barium sulfate; bauxite; bentonite; calcium carbonate; calcium fluoride; calcium sulfate; carbide sludge; sodium hydroxide; cellulose derivatives; clay; cryolite; two terephthalic acid methyl ester; epoxy resin; fluorescent materials; graphite; gypsum; iron; iron oxide; kaolin; latex; lead oxide; lead sulfate; lime; hydrogen manganese oxide; mica; mineral oils; nickel hydroxide; paint; pharmaceutical intermediates; phosphoric acid phosphate; pigments; plastic products; derivatives; polyethylene; polystyrene; polypropylene; polyvinyl chloride; silicates; silicon dioxide; sodium chloride; and titanium oxide; calcium phosphate; salt; vitamin; Zinc Oxide; zinc; zinc sulfate.

Other: drilling fluid; Liquid manure.
