Tricanter 3-Phase Decanter Centrifuge for Palm Oil Processing

PRIMARY PARAMETERS

Model NO.

LWS

Pressure

Low Pressure

Condition

New

Application

Liquid-Liquid-Solid Separation

Operation

Automatic Continuous

Bearing

SKF, NSK as Optional

Trademark

Brand

Transport Package

Wooden Case

Specification

material

Origin

China

HS Code

8421192000

DETAIL DESCRIPTION

Three phase decanter centrifuge specialy used for separate sludge and water ,help get crude palm oil.

Product Description

Application

LWS plam oil centrifuge is suitable for plam oil dehydration and slag, after separating plam oil reach

national standard.

Reference standard

1. Main standard of the national machinery industry.

JB/T502-2004 "spiral discharge sedimentation centrifuge"

JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"

2. The national main standard

GB10894-89 "separation machinery noise sound power level measurement engineering method"

Structure

Plam oil centrifuge machines' structure:

1. drum;

2. screw pusher;

3. planetary gear differential;

4. base;

5. stainless steel cover;

6. absorber;

7. motor;

1.The integral design of the machine adopt international advanced type of structure design in recent years, m

otor puts beside, cover flat on flame structure, it causes that the machine maintenance is more convenient, low

noise, small vibration, easy installation.
2.Stainless steel cover adopts enclosed design, peculiar smell gas of the machine in the work is not be leaked.

It leads that the work environment satisfies the requirements.
3.Drum material adopts stainless steel 304.
4.Vibration system adopts drum high modulus of elasticity of absorbing vibration damping device. Compared to

previous models, the machine vibration is greatly reduced.
5.Electrical control adopts double frequency automatic control system

6.The other main components adopt joint venture or wholly-owned or domestic famous brand products.

Technical Parameters

Model	Diameter (mm)	Bowl Speed (rpm)	G-force	Capacity (m3/h)	Main Power(kw)	Weight(kg)	Overall Size(L × W × H)(mm)
LWS420	420	3300	2550	5~20	30/11	3610	3331 × 990 × 1066
LWS450	450	3300	2739	4~50	30/11	3655	4000 × 1120 × 1239
LWS500	500	3200	2860	5~45	55/11	4213	4489 × 1160 × 1350
LWS540	540	2800	2366	5~50	45/15	5290	4587 × 1285 × 1368

PS: The above parameters will be subject to the final technical agreement.

Disc centrifuge separator specially used for separate water and impurities from palm oil,get clear palm oil.

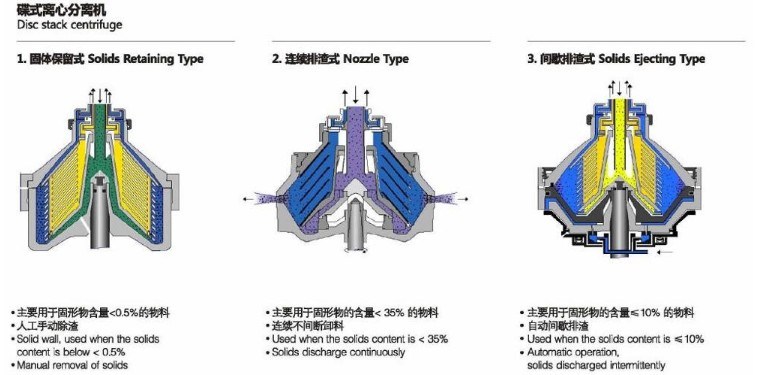

The disc separator or centrifuge is specially used for the 2 phase and 3 phase separation. The two phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of soild at the same time .

Product Application

OIL centrifuge disc separator is one of gravity separation equipment. This machine has the features such as compact, high-efficiency separation smooth and steady in running, sealed material, reliable performance, and etc. It can realize full-automatic control and be widely used in the process of liquid-liquid separation, solid-solid separation, clarifying , concentraction, and etc.

This machine products are widely used in degum, de-soap and water washing in vegetable oil refinery. It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-soild separation of ligh industry, chemical industry, medicine and food industry.

Centrifuge machine Main Parameter

Model	Bowl Speed(rpm)	Capacity(Per Hour)	Running Load(Watts)	Dimensions, Overall (mm)
Width	Front-to-Back	Height
250	8500	500-800	4.0	850	850	1200
270	7300	1000	4.0	950	950	1200
300	7150	1500	5.5	1025	1300	1300
360	7056	2000-3000	7.5	1500	1100	1500
400	7038	3000	7.5	1500	1100	1550
500	6600	5000-8000	15.5	1772	1500	1855
550	6200	8000-15000	18.5	1970	1560	1970
730	4900	50000-80000	55.0	2580	1980	2340

Main function

Vegetable oil:

Colza Oil, Cottonseed oil, Corn oil, Palm oil , soybean oil, peanut oil, Rice oil, sesame oil, sunfloweroil and so one

Animal oil: Fish oil, or other animal fat .

Main Features

1) Easy in installation and maintation.
2) Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time.

3) Include automatically alarm

4) With PLC control and LED touch screen

5) Heavy -phase centripetal pump adopts European advanced electric positioner control
6) Running in high speed, operating stability,low noise

7) Stability outlet pressure, large regulating sphere and operating easily.

8) Self-discharging , self-cleaning
