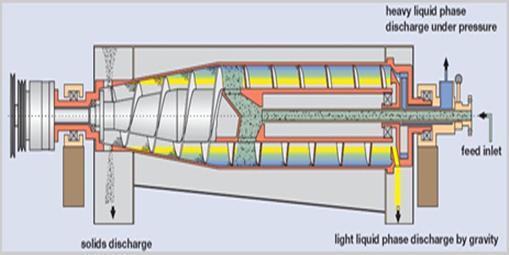

LWS series three phase decant centrifuge is used for solid-liquid-liquid separation, namely one kind of solid phase (with largest specific gravity ) and two kind of immiscible liquid phase with different density. The conveyor rotates in the same direction as the bowl, but at a different speed, the material is fed into the bowl through a stationary feed pipe. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl, while two liquid phases forming light liquid phase layer and heavy liquid phase layer. Scroll conveys the solids towards the conical end of the bow, and out of centrifuge from solid discharge port. The light liquid phase then is discharged out continuously through the overflow port at the large end of the bowl, and the heavy liquid phase will be discharged out through the centrifugal pump large end of the bowl, thus realizing the three-phase separation.
Main applications
Industrial and municipal wastewater treatment
Oil & gas drilling mud/fluid control
Washing, classification and dewatering of amylum and starch
Mycelium separation from zymotic fluid of antibiotic
Dewatering of soybean and wheat protein
Dewatering of fish power and fish meet
Dewatering of grains
Clarification and extraction of fruit juice
Clarification and purification for animal and vegetable oil
Production and extraction of olive oil, palm oil, avocado oil
Separation and purification for coal tar
Grading of kaolin and graphite
Classification and dewatering for dyestuff and pigment
Float wash of extractive coal and dewatering of coal mud
Classification and dewatering for minerals
Vertical base design and symmetrical arrangement of motor and bowl assembly, that ensures stable operation and less vibration.
Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Dual motor drive makes bowl speed and conveyor speed adjustable.
Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.
Optionla planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment.
Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
JG type rubber vibration isolator, no need of anchor bolts.
Wear protection
1.Scroll with welded hard facing or spray coating
2.Scroll Inlaid with tungsten carbide tiles
3.Bowl inner wall welding with high strength wear resistant strips
Solid discharge port
1.Tungsten carbide or ceramic bushing
2.Simple structure and easily replacement
3.LOW maintenance cost
Parameters
| Models | Basket Dia (mm) | L/D Ratio | Bowl Speed (r/min) | G-force | Main Motor Power (kW) | Weight (kg) | Dimension (L*W*H) (mm) |
| LWS355*1460 | 350 | 4.17 | 4000 | 3100 | 22 | 2020 | 3235*1010*1029 |
| LWS420*1680 | 420 | 4 | 3500 | 3080 | 30-37 | 3500 | 3459*1320*1303 |
| LWS530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 4200 | 4054*1650*1431 |
Hydraulic scroll driving system
The hydraulic conveyor driving is a closed driving system, including the centrifuge bowl and conveyor. It is independent from the bowl driving. The hydraulic conveyor driving is different from other mechanical conveyor driving system which relies on bowl rotating to generate differential speed. The hydraulic driving device is directly mounted on the conveyor assembly, and is driven by hydraulic pump aggregate. Therefore it is independent from the bowl driving system.
Operating principle
The hydraulic conveyor gearbox is connected with the bowl of the decanter centrifuge, both of them rotates in high speed. The spline shaft on the gearbox rotor is connected with the conveyor, and rotates in different speed driven by the high pressure oil, that's we call the differential speed. The conveyor gearbox is connected with the hydraulic pump by flexible hose, so there is no need of gearbox between the bowl and conveyor. Conveyor torque gives pressure to the hydraulic system. With the action of such pressure, the different speed can by adjusted by adjusting the oil supply and flow rate.
Main features
No gear driving device required
No damage to the parts due to overload
Free of torque vibration (fluttering)
Direct readable torque and differential speed △n
△n independent from bowl speed
Minimum moisture content of sludge
High clarification of liquid phase
Power for solid conveying varying from solid loads
Dewatering varying from changes in △n
"Constant" moisture content of sludge
Non-sensitive to feeding quantity, minimize blockage
Safety pin design ensuring safe operation
