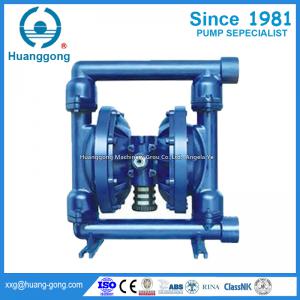

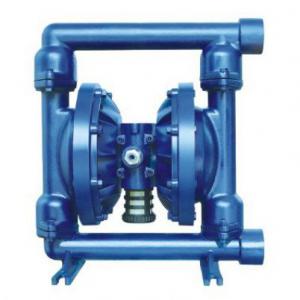

We supply Pneumatic diaphragm pumps and Electric diaphragm pumps.
Flux: 8LPM~500LPM, Discharge pressure: Up to 6bar.
Application
1, Poisonous, combustible and volatilizable liquids.
2, Strong acid, strong alkali liquids with corrosion
3, Tanker truck, bilk plant, load and unload of oil products
4, Pickle, fruit pulp, mashed potatoes, chocolates, etc
5, Paint, rubber, pigment and adhesives
6, Various ceramic pulp, grouting, mortar and slurry
7, Various latex, organic solvents, stuffing
8, Stripping of oil carrier (pump dirty water and residual oil)
9, Common hop, thin paste of yeast power, syrup and molasses
10, Special liquid

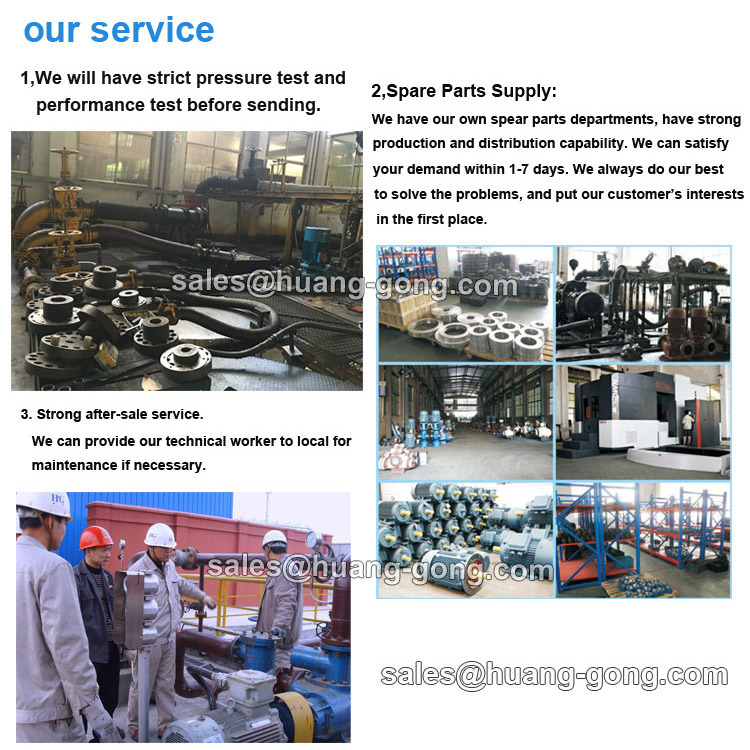

After sale service
One year Warranty time. Within warranty period, for non-artificial quality problem, we will repair and replace spare parts for free. Except for normal wear and tear of parts.

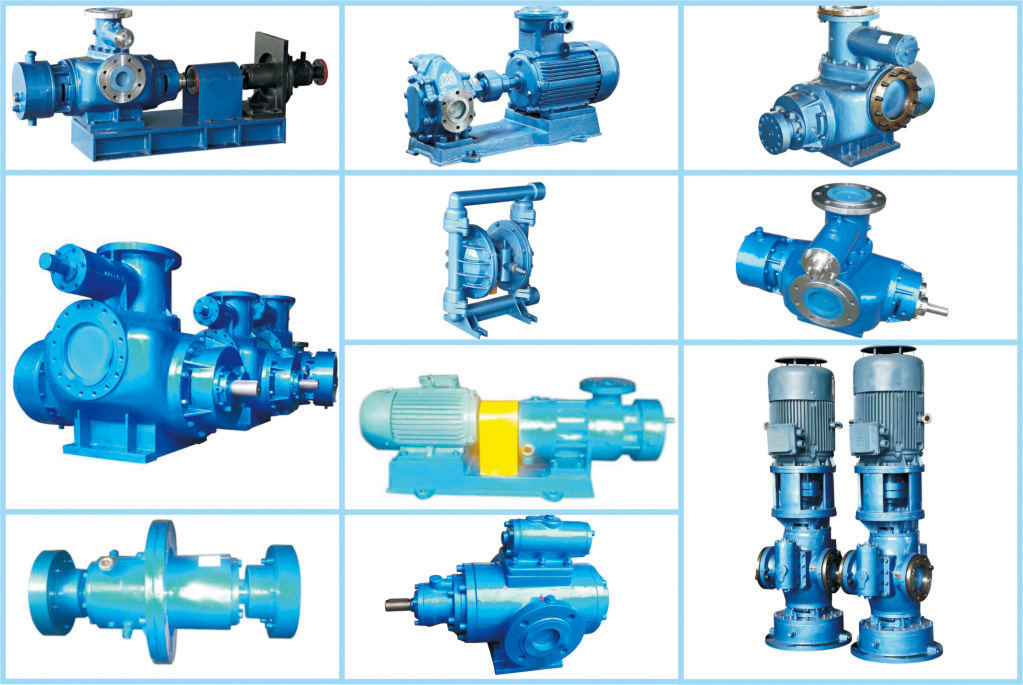

We can provide all kind of pump
centrifugal pump
screw pump
vortex pump
gear pump
diaphragm pump
hydraulic deep well cargo pump
electric deep well cargo pump
hand pump
bulkhead seal
tank washing machine
Flux: 8LPM~500LPM, Discharge pressure: Up to 6bar.
Application
1, Poisonous, combustible and volatilizable liquids.
2, Strong acid, strong alkali liquids with corrosion
3, Tanker truck, bilk plant, load and unload of oil products
4, Pickle, fruit pulp, mashed potatoes, chocolates, etc
5, Paint, rubber, pigment and adhesives
6, Various ceramic pulp, grouting, mortar and slurry
7, Various latex, organic solvents, stuffing
8, Stripping of oil carrier (pump dirty water and residual oil)
9, Common hop, thin paste of yeast power, syrup and molasses
10, Special liquid
| Model | Capacity (m3/h) | Outlet Pressure (MPa) | Vacuum degree (m.H2O) | The biggest pellet allowed (mm) | The biggest air feed pressure (MPa) | Atmospheric engine capacity (m3/min) |
| QBY-10 | 0.8 | 0.6 | 5 | 1 | 0.7 | 0.3 |
| QBY-15 | 1 | 0.6 | 5 | 1 | 0.7 | 0.3 |
| QBY-25 | 2.4 | 0.6 | 7 | 2.5 | 0.7 | 0.6 |
| QBY-40 | 8 | 0.6 | 7 | 4.5 | 0.7 | 0.6 |
| QBY-50 | 12 | 0.6 | 7 | 8 | 0.7 | 0.9 |
| QBY-65 | 16 | 0.6 | 7 | 8 | 0.7 | 0.9 |
| QBY-80 | 24 | 0.6 | 7 | 10 | 0.7 | 1.5 |
| QBY-100 | 30 | 0.6 | 7 | 10 | 0.7 | 1.5 |
After sale service
One year Warranty time. Within warranty period, for non-artificial quality problem, we will repair and replace spare parts for free. Except for normal wear and tear of parts.
We can provide all kind of pump
centrifugal pump
screw pump
vortex pump
gear pump
diaphragm pump
hydraulic deep well cargo pump
electric deep well cargo pump
hand pump
bulkhead seal
tank washing machine
