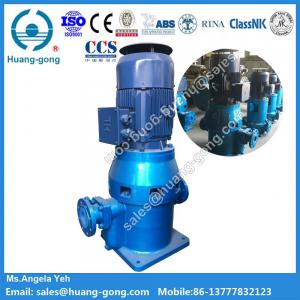

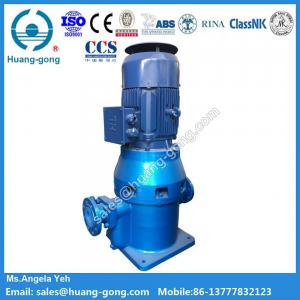

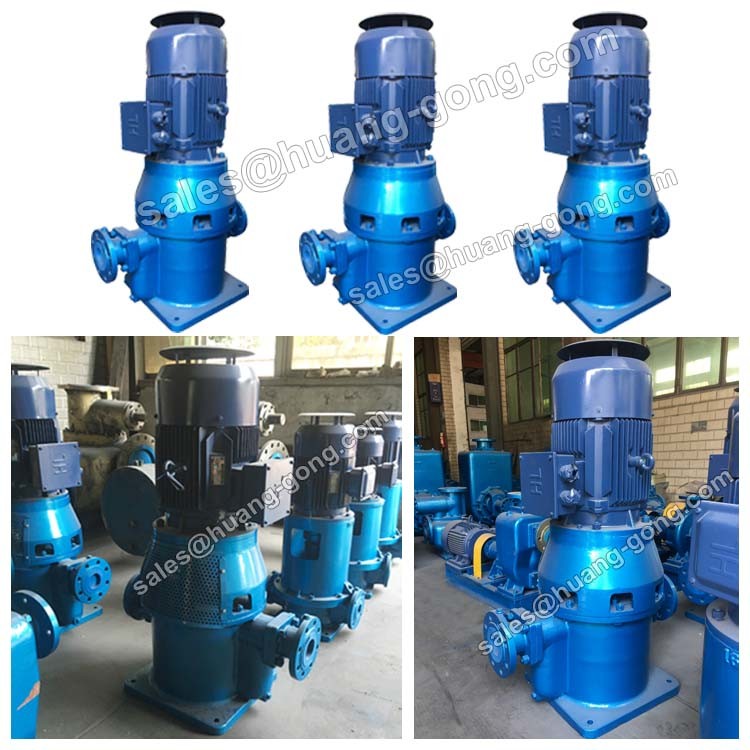

CLZ Series Marine Vertical Self-priming Centrifugal Pump/ Deep Suction Water Pump
Brief introduction
CLZ series marine vertical self-priming centrifugal pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 70 degrees. Fresh water and other non-eroding liquid.
Viewing from the motor end downward, this series pump rotates clockwise.
Model Explanation
For the Model 65CLZ--5A
65 stand for pump inlet nominal diameter mm
CLZ stand for marine-type vertical self-priming pump
5 stand for Intergral value of 1/10 of the specific speed of pump
A stand for impeller for the first time to improve. (B for the second time)
Main Technical parameter:
| Type | Capacity m 3 /h | Head m | Speed r/min | Motor power Kw | NPSH m | Weight kg |
| 125CLZ-5/2 | 51/51 | 30/65 | 1450 | 22 | 3.5 | 518 |
| 125CLZ-7/2 | 80/40 | 25/55 | 18.5 | 3.5 | 524 | |
| 125CLZ-9/2 | 116/58 | 24/61 | 22 | 4.1 | 548 | |
| 125CLZ-9/2A | 141/62 | 25.5/59 | 22 | 4.0 | 540 | |
| 125CLZ-9/2B | 112/54 | 15/52 | 18.5 | 4.1 | 526 | |
| 125CLZ-10/2 | 110/50 | 20/35 | 15 | 4.2 | 488 | |
| 150CLZ-6/2 | 95/95 | 36.5/86 | 55 | 4.9 | 806 | |
| 150CLZ-6/2A | 95/70 | 32/80 | 37 | 4.9 | 724 | |
| 150CLZ-17/2 | 149/95 | 27.5/77 | 45 | 5.1 | 778 | |
| 150CLZ-17/2A | 141/95 | 16.5/60.5 | 37 | 5.1 | 736 | |
| 150CLZ-15/2 | 199/182 | 33/79 | 90 | 5.0 | 1190 | |
| 150CLZ-12/2 | 199/99 | 23.5/70 | 45 | 5.1 | 772 | |
| 150CLZ-7/2 | 124/120 | 33.5/77 | 55 | 4.8 | 928 | |
| 150CLZ-7/2A | 215/120 | 23.5/65 | 45 | 4.9 | 840 | |
| 150CLZ-7/2B | 199/108 | 17/60.5 | 45 | 4.9 | 792 | |
| 200CLZ-13/2 | 257/124 | 24/68.5 | 55 | 4.3 | 936 | |
| 250CLZ-9/2 | 348/174 | 22/71.5 | 75 | 4.6 | 1080 | |
| 250CLZ-9/2A | 265/166 | 14.5/62 | 75 | 5.2 | 916 | |
| 250CLZ-19/2 | 389/182 | 22/70 | 75 | 5.4 | 1110 |
BEFORE ENQUIRYING PLS ADVISE MAIN SPECIFICATION DATAS AS FOLLOWING:
Head, Capacity, Medium,RPM, Material, Voltage, etc.
After sale service
One year Warranty time. Within warranty period, for non-artificial quality problem, we will repair and replace spare parts for free. Except for normal wear and tear of parts.
We can provide all kind of pump

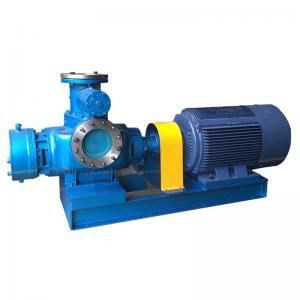

- Screw pump
- Centrifugal pump
- Gear pump
- Vortex pump

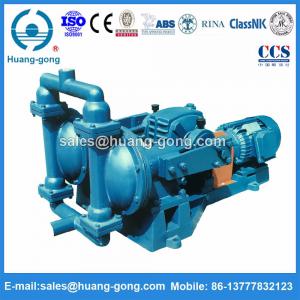

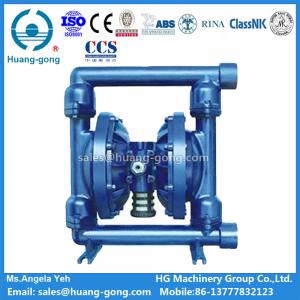

- Diaphragm pump
