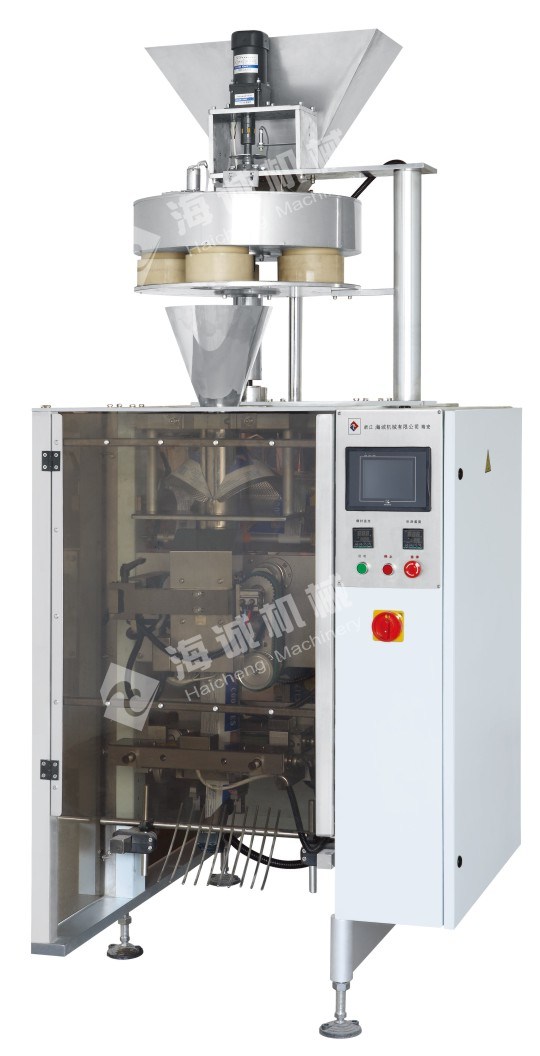

DXD-420A Vertical Form Fill Seal Machine
Application:
Automatic VFFS packing machine of granule, powder or liquid in formed pouch for the food, pharmaceutical, chemical and other industries.
Features:
1. The machine can automatically complete the products conveying, measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within ± 1º C.
6. Selected electrical and pneumatic components from reliable international manufacturer.
Optional Parts
1. Date code printer
2. Gusset pouch forming device
3. Hole puncher
4. PE sealing device
Optional Measuring Filler:
1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )

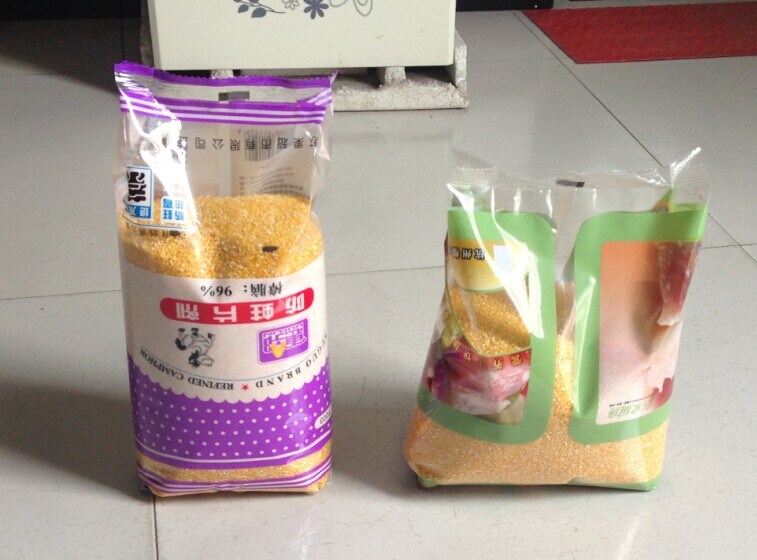

Package samples:
Gusset bag

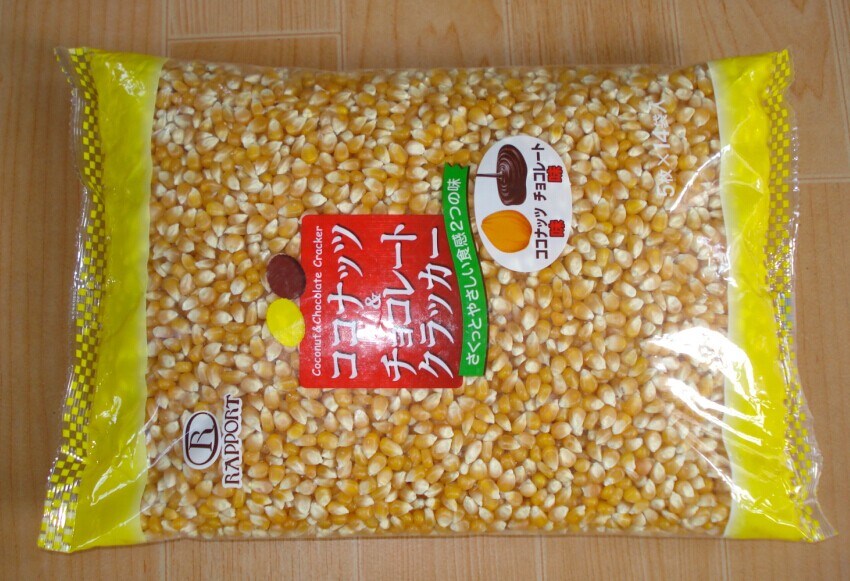

Pillow bag
Application:
Automatic VFFS packing machine of granule, powder or liquid in formed pouch for the food, pharmaceutical, chemical and other industries.
Features:
1. The machine can automatically complete the products conveying, measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within ± 1º C.
6. Selected electrical and pneumatic components from reliable international manufacturer.
Optional Parts
1. Date code printer
2. Gusset pouch forming device
3. Hole puncher
4. PE sealing device
Optional Measuring Filler:
1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )
Package samples:
Gusset bag
Pillow bag
| Packing speed | 15-70bags/min |
| Bag forming size | (L) 80 -300mm (W) 80 -200mm |
| Filling range | 100-1500g |
| Packing material | OPP/CPP PET/PE Laminated Film or PE etc. |
| Film roll width | 180 -420mm |
| Air consumption | 0.36m3 /min 0.6Mpa |
| Film thickness | 0.04 -0.08mm |
| Power supply | AC220V 50/60Hz 3.5KW |
| Machine dimension | (L) 1750 x (W) 1050 X (H) 2600mm |
| Machine weight | 750 KG |
