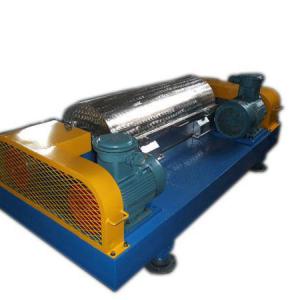

Decanter Centrifuge for Fluid Mud

SpecificationsDrilling Mud Decanter Centrifuge:1. Drilling Mud2. Automatic continuous operation3. PLC control4. Inverter drivingLW Drilling Mud Continuous Horizontal Decanter Centrifuge: Drilling Mud Decanter Centrifuge, Continuous centrifuge& decant

Technical Feature

  • Dalian, China
  • 200sets/Year
  • L/C, T/T, Western Union
  • Separating Plant
  • Waste Water
  • Sedimentation Type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$30~300

PRIMARY PARAMETERS

Model NO.
LW
Pressure
Low Pressure
Condition
New
Capacity
0.5-50m3/H
Dimension(L*W*H)
2400*1860*950mm
Voltage
as Requirements
Control
PLC
Certification
CE&ISO&SGS
Trademark
HJ
Transport Package
Wooden Case
Specification
SGS, ISO
Origin
Liaoning China

DETAIL DESCRIPTION

Decanter Centrifuge for Fluid Mud
Specifications
Drilling Mud Decanter Centrifuge:
1. Drilling Mud
2. Automatic continuous operation
3. PLC control
4. Inverter driving
LW Drilling Mud Continuous Horizontal Decanter Centrifuge: Drilling Mud Decanter Centrifuge, Continuous centrifuge& decanter centrifuge

Drilling Mud Solution
LW drilling mud decanter centrifuges are designed specifically to remove unwanted solids and fine particles from virtually all kinds of used frilling mud, including those based on water/synthetics and conventional oil-based drilling fluids.

Drilling muds are based on water, oil pr polymer with a composition of various additives such as flocculents, surfactants, detergents and more. By means of modern drilling mud system includes decanter centrifuge, cutting dryers, shakers, etc, everything brought into the mud by the frilling process will be separated. The clarified mud will be returned to the drilling rig.

Working Principle
Separation takes place in the horizontal bowl equipped with a scroll conveyor. The drilling mud is feed into the bowl through a stationary inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of bowl. The conveyor rotates in the same direction as the bowl, but a different speed, thus moving the solids towards the conical end of the bowl.

Design Feature
Vertical base design and symmetrical arrangement of motor and bowl assembly, that ensures stable operation and less vibration.
Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.

Dual motor drive makes bowl speed and conveyor speed adjustable.
Optional planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment.
Multiple safety protection: Bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
 Type Diameter of the drum(mm)Length of the drum(mm) speed rotation of the drum(r/min) separation factor capacity (M3/H)main motor(KW) auxiliary motor(KW) Dimension(L*W*H) Machine weight(Kg) Formation of differential mechanism
 LW250*900 250900 5400 4000 1-5  114 1800*1200*600 1050 Planet gear
 LW360*1200 3601200 4200 3550 3-12 15 7.5 2600*1580*1040 2100 Planet gear
 LW360*1500 3601500  42003550 3-14 22 7.5  2900*1600*10402600 Planet gear
 LW420*1750 4201750 4000 3750 6-30 37/45 7.5/11 3120*1580*1070 3500 Planet gear
LW420*2100  4202100 4000 3750 6-35 45 11/18.5 3450*1580*1070 4100 Planet gear
 LW500*2000 5002000 3800 4000 10-40 45/55 11/18.5 3600*2300*1400 6500 Planet gear
 LW500*2500 5002500 3800 4000 12-45 55/75 15/18.5 4100*2300*1400 7200 Planet gear
 LW550*1900 5501900 3200 3154 13-50 45/55 15 3400*1810*1110 4600 Planet gear
 LW550*2400 5502400 3200 3454 13-55 55/75 18.5 3900*1810*1110 5600 Planet gear
 LW650*2000 6502000 2650 2500 15-65 55/75 18.5 4000*2300*1400 7100 Planet gear
 LW450*1800 4501800 4000 4028 10-35 45 18.5 4400*1350*1460 4200 Planet gear
 LW450*2100 4502100 4000 4028 10-40 45 18.5 4700*1350*1460 4600 Planet gear
 LW500*2200 500 2200 38004039 15-45 55 22 4400*1400*1480 5000 Planet gear
 LW500*2550 500 25503800 4039 15-45 75 22 4700*1400*1480 5500Planet gear
 LW550*2200 5502200 3200 3151 18-55 55 22 4500*1500*1500 5300 Planet gear
 LW550*2600 5502600 3200 3151 18-60 75 22 5000*1500*1500 7500 Planet gear
 LW650*2200 6502200 2650 2553 20-65 75 22 4700*650*1650 7600 Planet gear
 LW650*2600 6502600 2650 2553 20-70 90 37 5100*1650*1650 9100 Planet gear
 LW720*2000 7202000 2540 2600 25-75 90 37 4700*1730*1750 11000 Planet gear
 LW720*2500 7202500 2540 2600 25-80 132 37 5200*1730*1750 12800 Planet gear
 LW800*2000 8002000 2000 1790 35-100 132 45 4750*1800*1830 14000 Planet gear
 LW1000*2000 10002000 1800 1812 40-120 250 45 4800*2000*2000 17800 Planet gear
