Screw Conveyor Decanter for Coconut Milk Clarification

Screw Conveyor Decanter for Coconut Milk Clarification   Features: Decanter centrifueg for coconut milk with high performance can be adjusted to suit individual requirements by varying:1. Bowl speed to ensure the exact relative centrifugal force r

Technical Feature

  • Dalian, China
  • 100sets
  • T/T
  • Centrifuge
  • Decanter Centrifuge Coconut Milk
  • Sedimentation Type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
LW
Condition
New
Inner Diameter
450mm
Length
1800mm
Speed
2800rpm
Centrifugal Force
1976g
Motor Power
37kw
Max.Discharge Capacity
3m3/Hr
Capacity
4-25m3/Hr
Weight
2500kg
Dimension
3320*1700*1130mm
Trademark
Hongji
Transport Package
Non-Fumigation Wooden Case
Specification
LW400
Origin
Liaoyang

DETAIL DESCRIPTION

Screw Conveyor Decanter for Coconut Milk Clarification
   Screw Conveyor Decanter for Coconut Milk Clarification

Features:

Decanter centrifueg for coconut milk with high performance can be adjusted to suit individual requirements by varying:
1. Bowl speed to ensure the exact relative centrifugal force required for optimized separation.

2. Differential speed, for optimized balance between liquid clarity and solids discharge capacity.

3. Pond depth in the bowl for optimized balance between liquid clarity and solid dryness.

Application:

Decanter centrifueg for coconut milk is widely used in industries as municipal and industrial waste water treatment, food processing, pharmaceuticals and chemicals, etc.

1. Solid phase dehydration: dehydration effect for processing materials of solid particles.

2. Particle size classification: used in the removal of material of large diameter solid particles.

3. Liquid clarification: used for removing solid particles in the suspension liquid are clarified.

Working Principle:

Decanter centrifueg for coconut milk is  place in a horizontal cylindrical bowl equipped with a scroll conveyor. The processing material is fed into the bowl through a stationery inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.

Model
Diameter
(mm)

Bowl speed
(rpm)

G-force

Capacity
(m3/h)

Motor power
(kw)

Weight
(kg)

Overall dimension
(L*W*H) (mm)

2-PHSE DECANTER CENTRIFUGE
LW250250550034930.2-215/410202500*650*760
LW355A355400031751-1018.5/7.520352765*920*1060
LW355B355400031751-1518.5/7.521223065*920*1060
LW355C355400031751-2522/7.522223365*920*1060
LW420A4203000211310-3055/1546004080*1100*1420
LW420B420360030423-1530/7.551653331*990*1066
LW4504503300273910-2037/1127394000*1120*1239
LW500500320028605-4555/1144004489*1160*1350
LW5405402800236615-5045/1552904587*1285*1368
LW6206203200355515-60Hydraulic, 9080004650*2010*1200

Structure Drawing :
Screw Conveyor Decanter for Coconut Milk Clarification

Our company Mode LW series decanter centrifuge can apply for various waste water or oil , liquid treatment .
The solid bowl centrifuge decanter can be used for the pre-treatment for the algae biomass for the disk separator or tubular separator thus it effective higher the disk centrifuge or tubular separator capacity performance .
The  Stainless steel sludge dewatering machine is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.

Our service :
All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Approximately 80 to 90 % of the oil is recovered.
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor

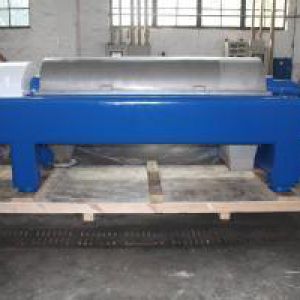

Assemble Parts :

Screw Conveyor Decanter for Coconut Milk Clarification

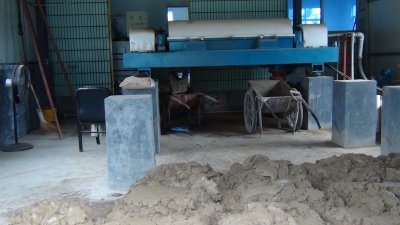

Working Site :
Screw Conveyor Decanter for Coconut Milk Clarification


Packaging & Shipping :
Screw Conveyor Decanter for Coconut Milk Clarification
If you have any questions about the machine ,please don't hesitate to contact with me ,thanks .
